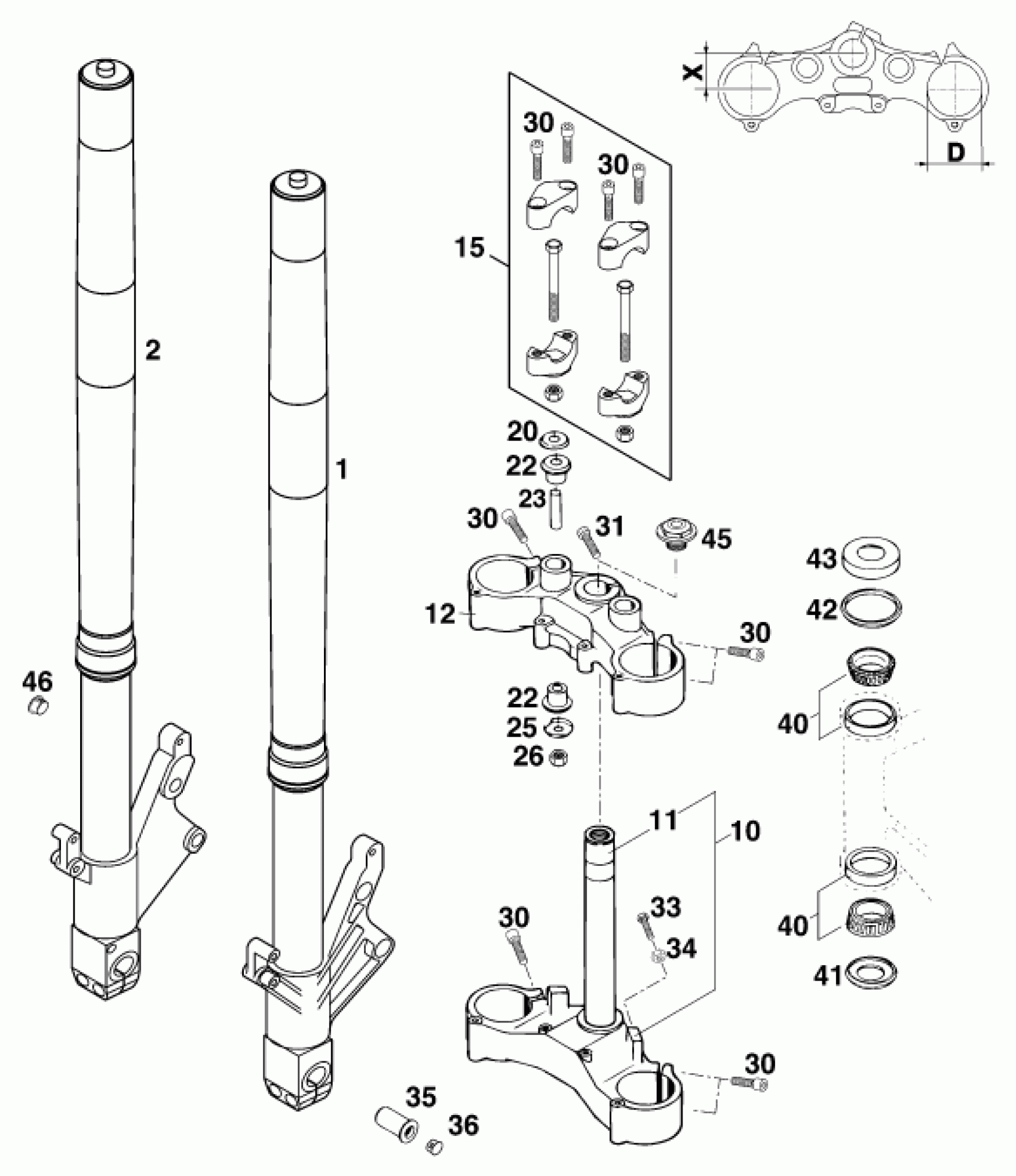

KTM 640 DUKE II - LIME <2000> FRONT FORK, TRIPLE CLAMP Diagram

#

Description

Price

1

FORK LEG L/S WP 640 DUKE '99

0518T780LS

Unavailable

2

FORK LEG R/S WP 640 DUKE '99

0518T780RS

Unavailable

10

BOT.TRIPLE CLAMP X=35MM/D=54MM

58701032000

Unavailable

11

FORK TUBE L=244 '91

50101033100

Unavailable

12

TOP TRIPLE CLAMP X=35MM/D=54

58701034000

Unavailable

15

SUPPORTKIT F.HANDL.DUKE,ADV'97

58402001050

Unavailable

20

washer 10.5x32x2

56401042000

Unavailable

22

rubber bushing

56401040000

Unavailable

23

SPACER TUBE 10,2X12X44

56401041100

Unavailable

25

WASHER 10,5X31

56401142000

Unavailable

26

SELF LOCKING NUT DIN0985-M10

0985100003

Unavailable

30

AH SCREW DIN0912-M 8X35

0912080353

Unavailable

31

AH SCREW DIN0912-M 8X25

0912080253

Unavailable

33

HH SCREW DIN0933-M 7X25

0933070253

Unavailable

34

HEXAGON NUT DIN0934-M 7

0934070003

Unavailable

35

AXLE NUT M17 X 1,5 DUKE'94

58309082000

Unavailable

36

PLASTIC CAP 3/8'' 2663

58301098000

Unavailable

40

TAPERED ROLLER BEARING CPL.

54201081000

Unavailable

41

O-RING SUPPORT W. SEALING LIP

54601084100

Unavailable

42

STEARING HEAD GASKET TOP

54601184000

Unavailable

43

STEERING HEAD COVER

54201086000

Unavailable

45

STEER.HEAD SCREW M20X1,5 WS=27

50301036000

Unavailable

46

PLASTIC CAP 3/8'' 2663

58301098000

Unavailable
