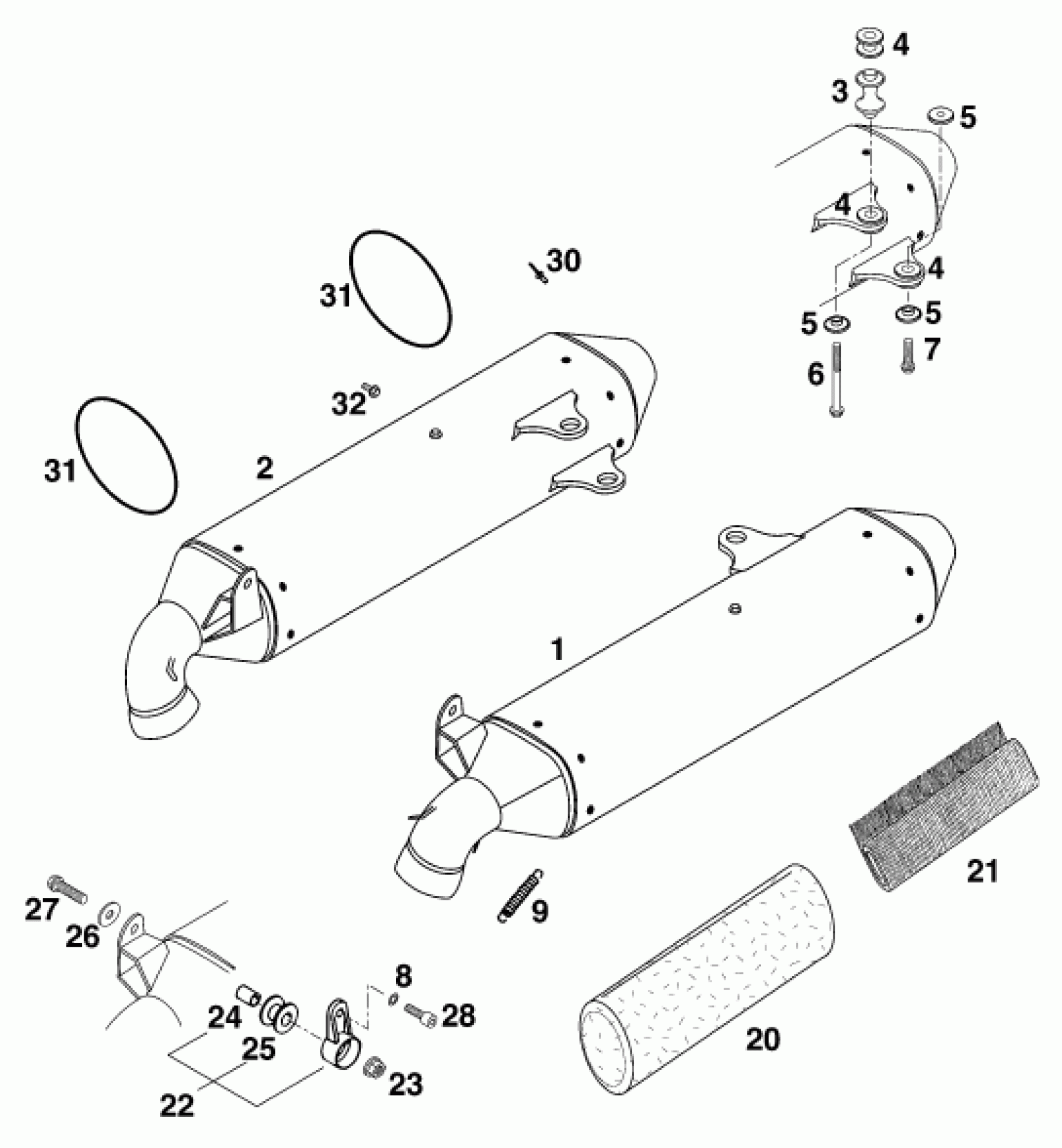

KTM 640 DUKE II - LIME <2000> MAIN SILENCER Diagram

#

Description

Price

1

SILENCER L/S DUKE USA 2000

58705070100

Unavailable

2

SILENCER R/S DUKE USA 2000

58705071100

Unavailable

3

CLAMP NUMBER PLATE CARRIER '99

58708015050

$10.36

4

EXHAUST BRACKET RUBBER BLACK

54605068000

$6.54

5

BUSHING 7,5X12X28X7,8 '96

54605069000

$6.07

6

HH COLLAR SCREW M 6X65 WS=8

0015060653

$2.05

7

HH COLLAR SCREW M 6X25 WS=8

0014060253

$2.05

8

SPRING WASHER DIN0137-B 6

0137060000

Unavailable

9

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

$4.57

20

STUFFINGYARN 350 GRAMM '99

58705078350

$78.53

21

STUFINGYARN 80 GRAMM '99

58705078080

Unavailable

22

SIL.BRACKET CPL. LONG 8MM

54305065444

$15.10

23

Self locking nut M8 10.9

54310086200

$3.08

24

Spacer bushing 8.4X12X16

56505069000

$4.11

25

damp. component silicone grey

54305068100

$8.31

26

WASHER DIN9021-A 8,4

0021080003

$1.49

27

HH COLLAR SCREW M 8X30 WS=10

0015080303

$3.08

28

AH SCREW DIN0912-M 6X20

0912060203

$2.05

30

DUMMY RIVET 4,8X 8,0 NIRO

0011480802

$3.08

31

O-RING 82,14X3,53 SILICONE

0770223601

$8.87

32

SPECIAL SCREW M 5,0X10

0009050103

$2.05
