TANK, SEAT

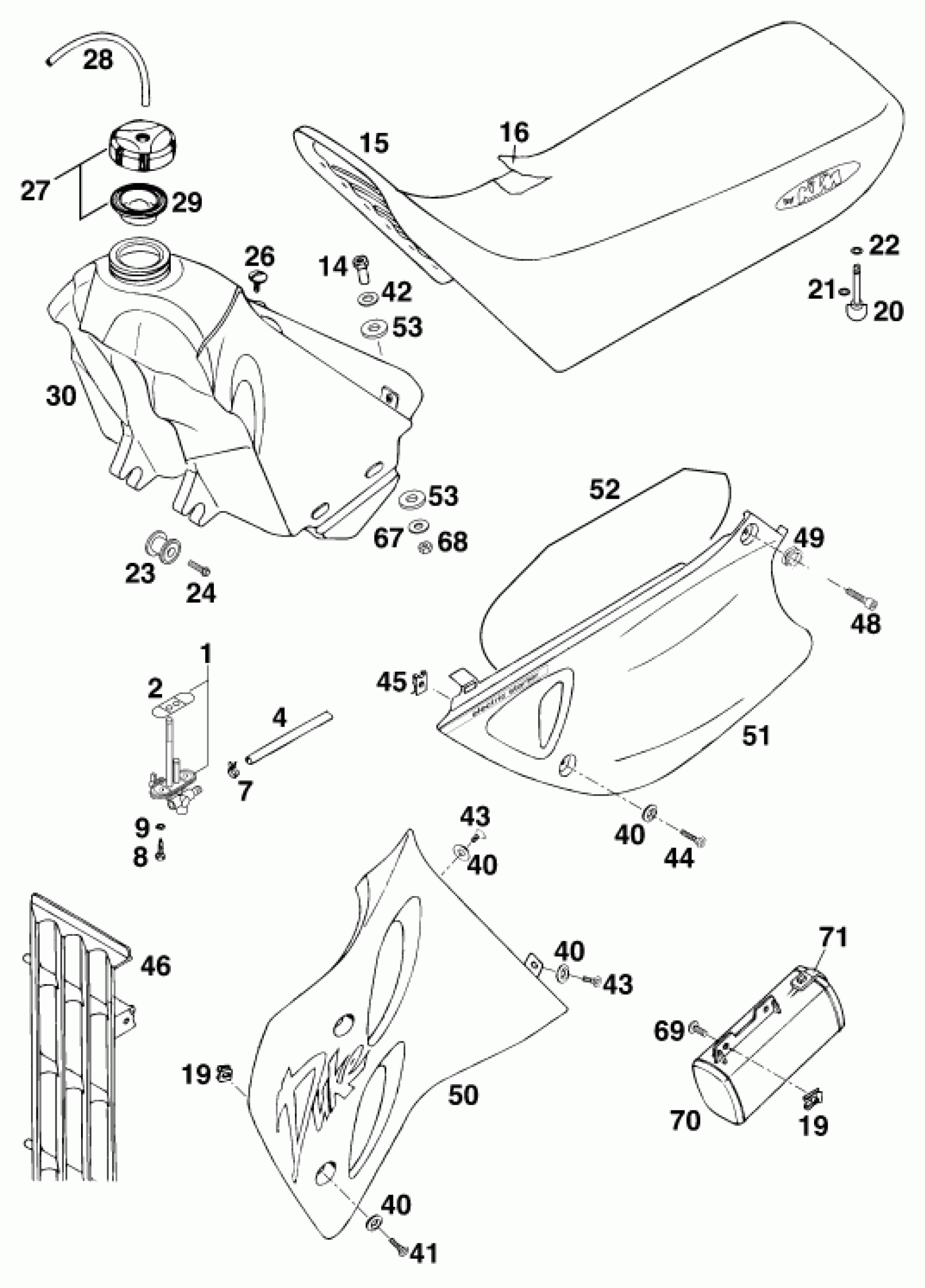

KTM 640 DUKE-E <1998 TANK, SEAT Diagram
#
0
SIDE COVER R/S DUKE '98
5830804210037
Unavailable
0
SPOILER R/S CARBON DUKE '98
5833502910037
Unavailable
1
FUEL COCK MIKUNI CK-84 '96
58307005100
$93.21
2
GASKET FUEL COCK MIKUNI
58307106100
$6.82
4
FUEL HOSE VITON 6X1,5 PER/M
58307016001
Unavailable
7
YDNAC-CLAMP 10107 10MM
58007117000
$3.08
8
HH COLLAR SCREW M 6X12 WS=8
0015060123
$3.08
9
CU-SEAL RING DIN7603-6X10X1
0603061001
$2.05
14
SPECIAL NUT M8
58307014000
$6.26
15
SEAT ORANGE/BLACK DUKE '98
58407040300
Unavailable
16
SEAT COVER ORANGE/BLACK
58407040350
Unavailable
19
SNAP-NUT HOLDER M6 KP142
50235033300
$4.11
20
QUICK FASTEN BOLT '96
58407044000
$15.70
21
SAFETY RING PLASTIC
58407045000
$2.05
22
SAFETY RING STEEL
58407046000
$1.59
23
TANK BUSHING CPL. 12 X 34 X 25
58307113250
$10.20
24
HH COLLAR SCREW M 6X25 WS=8
0015060253
$3.08
26
OVAL HEAD SCREW M6X15
58007044000
$4.35
27
TANK CAP CPL. LARGE
56007008144
$30.72
28
FUEL HOSE VITON 6X1,5 PER/M
58307016001
Unavailable
29
GASKET FOR TANK CAP
56007009100
$6.38
30
GASTANK 11,3 LITER NYLON '97
58307013500
$371.95
40
SPECIAL WASHER 7X12,5X20 BLACK
58308045000
$4.11
41
FLAT H.SCREW DIN7991-M6X20
0991060203
$2.05
42
WASHER 10,5 X 25 X 1,5
58307019000
$2.05
43
FLAT HEAD SCR. DIN7991-M 6X16
0991060163
$2.05
44
FLAT HEAD SCREW DIN7991-M 6X25
0991060253
$1.49
45
clip nut M6
54603048100
$4.11
48
AH SCREW DIN0912-M 6X30
0912060303
$2.05
49
* RUBBER RING 16 X 22 X 7
58312112000
Unavailable
50
SPOILER L/S CARBON DUKE '98
5833502810037
Unavailable
51
SIDE COVER L/S DUKE '98
5830804110037
Unavailable
52
HEAT PROTECTOR
58308041050
$12.86
53
INSOLATE WASHER 12X28X3
51005067100
$2.05
60
TOOL SET 620/640 DUKE '97
58429099100
Unavailable
67
WASHER DIN9021-A 8,4
0021080003
$1.49
68
Hexagon nut DIN934 M8
0934080003
$2.05
69
HH COLLAR SCREW M 6X15 WS=8
0014060153
$3.08
70
TOOL BOX CPL. '92
58012058000
$35.48
71
RUBBER FOR TOOL BOX '92
58012058050
$6.98
