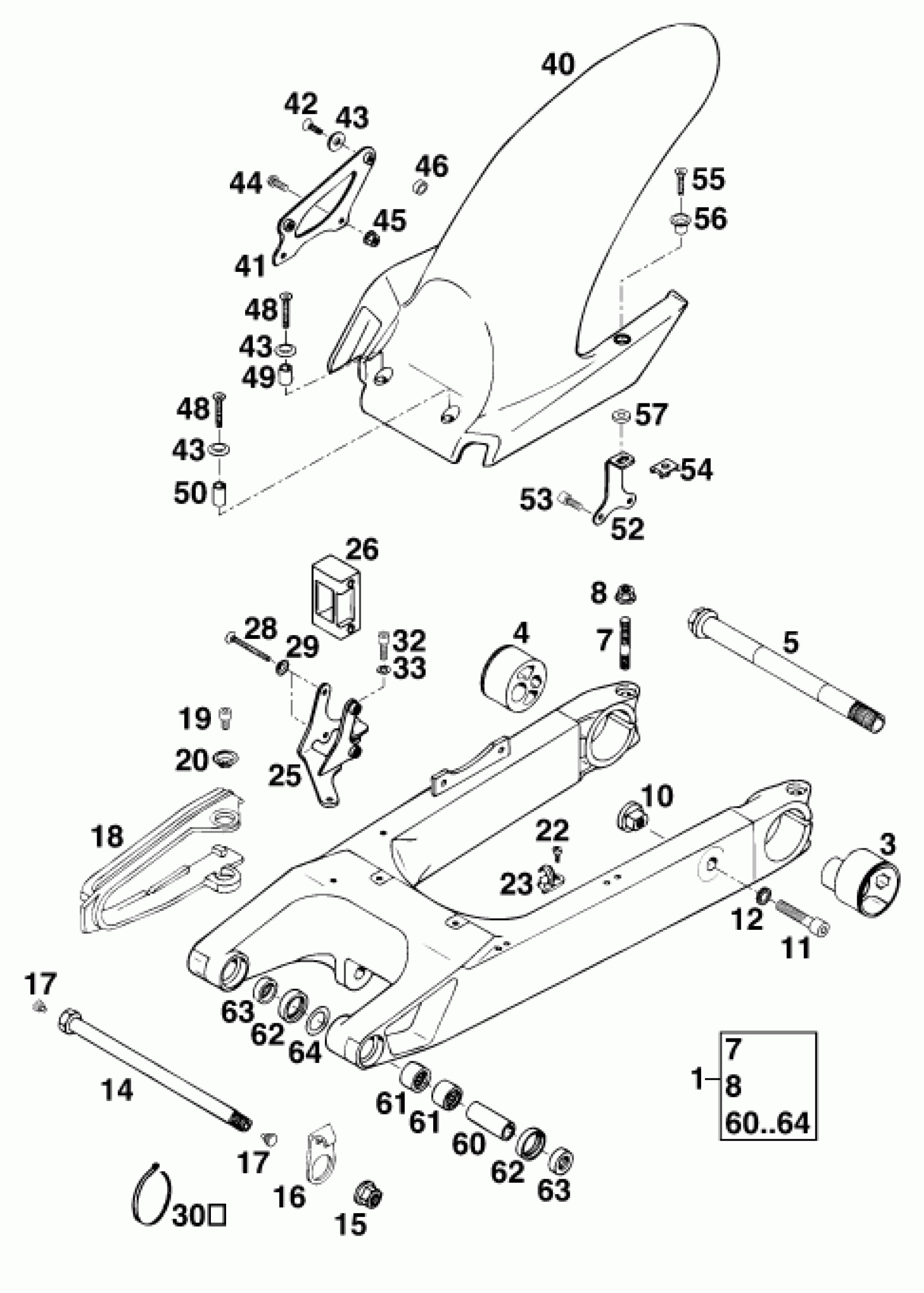

KTM 640 DUKE-E <1998 SWING ARM Diagram

#

Description
Price

1

58303230044

Unavailable

3

ECCENTRICS L/S '94

58303030011

$65.56

4

ECCENTRICS R/S '94

58303130011

$52.11

5

WHEEL SPINDLE REAR L=232MM '94

58310085000

$38.91

7

STUD DIN0835-M10X45

0835100456

$4.35

8

COLLAR NUT M10 WS=13

54630044000

$1.49

10

BRAKE CARRIER SUPPORT

58313050000

$14.35

11

AH-SCREW SELF LOCK M10X45

58313051000

Unavailable

12

PAIR OF WASHERS M10 NORDLOCK

50233041100

$4.11

14

54603014000

Unavailable

15

Self locking nut M14x1.5 WS19

54603015000

$5.51

16

BRAKE HOSE GUIDE '89

50230211000

$3.98

17

PLASTIC CAP SFL10

54403135000

$2.05

18

CHAIN SLIDING GUARD DUKE'94

58307073000

$26.83

19

AH SCREW DIN0912-M 6X12

0912060123

$3.08

20

BUCKET

72210079000

$3.00

22

SPECIAL SCREW M 5,0X10

0010050103

$2.05

23

RETAINING CLAMP FOR BRAKE HOSE

54611076000

$2.05

25

BRACKET CHAIN GUIDE DUKE

58307068000

$41.00

26

CHAIN GUIDE DUKE'

51007066400

$24.19

28

FLAT HEAD SCREW DIN7991-M 6X50

0991060503

$4.11

29

WASHER 6MM

40006006000

$1.49

30

Cable tie 200/4.6mm black

44011076200

Unavailable

32

AH SCREW DIN0912-M 6X20

0912060203

$2.05

33

WASHER DIN0125-A 6,4

0125060003

$1.49

40

WHEEL COVER REAR DUKE'94

58308015000

Unavailable

41

BRACKET FOR FENDER '94

58303230058

Unavailable

42

FLAT H.SCREW DIN7991-M6X20

0991060203

$2.05

43

SPECIAL WASHER 7X12,5X20 BLACK

58308045000

$4.11

44

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

45

SELF LOCKING NUT M6

56509064000

Unavailable

46

BUSHING 8.2 X 12 X 6

74003021000

$3.08

48

FLAT HEAD SCREW DIN7991-M 6X30

0991060303

$2.05

49

DISTANCE SLEEVE 7 X 11 X 17

58308020100

Unavailable

50

DISTANCE SLEEVE 7 X 11 X 20

58308020000

Unavailable

52

BRACKET FENDER L/S '94

58303230057

Unavailable

53

AH SCREW DIN0912-M 6X16

0912060163

$1.49

54

clip nut M6

54603048100

$4.11

55

FLAT HEAD SCREW DIN7991-M 6X30

0991060303

$2.05

56

WASHER WITH COLLAR 20X13X7

58308047000

Unavailable

57

STEEL WASHER 6,4X17X3

50232050001

$5.23

60

BUSHING SLEEVE 15X20X38,75

50203081700

$17.20

61

NEEDLE BUSH HK 2012

50203097000

$15.51

62

radial shaft seal 25x32x7

0760253270

$6.63

63

BUCKET F.SHAFTSEALRING 15X25X9

54603090000

$12.43

64

STOP DISK 22,2X31,7X1

54603036000

$3.08
