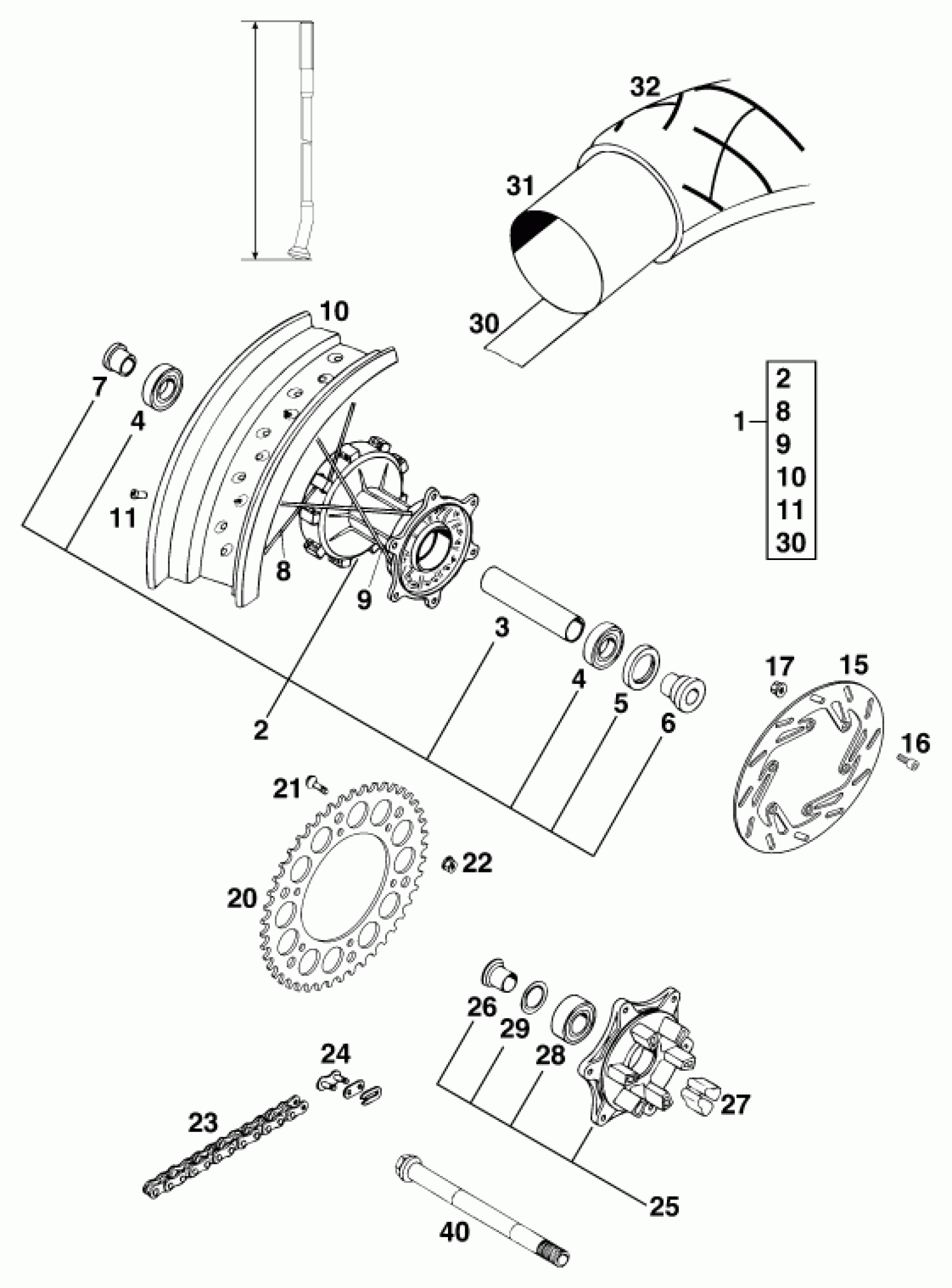

KTM 640 DUKE-E <1998 REAR WHEEL Diagram

#

Description

Price

1

58310001144

Unavailable

2

58310010044

Unavailable

3

BEARING SPACER TUBE L=98,3MM

54610411100

Unavailable

4

Grooved ball bear. 6205-2RSHC3

0625062052

$30.85

5

SHAFT SEAL RING 32X52X7 B

0760325272

$16.54

6

BUSHING FOR HUB

54610016000

$32.90

7

BUSHING FOR REAR DAMPED HUB

54610416300

$20.09

8

SPOKE M5X199-16G 17''

58310171100

$3.48

9

SPOKE M5X186-26G 17''

58310071100

$3.48

10

RIM REAR 4,25X17'' AKRONT

58310070000

Unavailable

11

SPOKE NIPPLE M5-TA (8X21MM)

58309072000

$2.05

15

BRAKE DISK REAR D=220MM

58310060000

Unavailable

16

AH SCREW DIN6912-M 6X16

0984060163

$2.05

17

SELF LOCKING NUT M6

56509064000

Unavailable

20

REAR SPROCKET 38-T

58310051038

$64.97

20

REAR SPROCKET 42-T

58310051042

Unavailable

20

REAR SPROCKET 40-T

58310151040

Unavailable

21

SPROCKET SCREW-AH M 8X26

54510052000

Unavailable

22

54310086000

Unavailable

23

50010065100

Unavailable

23

X-R.CHAIN 5/8X1/4''/M W.LINK

50010065101

Unavailable

24

MASTER LINK 5/8X1/4'' X-RING

50010066100

$13.27

25

SPROCKET SUPPORT CPL.

58310050044

Unavailable

26

BUSH. F.SPROCKETSUPPORT L=25MM

54610417300

$17.38

27

Rubber damping block 91

54610459000

$8.03

28

GR. BALL BEARING 3205B-2RSRTNG

0625032057

$74.67

29

SEAL WASHER 3205 AV

54610018000

$9.34

30

rim tape 17"

58309073000

$15.04

31

TUBE 17''

58410075000

$37.02

32

58310074300

Unavailable

40

WHEEL SPINDLE REAR L=232MM '94

58310085000

$38.91
