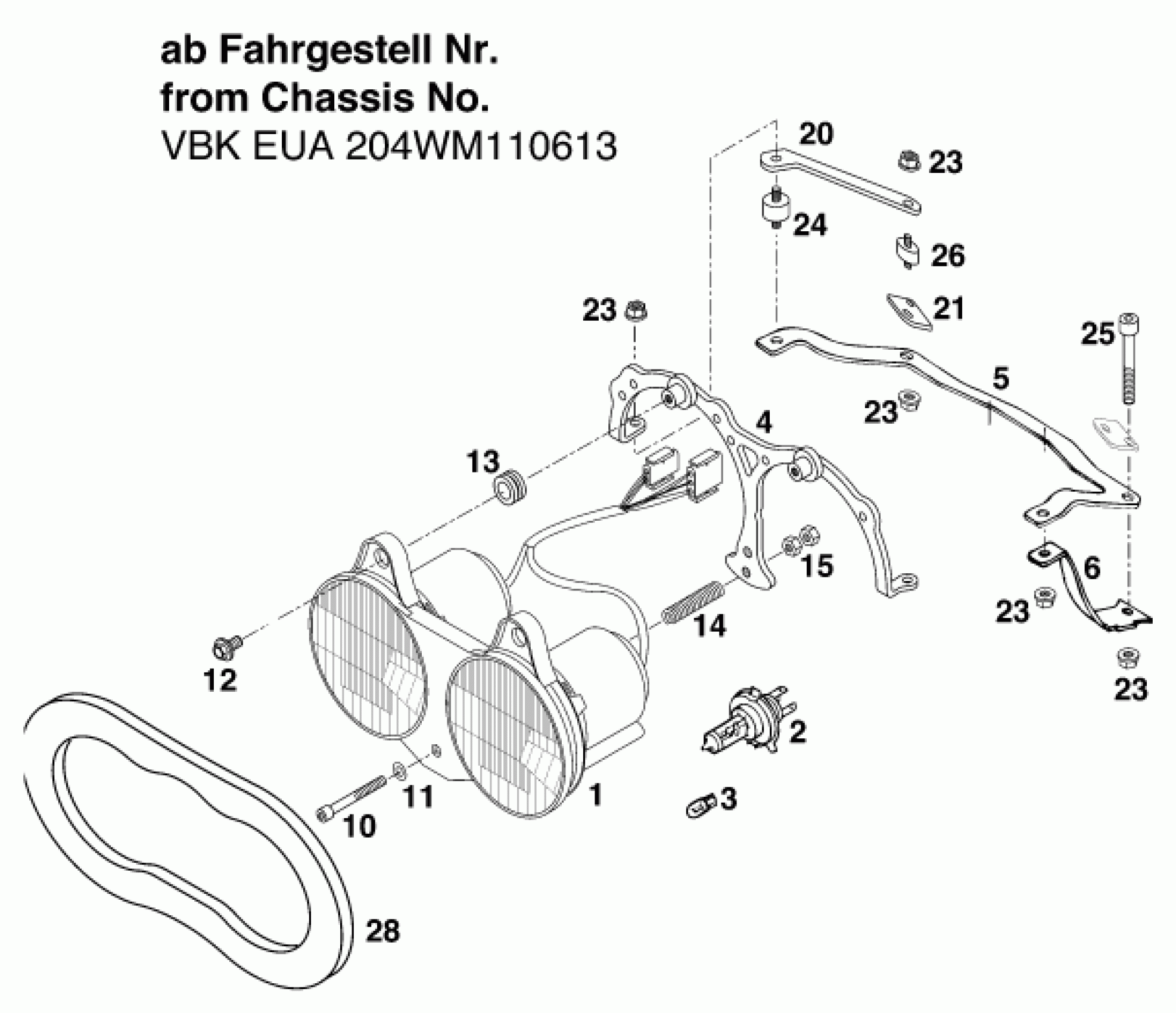

KTM 640 DUKE-E <1998> NEW PARTS Diagram

#

Description

Price

0

HEADLIGHT SUPPORT R/S BOTTOM

58311147001

Unavailable

1

HEAD LIGHT TRIOM CPL. '96

58414001000

Unavailable

2

BULB HS1 12V 35/35W WHITE

54611038012

Unavailable

3

BULB 12V 5W (W2,1X9,5D)

49011435000

Unavailable

4

58311045200

Unavailable

5

HEADLIGHT SUPPORT TOP

58311047000

Unavailable

6

HEADLIGHT SUPPORT L/S BOTTOM

58311147000

Unavailable

10

* AH SCREW DIN0912-M 5X45

0912050453

Unavailable

11

WASHER DIN0125-A 5,3

0125050003

Unavailable

12

HH COLLAR SCREW M 6X10 WS=8

0014060103

Unavailable

13

RUBBER GROMMET 11 X 19 X 9 '96

58414019000

Unavailable

14

SPRING 9 X 11 X 39 FOR TRIOM

58414020000

Unavailable

15

HEXAGON NUT DIN0934-M 5

0934050003

Unavailable

20

BRACKET FOR TRIOM HEAD LIGHT

58311047051

Unavailable

23

SELF LOCKING NUT M6

56509064000

Unavailable

24

RUBBER GROMMET 20X15-M6X18 (2)

58414012000

Unavailable

25

AH SCREW DIN0912-M 6X55

0912060553

Unavailable

26

RUBBER GROMMET 20X15-M6X10 (2)

54335031000

Unavailable

28

HEAD LIGHT COVER 10MM TRIOM

58311014000

Unavailable
