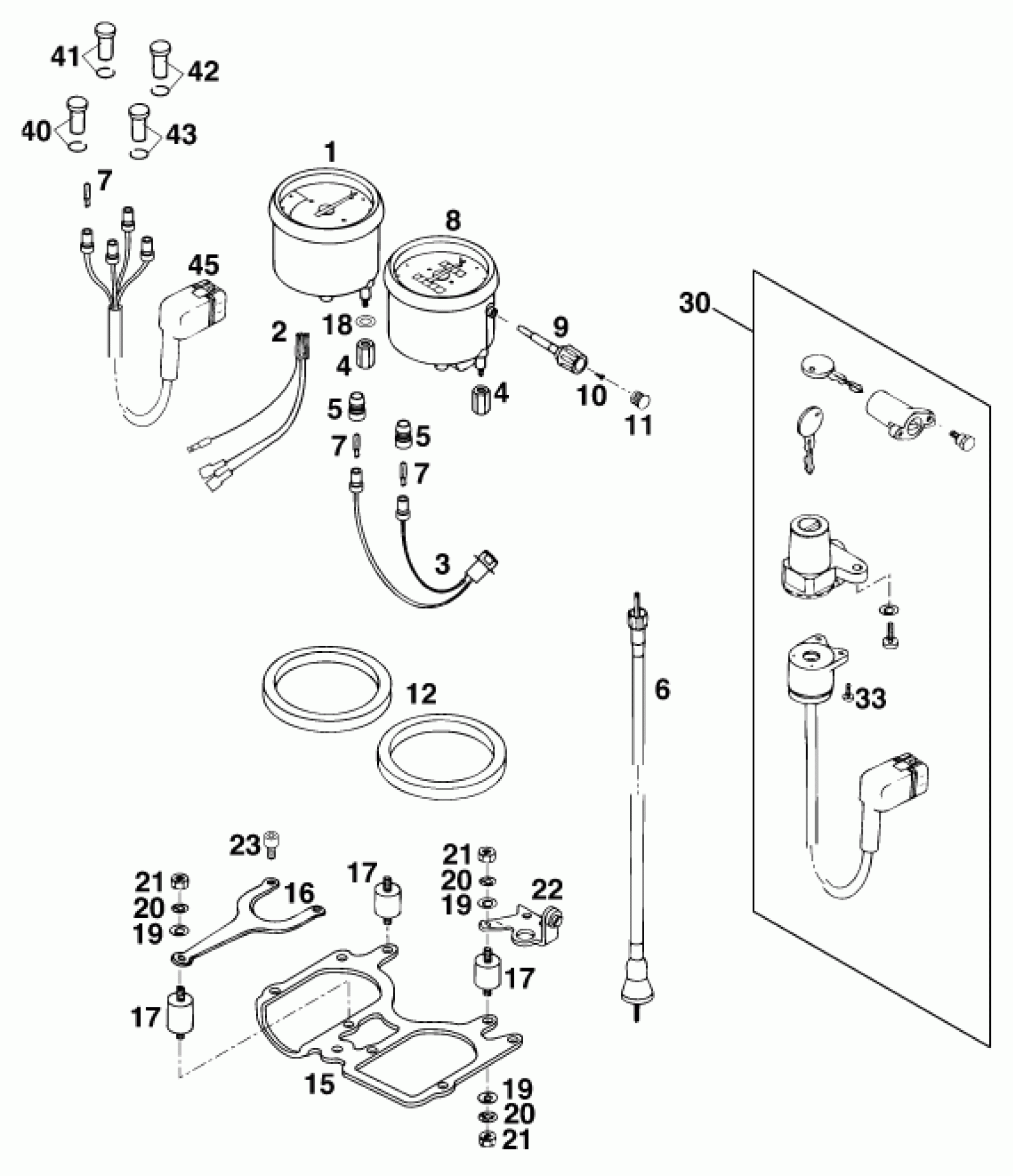

KTM 640 DUKE-E <1998 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description

Price

0

FLASHER SUPPORT R/S DUKE'94

58311121100

Unavailable

1

* TACHOMETER 10000 RPM ´96

58311065100

Unavailable

2

CABLE FOR TACHOMETER '97

58311065150

$12.36

3

INSTRUMENT LIGHTS 12V

58311029100

Unavailable

4

HEXAGON NUT M5X15 WS=8

58311053000

Unavailable

5

REDUCTION RUBBER

58311088100

$1.77

6

*SPEEDOMETER CABLEM12/12 845MM

58311188000

Unavailable

7

BULB 12V 1,2W (W2X4,6D)

49111425000

$2.05

8

* SPEEDOMETER KMH DUKE'94

58311068100

Unavailable

8

SPEEDOMETER MILES DUKE'96

58311068300

$107.54

9

TRIPMETER RESET KNOB

58311052060

$2.27

10

OVAL H.SCREW DIN7984-M 2X 5

0984020051

$1.49

11

PLASTIC CAP 3/8'' 261

58301098100

Unavailable

12

FOAM RUBBER RING 81x97x10

58311054000

$2.34

15

INSTRUMENTS BRACKET DUKE'98

58311051100

$23.80

16

BRACKET FOR INSTRUMENT BRACKET

58311051050

Unavailable

17

RUBBER GROMMET 20X25-M6X10 (2)

54335031200

Unavailable

18

WASHER DIN0134- 7,4

0134070003

Unavailable

19

WASHER DIN0125-A 6,4

0125060003

Unavailable

20

TOOTH LOCK WASH. DIN6797-A 6,4

0797060003

Unavailable

21

Hex. nut DIN 934 M6

0934060003

$1.49

22

FLASHER SUPPORT L/S DUKE'94

58311021100

Unavailable

23

AH SCREW DIN0912-M 6X12

0912060123

$3.08

30

* LOCK SET CPL. DUKE'94

58311066044

Unavailable

33

FLAT HEAD SCREW DIN7985-M 4X12

0985040123

$1.49

40

H.BEAM INDICATOR LIGHT BLUE'98

58011021300

$6.63

41

NEUTRAL INDIC. LIGHT GREEN '98

58011023300

$6.72

42

TEMPERATURE WARN. LIGHT RED'98

58011022400

$6.54

43

FLASHER INDICAT.LIGHT GREEN'98

58011024300

$6.72

45

INDICATOR LIGHT WIRING DUKE'98

58411078100

$30.21
