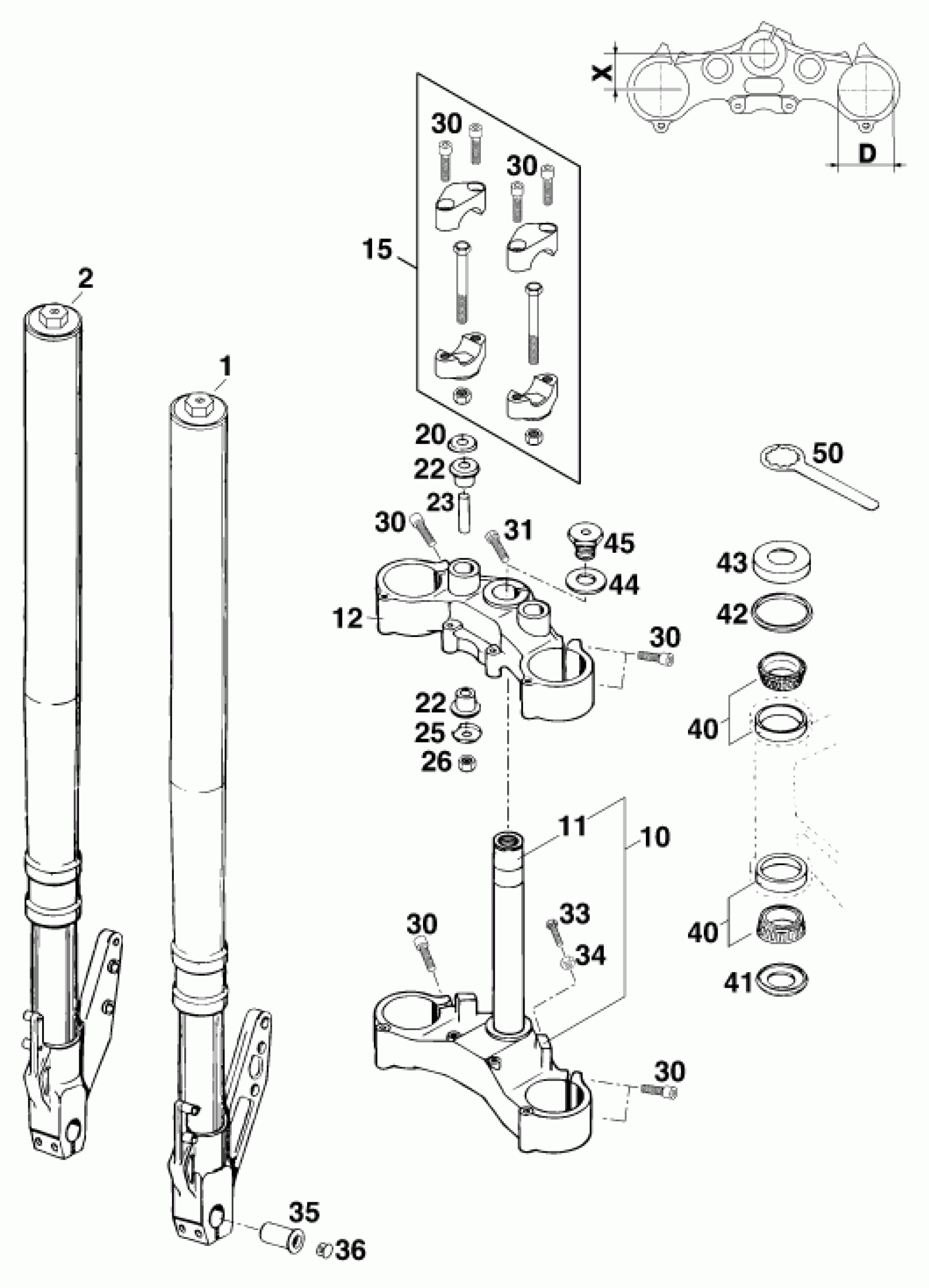

KTM 640 DUKE-E <1998 FRONT FORK, TRIPLE CLAMP Diagram

#

Description

Price

1

% FORK LEG L/S WP "618Q714" '

58401001000

Unavailable

2

% FORK LEG R/S WP "618Q714" '

58401002000

Unavailable

10

BOT.TRIPLE CLAMP X=35MM/D=54MM

58301032044

Unavailable

11

FORK TUBE L=244 '91

50101033100

$85.17

12

*TOP TRIPLE CLMP X=35MM/D=54MM

58301034000

Unavailable

15

SUPPORTKIT F.HANDL.DUKE,ADV'97

58402001050

Unavailable

20

washer 10.5x32x2

56401042000

$4.11

22

rubber bushing

56401040000

$5.23

23

SPACER TUBE 10,2X12X44

56401041100

$5.88

25

WASHER 10,5X31

56401142000

$4.11

26

SELF LOCKING NUT DIN0985-M10

0985100003

$2.05

30

AH SCREW DIN0912-M 8X35

0912080353

$2.05

31

0984080253

Unavailable

33

HH SCREW DIN0933-M 7X25

0933070253

$1.73

34

HEXAGON NUT DIN0934-M 7

0934070003

$1.49

35

AXLE NUT M17 X 1,5 DUKE'94

58309082000

$12.02

36

PLASTIC CAP 3/8'' 2663

58301098000

$1.49

40

TAPERED ROLLER BEARING CPL.

54201081000

$51.04

41

O-RING SUPPORT W. SEALING LIP

54601084100

$19.35

42

STEARING HEAD GASKET TOP

54601184000

$7.10

43

STEERING HEAD COVER

54201086000

$8.50

44

WASHER 21X38X3

56401044000

$5.00

45

HH SCREW M20X1,5

56401043000

$19.86

50

RING WRENCH WS=32

54212035000

Unavailable
