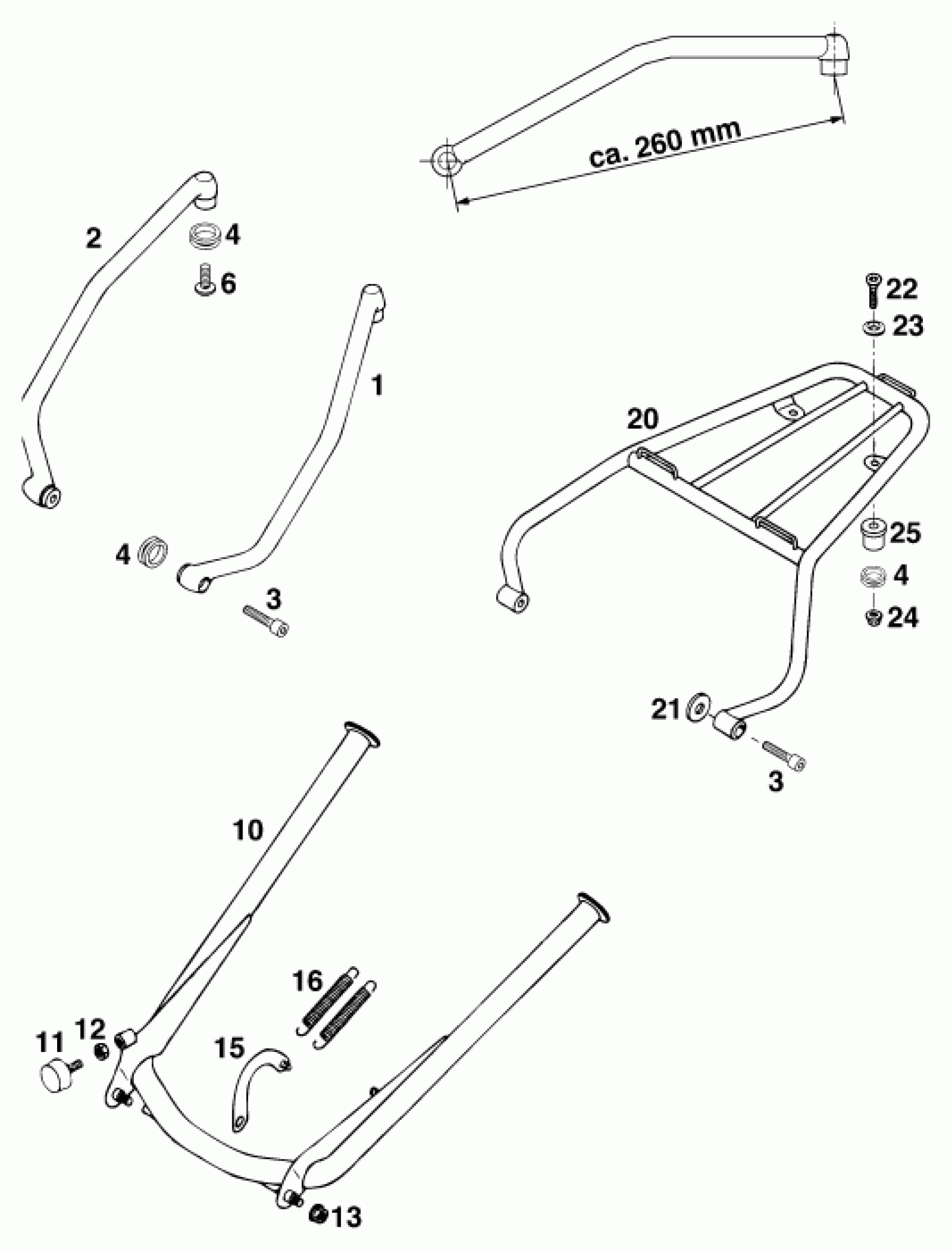

KTM 640 DUKE-E <1998> ACCESSORIES Diagram

#

Description

Price

1

HANDLE L/S BLACK '94

58312111000

$48.16

2

HANDLE R/S BLACK '94

58312211000

$48.16

3

AH SCREW DIN0912-M 6X30

0912060303

$2.05

4

* RUBBER RING 16 X 22 X 7

58312112000

Unavailable

6

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

10

* CENTER STAND SHORT 310MM '96

58403022000

Unavailable

11

STOP RUBBER M8

58303070000

$7.28

12

Hexagon nut DIN934 M8

0934080003

$2.05

13

54310086000

Unavailable

15

SPRINGBOW '93

58303027000

$24.47

16

STAND SPRING SHORT

10003021000

$9.44

20

BAGGAGE CARRIER BLACK DUKE '96

58412010000

$131.77

21

STEEL WASHER 6,4X17X3

50232050001

$5.23

22

FLAT HEAD SCREW DIN7991-M 6X30

0991060303

$2.05

23

SPECIAL WASHER 7X12,5X20 BLACK

58308045000

$4.11

24

SELF LOCKING NUT M6

56509064000

Unavailable

25

COLLAR BUSHING 7x16x14,5

58312111052

Unavailable
