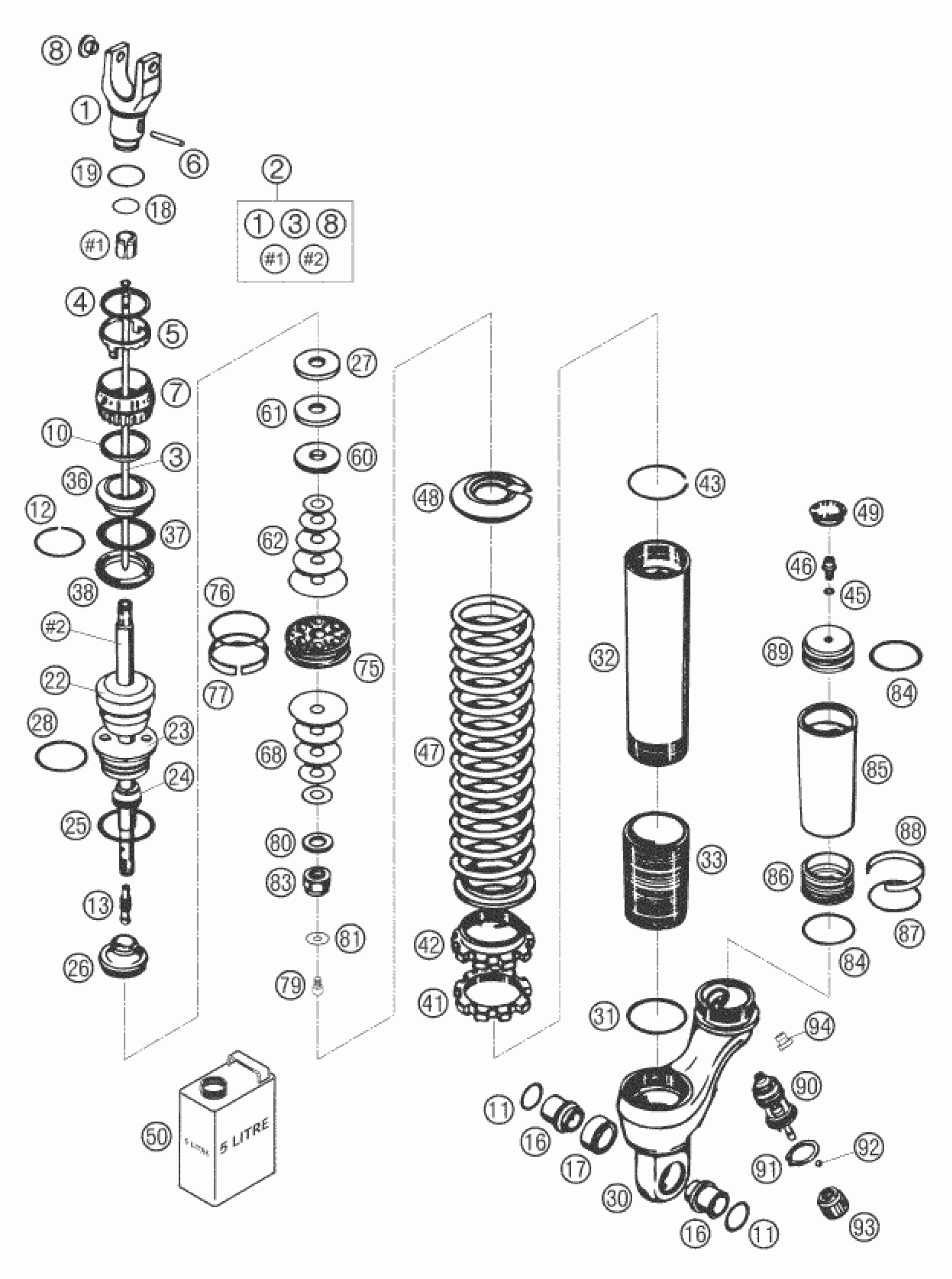

KTM 640 ADVENTURE 2005 SHOCK ABSORBER DISASSEMBLED Diagram

#

Description
Price

1

SHOCK ABS. BOTTOM-FORK L75B

46811558

$171.26

2

PISTON ROD D=14 BA M14X1

46811560S

$418.31

3

NEEDLE CPL. D=4 BA, L=183

46811545S

$73.70

4

O-RING 36X0,5

46811222

$2.32

5

WASHER

46811263

$10.12

6

PIN 4X35

46811261

$3.78

7

ADJ. KNOB D=41

46811262

$12.59

8

Bush M10x12/15/13x9,5

46811205

$6.72

10

Shaft seal 29x35x3

46811221

$11.45

11

SEAL KGW

46811050

$8.13

12

CIRCLIP 22X1,2

46811268

$1.60

13

NEEDLE SEAT 5X17,25

46811259

$70.29

16

Bearing bush 10x15,05/22/19x24

46811078

$11.33

17

Ball joint bearing 15x25x13

46811027

$29.35

18

O-ring 21x2 NBR70

46811499

$1.49

19

O-RING NBR 32X1,5

46811500

$1.49

22

Rubber pad 13,9x39x43 white

46810365

$48.63

23

SCREW CAP M47,4, H=22,5

46811045

$53.22

24

DUST SEAL 1424

46811044

$19.35

25

O-ring 35x5 NBR70

46810325

$1.49

26

ADAPTER CPL. D=46, H=23 BA

46811540S1

$90.67

27

SPACER 35X14X2

46811002

Unavailable

28

O-ring 40x2 NBR70 black

46811042

$2.05

30

SHOCK ABSORB. TOP H-35/79 84

46811481

Unavailable

31

O-ring 48x2 NBR70 siliconized

46810016

$1.49

32

TUBE L=180

46810093

$97.28

33

THREADED BUSH L=60 BLACK

46810346

$58.17

36

BUSHING RING D=55X19

46811561

$22.15

37

O-RING NBR 32X8

46811512

$1.49

38

SUPPORT RING D=55X7,5

46811511

$27.38

41

COUNTERNUT

46810109

$77.12

42

ADJUSTING NUT

46810108

$81.77

43

Round-wire snap ring 49x1,5

46810010

$3.08

45

O-ring 5,28x1,78 NBR70 black

46810893

$1.49

46

HS lock screw M5x6

36120151

$1.86

47

SPRING 70-260 (59), D=12

91010110

$115.98

47

SPRING 75-260 (59)

91010111

Unavailable

47

SPRING 66-260 59

91010253

Unavailable

48

SPRING RETAINER D=58,H=13,L=15

46810063

Unavailable

49

Rubber cap do not open 22x5,5

46811208

$3.08

50

SHOCK ABSORBER FLUID 5 LT '03

50180342S1

$149.59

60

REBOUND BUSH PLANE H=6,5

46811216

$15.29

61

Bush 14x35x10

46811005

$16.27

62

SHIM 12X26X0,20

46810491

$2.05

62

SHIM 12X28X0,20

46810492

$2.05

62

SHIM 12X30X0,20

46810493

$2.05

62

SHIM 12X40X0,20

46810498

$2.05

62

SHIM 12X40X0,25

46810507

$2.05

62

SHIM 12X32X0,15

46810521

$2.05

62

SHIM 12X34X0,15

46810522

$2.05

62

SHIM 12X36X0,15

46810523

$2.05

62

SHIM 12X38X0,15

46810524

$2.05

62

SHIM 12X22X0,10

46810606

$2.05

62

Shim 12x17x0,15

46810610

$2.05

68

SHIM 12X26X0,20

46810491

$2.05

68

SHIM 12X28X0,20

46810492

$2.05

68

SHIM 12X30X0,20

46810493

$2.05

68

SHIM 12X30X0,15

46810520

$2.05

68

SHIM 12X32X0,15

46810521

$2.05

68

SHIM 12X23X0,10

46810607

$2.05

68

Shim 12X21X0,30

46810641

$2.05

75

PISTON 6+6XD=7 BA

46811218

Unavailable

76

O-ring 37x,82x1,78 Viton70 gre

46810035

$2.05

77

Piston ring 43,95x45,95x8

46811206

$17.76

79

HH screw ventilation M6 l5,5

46180056

$9.75

80

Washer 12x24x2,5

46811258

$24.77

81

Shim 6x18x0,10

40540403

$2.05

83

Piston rod nut M12x1

46180060

$32.67

84

O-ring 45x2 NBR70 siliconized

46810340

$1.49

85

RESERVOIR SCREW L=123 GREY

46811453

$113.54

86

SEPARATION PISTON D=46

46810322

$35.58

87

O-ring 35x5 Viton70

46811043

$4.64

88

Pistonring 42,5x45,5x3,9

46810324

$32.53

89

RESERVOIR CAP D=46

46811209

Unavailable

90

CC-COMPRE.DAMPING CONTROL CPL.

46811539S

Unavailable

91

LOCK WASHER JV24

46810334

$1.60

92

Steel ball 4.75mm

46810333

$1.49

93

ADJUSTING KNOB CC-MECH. CPL.

46811272S

Unavailable

94

HS cylinder-head screw R1/8 l8

50180095

$2.42
