REAR BRAKE CONTROL

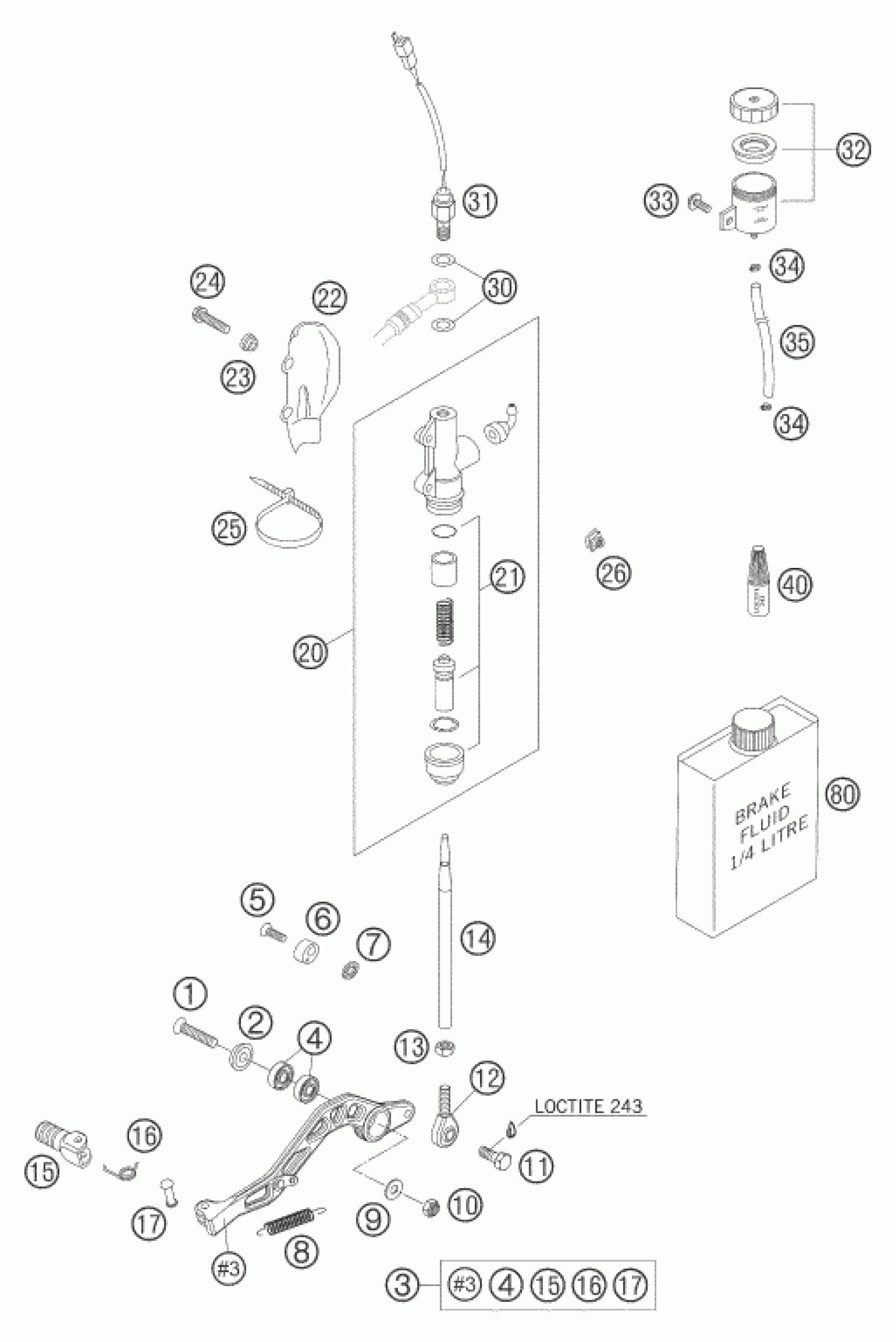

KTM 640 ADVENTURE 2005 REAR BRAKE CONTROL Diagram
#
Description
Price
1
FLAT HEAD SCREW DIN7991-M 8X35
0991080353
$2.61
2
SPECIAL WASHER ALU 8 X 24 MM
58303061000
$5.23
3
FOOT BRAKE LEV. FOLDING CPL.04
58403070244
$89.22
4
Grooved ball bearing 608 2RS C
0625006087
$21.40
5
FLAT H.SCREW DIN7991-M6X20
0991060203
$2.05
6
BRAKE LEVER STOP LC4 03
58413048000
$5.79
7
TOOTH LOCK WASH. DIN6797-A 6,4
0797060003
$1.49
8
RETURN SPRING
13003062000
$5.79
9
washer DIN 125 A -8.4
0125080003
$1.49
10
SELF LOCKING NUT DIN0985-M 8
0985080003
$2.05
11
HH SCREW DIN0933-M 8X22 8.8
0933080223
Unavailable
12
HEIM JOINT M8 W=12MM '93
58303062000
$38.07
13
Hexagon nut DIN934 M8
0934080003
$2.05
14
PUSH ROD ALU L=178MM '93
58303068100
$9.67
15
STEP PLATE FOR SHIFT LEVER 250
54634131000
$31.59
16
SHIFTING LEVER SPRING 250
54634032100
$3.08
17
BOLT 6X25 FOR SHIFT LEVER
54634031050
$7.85
20
MAIN BRAKE CYLINDER '89
54513101044
$126.73
21
REPAIR KIT PISTON 13MM
54513150000
$46.46
22
BRAKE CYL. PROTECTOR ''BREMBO'
54513038000
$7.00
23
COLLAR BUSHING
50213161000
$3.08
24
HH COLLAR SCREW M 6X25 WS=8
0015060253
$3.08
25
Cable tie 200/4.6mm black
44011076200
$1.49
26
SNAP-NUT HOLDER M6 KP142
50235033300
$4.11
30
CU-SEAL RING DIN7603-10X16X1
42013226000
$2.05
31
BRAKE LIGHT SWITCH REAR '98
50311051100
$36.92
32
BRAKE FLUID RESERVOIR '89
54513030044
$20.56
33
HH COLLAR SCREW M 6X10 WS=8
0014060103
$3.08
34
YDNAC-clamp 10101 (10.4MM)
58007017000
$3.08
35
HOSE FOR RESERVOIR 6X1,5
58007016101
Unavailable
40
LOCTITE 243 BLUE 5 ML
6899785
$28.04
80
BRAKE FLUID DOT 4.0
306054
Unavailable
