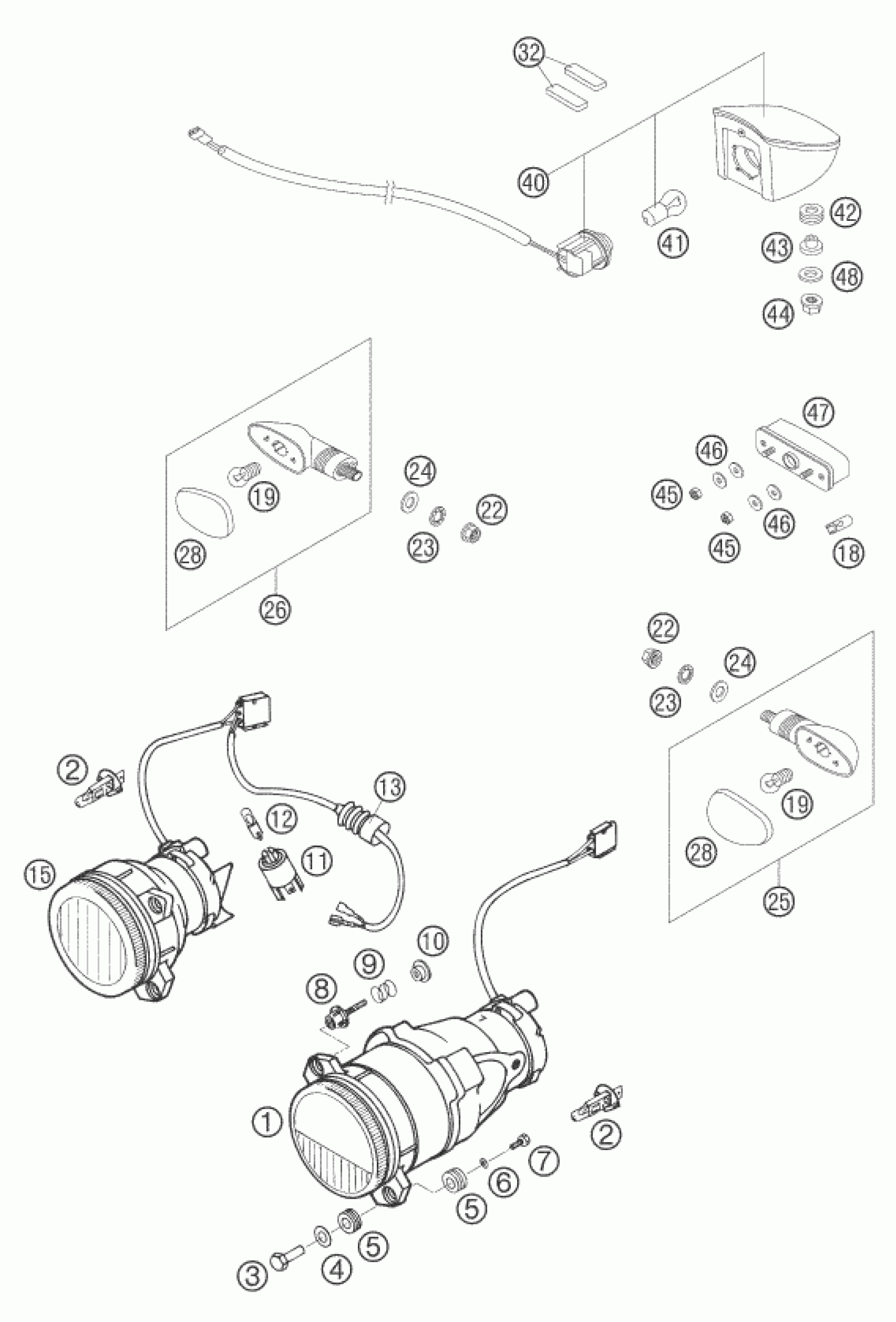

KTM 640 ADVENTURE 2005 LIGHTING SYSTEM Diagram

#

Description
Price

1

HEADLIGHT LOW BEAM DUKE'94

58311010000

$186.24

2

BULB H1 12V 55W WHITE

58311038000

$12.94

3

SPECIAL NUT M5X25 WS=10

58311044000

$5.32

4

washer DIN 125 A -8.4

0125080003

$1.49

5

rubber grommet D=8mm open

31008060000

$2.05

6

TOOTH LOCK WASH. DIN6797-J 5,3

0797050003

$1.49

7

HH SCREW DIN0933-M 5X12

0933050123

$1.49

8

ADJUSTING SCREW M5X30 CPL.

58311011000

$2.56

9

SPRING L=16MM

12003007052

$1.73

10

COLLAR BUSHING 5 X 10 X 6 ALU

54603073000

$1.96

11

BULB SOCKET BA9S

58311039000

$4.53

12

BULB 12V 2W BA9S

44111005100

$3.39

13

CLUTCH LEVER BOOT '95

58302126000

$5.23

15

HEADLIGHT HIGHBEAM DUKE '94

58311110000

$86.98

18

BULB 12V 5W (W2,1X9,5D)

49011435000

$5.23

19

BULB 12V 10W (BA15S)

44111015100

$3.08

22

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

23

LOCK WASHER DIN6797-J10,5 ZI

0797100003

$1.49

24

washer DIN 125 A 10.5

0125100003

$2.05

25

FLASHER CPL.FRONT L/S REAR R/S

5841402500030

$28.70

26

FLASHER CPL.FRONT R/S REAR L/S

5841402600030

$27.95

28

FLASHER LENS L/S & R/S '98

58414028000

$6.72

32

METAMOLL FOR REARLIGHT 99

58414040051

$1.49

40

REAR LIGHT CPL. LC4 2001

58414040100

$80.31

41

BULB 12V 21/5W (BAY15S)REINFO.

58414042000

$12.61

42

RUBBER SLEEVE D=12MM

41001052000

$4.11

43

REAR LIGHT BUSHING

58714048000

$5.23

44

Self locking nut M6 - 10

56509064100

$2.05

45

Self locking nut DIN 985 M5

0985050003

$2.05

46

washer DIN 9021 A - 5.3

0021050003

$1.49

47

LICENSE-PLATE ILLUMINATION '98

58414047000

$14.67

48

Washer DIN9021-A 6.4

0021060003

$2.05
