- 640 ADVENTURE 2005
FRONT FORK DISASSEMBLED

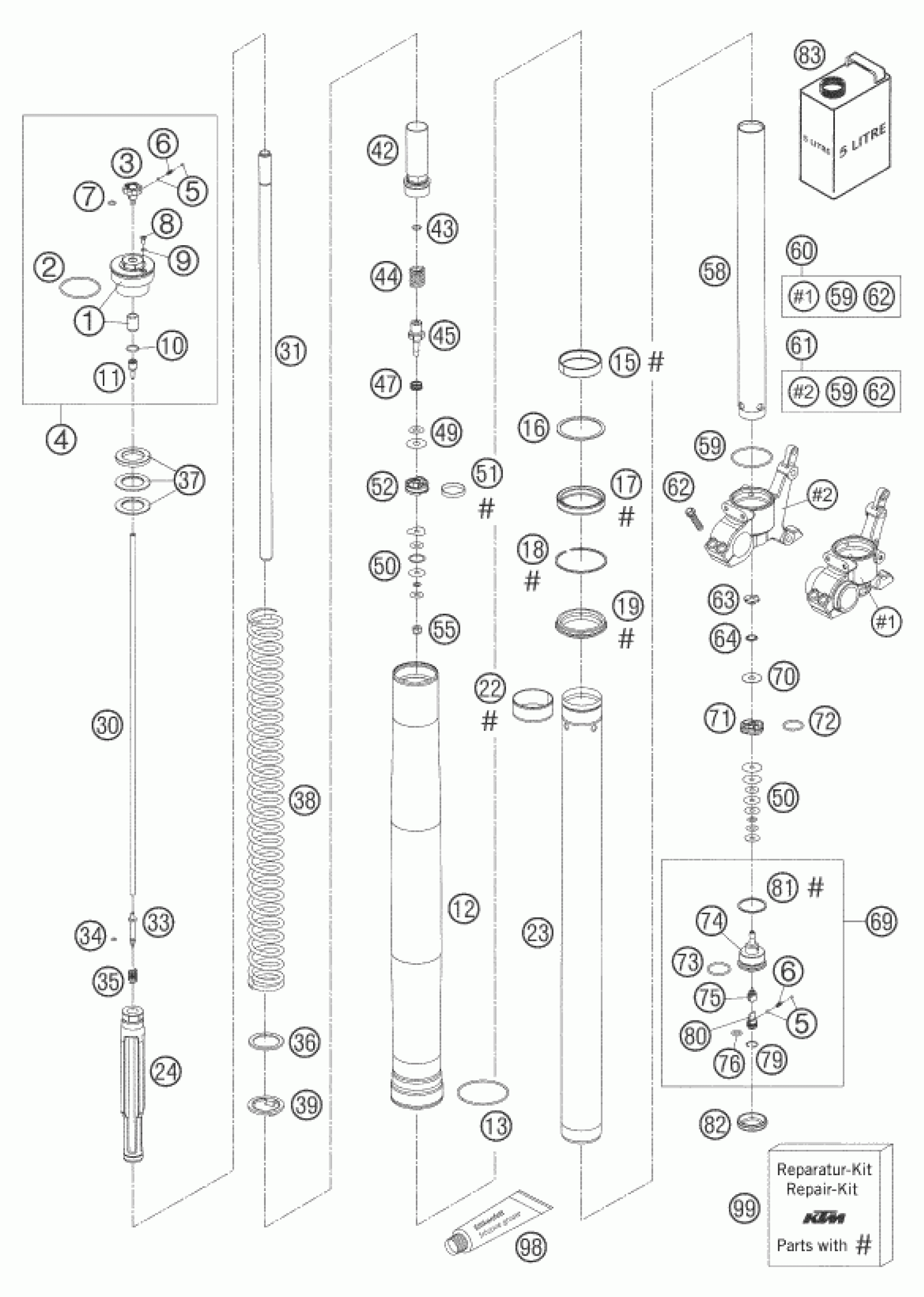

KTM 640 ADVENTURE 2005 FRONT FORK DISASSEMBLED Diagram
#
1
SREW CAP+BUSH M51X1,5
48600020S
$39.06
2
O-ring 45x2 NBR70 siliconized
46810340
$1.49
3
Adjuster rebound
48600018
$4.11
4
SCREW CAP M51X1,5 CPL.
48600020S1
$98.26
5
Steel ball d3
40540603
$1.49
6
Spring (1,7) l7,9
48600028
$3.08
7
O-ring 6x1,5 NBR70
48600044
$1.49
8
Cross flat head screw M4x6
48600058
$1.82
9
O-ring 3,7x1,6 NBR70
48600009
$1.49
10
O-ring 12x1,5 NBR70
48600043
$2.05
11
Tube tap d4x25
48600019
$3.08
12
OUTER TUBE L=577 D=54/60 SM 03
48600268
$443.86
13
Round-wire snap ring 48x2
48600016
$3.08
15
DU-BUSH 48X52X12
48600205
$32.25
16
Supportwasher 50x57,6x1,5
48600013
$3.08
17
OIL SEAL RING 48X57,8X9,5 03
48600347
$13.64
18
Snap ring SB58x1,5 acc drawing
48600070
$2.05
19
DUST STRIPPER D=48
48600348
$12.80
22
DU-BUS 47X49X20
48600204
$12.05
23
INNER TUBE D=48 L=595 2005
48600417
$233.64
24
HYDR.STOP L=200MM D=31,9 CPL.
48600380S
$47.38
30
ADJUSTMENT TUBE L=492MM
48600094
$15.01
31
PISTON ROD 14X11X1 L=526
48600412
$103.61
33
Needle 6x42,6 rebound
48600189
$34.68
34
O-ring 3x1,5 NBR70
48600046
$1.49
35
Spring (7,2) 4-23 needle
48600033
$5.23
36
Washer 32x42x2,5 plastic
48600113
$11.12
37
Preload bush 42x26,5x2,5
48600036
$2.05
37
Preload bush 26,5x42x5
48600037
$4.11
37
Preload bush 26,5x42x1,5
48600053
$4.11
38
SPRING 4,4N/MM SET D=5,1MM
91410006S
Unavailable
38
SPRING 4,6N/MM SET D=5,1MM
91410019S
$145.85
39
Spring retainer 33,5x43x3
48600021
$16.73
42
SCREW SLEEVE M29,3X1 L=90 CPL.
48600383S
$84.24
43
O-ring 8x1,25 NBR70 siliconize
48600239
$1.49
44
Spring (15) 12-34,5 rebound
48600403
$31.71
45
Tap 6x45 rebound
48600203
$8.37
47
Spring (11,7) 1,5-8 valve
35480377
$2.05
49
CHECK VALVE 8X24X0,1
48600062
$2.05
49
CHECK VALVE 8X18X0,1
48600068
$2.05
49
Shim 8x20x0,10
48600215
$2.05
49
Shim 8x22x0,10
48600216
$2.05
50
Shim 6x14x0,10
40540401
Unavailable
50
Shim 6x16x0,10
40540402
Unavailable
50
Shim 6x18x0,10
40540403
Unavailable
50
SHIM 6X14X0,15
40540405
Unavailable
50
SHIM 6X16X0,15
40540406
Unavailable
50
SHIM 6X16X0,25
40540414
Unavailable
50
SHIM 6X18X0,25
40540415
Unavailable
50
Shim 6x10x0,30
40540447
Unavailable
50
Shim 6x11x0,30
40541391
Unavailable
50
Shim 6x24x0,10
48600063
Unavailable
50
Shim 6x20x0,10
48600065
Unavailable
50
Shim 6x24x0,10 delta
48600116
Unavailable
51
Pistonring 26x28x5
48600060
$5.23
52
Piston 6,05x27,65x12 rebound
48600042
$11.78
55
Nut M6x0,5 h6,5 WAF10 rebound
40540486
$4.11
58
Tube 29.3X1X385 ALU
48600140
$82.49
59
O-ring 46x2 NBR70 siliconized
48600048
$3.08
60
AXLE CLAMP L/S CPL. D=30 05
48600435S
$178.03
61
AXLE CLAMP R/S CPL. D=34 05
48600436S
$177.33
62
HH COLLAR SCREW M 8X30 WS=10
0015080303
$3.08
63
Nut valve M6x0,5 h6,5 WAF17
48600163
$3.08
64
Spring (8,5) l6,5 valve
48600202
$2.05
69
TAP COMPRESSION CPL. 03
48600152S1
$37.67
70
Shim 8x24x0,40
48600061
$2.05
71
Piston 6x27,8x9 compression
48600047
$9.81
72
O-ring 21x2 NBR70
46811499
$1.49
73
O-ring 24x2 NBR70
35480320
$1.49
74
TAP COMPRESSION
48600152
$37.67
75
Needle 10x11,6 compression
48600190
$13.64
76
O-ring 8x2 NBR70
48600049
$1.49
79
Round-wire snap ring 12x1 DIN7
48600051
$3.08
80
Adjustment screw slot compress
48600034
$7.35
81
Copper disc 29,5x33,5x1
48600004
$4.11
82
Rubber cap 35x10 NBR80
48600141
$4.11
83
FORK OIL SAE5 5L 2005
48600401S1
$149.59
98
SILICONE GREASE F. DUST STRI
T511
$34.59
99
REPAIR-KIT GASKET 4860 MXMA 03
R14007
$106.21
