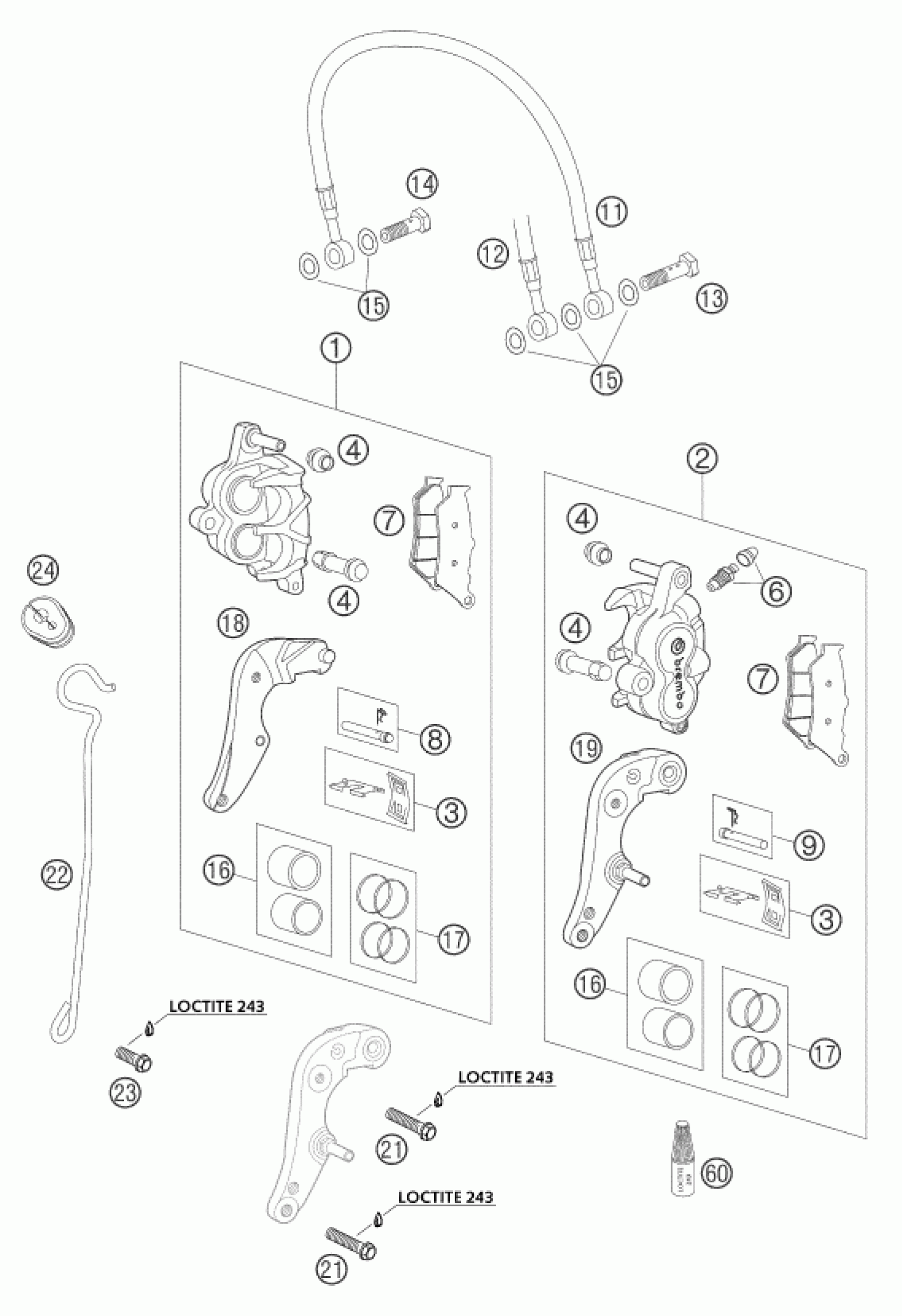

KTM 640 ADVENTURE 2005 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

BRAKE CALIPER FRONT R/S 03

60013016000

Unavailable

2

BRAKE CALIPER FRONT L/S 03

60013015000

Unavailable

3

RETAINING PLATE SET BREMBO

54613212000

Unavailable

4

CUP SET SHORT

54613218000

Unavailable

6

BLEEDER SCREW WITH CAP

60013020000

Unavailable

7

BRAKE PADS TOSHIBA TT 2172 HHA

60013030000

Unavailable

8

BOLT SET R/S

60013017100

Unavailable

9

BOLT SET L/S

60013017000

Unavailable

11

CONNECTING PIPE FRONT

60013013000

Unavailable

12

BRAKE HOSE FRONT ADV.S 03

60013012000

Unavailable

13

HOLLOW SCREW M10X1X30 03

60013092000

Unavailable

14

HOLLOW SCREW M10X1X19

50213025000

Unavailable

15

CU-SEAL RING DIN7603-10X16X1

42013226000

Unavailable

16

BRAKE PISTONS 30/32MM

60013083000

Unavailable

17

REP.KIT SEALING RINGS 30/32MM

60013019000

Unavailable

18

BRAKE CALIPER SUPPORT FR. R/S

60013049000

Unavailable

19

BRAKE CALIPER SUPPORT FR. L/S

60013049100

Unavailable

21

HH COLLAR SCREW M 8X35 WS=10

0015080353

Unavailable

22

BRAKE HOSE GUIDE FRONT 03

60013025000

Unavailable

23

HH COLLAR SCREW M 8X16 WS=10

0015080163

Unavailable

24

RUBBER FOR BRAKE HOSE GUIDE 03

60013025050

Unavailable

60

LOCTITE 243 BLUE 5 ML

6899785

Unavailable
