- 640 ADVENTURE 2005
FRAME

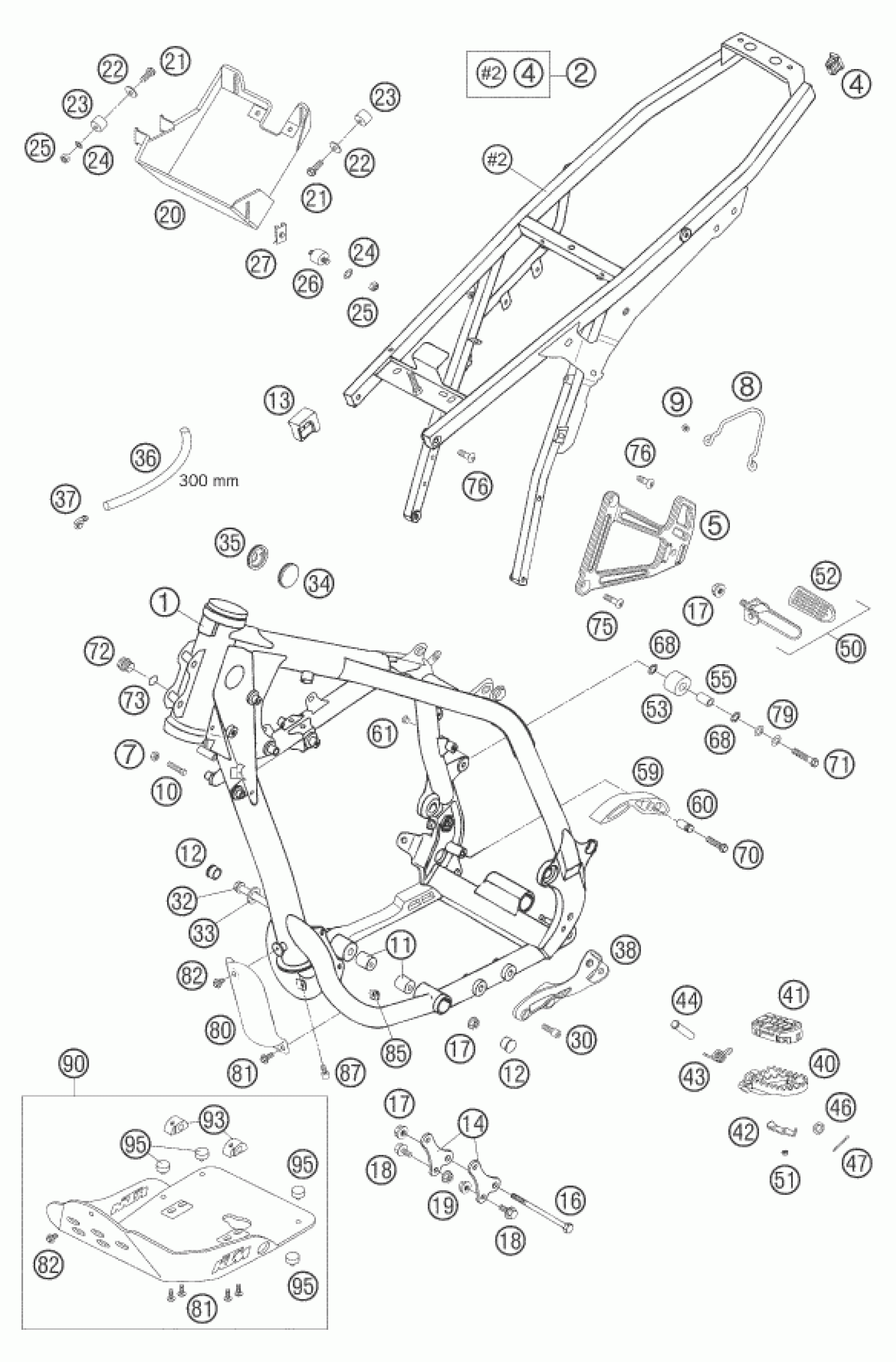

KTM 640 ADVENTURE 2005 FRAME Diagram
#
1
FRAME CPL. "EC05" 640 ADV. 05
5820300174490
Unavailable
2
SUBFRAME CPL. STEEL SILVER 00
5840300234490
$385.26
4
PLUG 12 X 17 MM
58303002090
$1.49
5
FOOTRESTBRACK. REAR R/S SILVER
5810300420090
$61.25
5
FOOTRESTBRACK. REAR L/S 04
5840304800090
$45.88
7
Hexagon nut DIN934 M8
0934080003
$2.05
8
THERMAL PROTECTION BOW 04
58403056000
$5.57
9
OVAL HEAD SCR. DIN7985-M 5X10
0985050103
$1.49
10
SPECIAL SCREW M8X26 WS=10
59001037000
$3.08
11
SPACER ROLLER 10,3X20X22
58003012000
$8.53
12
PVC CAP D=22MM
71001012100
$3.08
13
TANK SUPPORT '93
58307015000
$5.47
14
ENGINE SUPPORT AGW '94
58303055000
$10.46
16
ENGINE BRAC.SCREW M10X110 WS13
58403013000
$11.84
17
COLLAR NUT M10 WS=13
54630044000
$1.49
18
HH COLLAR SCREW M 8X16 WS=13
49109481052
$3.08
19
Self locking nut M8 10.9
54310086200
$3.08
20
BATTERY BOX 03
58403002370
$7.40
21
HH COLLAR SCREW M 6X10 WS=8
0015060103
$3.08
22
Washer DIN9021-A 6.4
0021060003
$2.05
23
silentbloc 20x15-M6x10-(1)
43205062100
$13.92
24
TOOTH LOCK WASH. DIN6797-A 6,4
0797060003
$1.49
25
Hex. nut DIN 934 M6
0934060003
$1.49
26
RUBBER GROMMET 20X15-M6X8-(2)
58403002010
$11.49
27
clip nut M6
54603048100
$4.11
30
AH SCREW DIN6912-M10X25,10.9
0912100250
$4.11
32
ENGINE BRAC.SCREW M10X160 WS13
58403014000
$18.22
33
WASHER 10,5 X 21 X 3
31004001100
$2.05
34
PLUG 37MM
54606004000
$2.05
35
PLUG 37MM PERFORATED 04
54606004100
$1.49
36
PVC-HOSE 7X10 PER METER
55007016001
Unavailable
37
ANGLE PIECE '97
50303089000
$5.23
38
FOOTREST BRACKET L/S ALU
58403038000
$68.28
40
FOOT PEG L/S SILVER 02
59003040250
$43.66
40
FOOT PEG R/S SILVER 02
59003041250
$43.66
41
FOOTREST RUBBER FRONT L/S 03
60003040010
$22.15
41
FOOTREST RUBBER FRONT R/S 03
60003041010
$22.15
42
CLOSING PANEL FRONT L/S R/S 03
60003044010
$6.07
43
FOOTREST SPRING L/S & R/S
54603041000
$5.23
44
PIN FOR FOOT PED 51.5X9.8 MM
54803044000
$12.43
46
washer DIN 125 A 10.5
0125100003
$2.05
47
PIN DIN0094-3,2X25 STEEL
0094032253
$1.49
50
FOOTREST REAR L/S CPL. '95
58303050044
$90.01
50
FOOT REST REAR R/S CPL.'95
58303150044
$88.44
51
Self locking nut DIN 985 M5
0985050003
$2.05
52
FOOTREST RUBBER L/S&R/S DUKE95
58303051000
$15.70
53
CHAIN ROLL 12X29X22,5 '98
58403060000
$6.07
55
BUSH CHAIN ROLL 8X12X23 '98
58403060065
$3.08
59
CHAIN SLIDING PIECE BELOW '97
51103053000
$9.15
60
BUSHING 8,2X10X20
51103053051
$4.11
61
PLASTIC CAP SFL10
54403135000
$2.05
68
LOCK WASHER 8MM
36003014000
$2.05
70
HH COLLAR SCREW M 8X30 WS=10
0015080303
$3.08
71
HH COLLAR SCREW M 8X45 WS=10
0015080453
$2.05
72
PLUG DIN0910-M16X1,5
0910160153
$4.87
73
CU-SEAL RING 16X22X2
0603162220
$2.05
75
AH SCREW 8X29 FL.HEAD 04
54510052200
$1.49
76
SPROCKET SCREW-AH M8X26 WS=6
54510052100
$3.08
79
washer DIN 125 A -8.4
0125080003
$1.49
80
COVER OIL FILTER '94
58303010000
Unavailable
81
HH COLLAR SCREW M 6X15 WS=8
0014060153
$3.08
82
HH COLLAR SCREW M 6X10 WS=8
0014060103
$3.08
85
SNAP-NUT HOLDER M6 KP142
50235033300
Unavailable
87
AH SCREW DIN7984-M 6X10
0984060103
$1.49
90
SKID PLATE LIMITED CPL. 97
58412099044
$103.22
93
ENGINE PROTECTOR BRACKET '97
58003012200
$20.47
95
RUBBER BUFFER
54308042000
$3.08
