TANK, SEAT

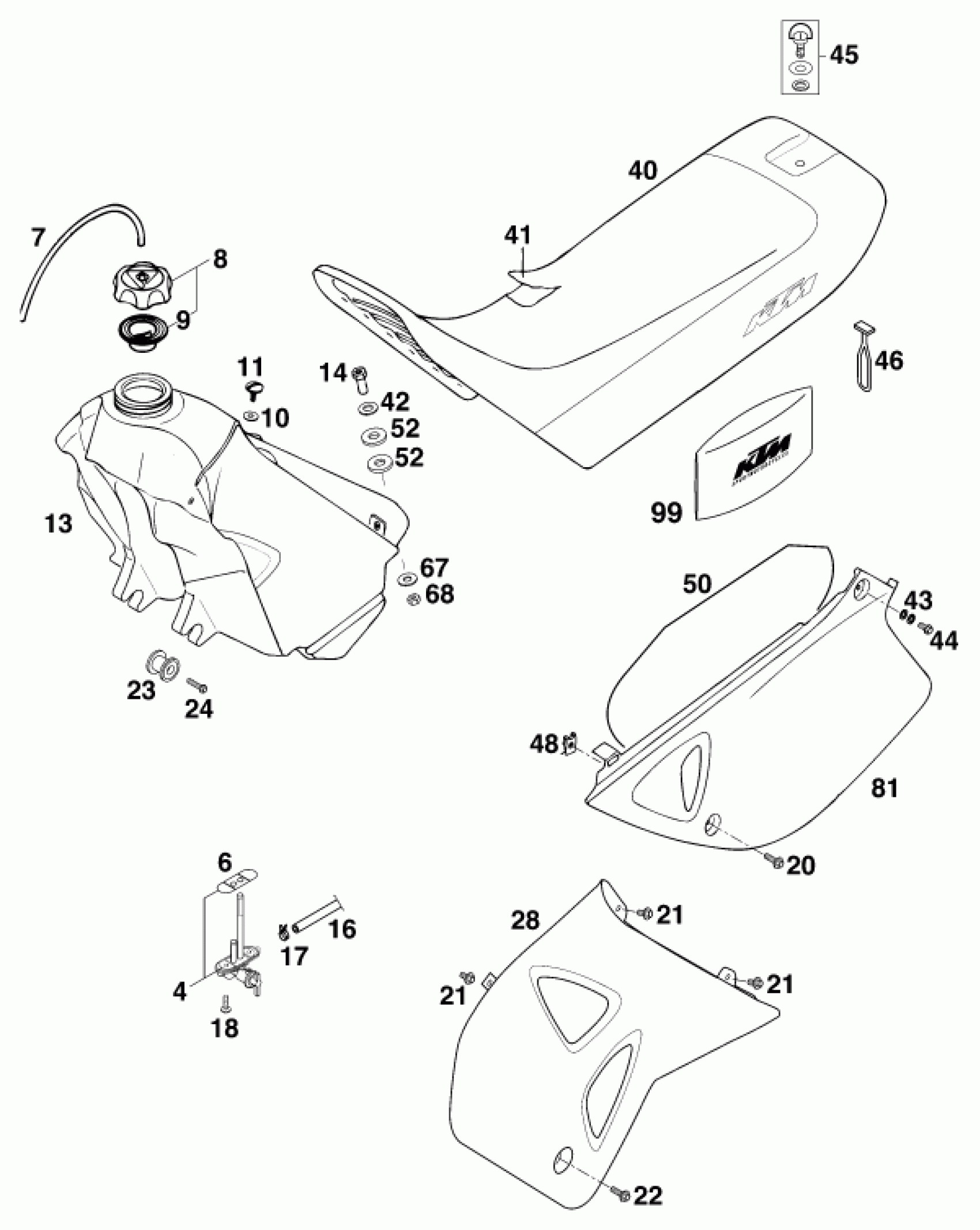

KTM 620 SX '99 <1999 TANK, SEAT Diagram
#
Description
Price
0
SIDE COVER SILVER R/S '99
5830804200089
$32.05
0
SPOILER ORANGE R/S '98
5833502920004
$34.46
4
FUEL COCK CPL.MIKUNI CK-69 '96
51107004000
$69.37
6
GASKET FUEL COCK MIKUNI
58307106100
$6.82
7
PVC-HOSE 6X9 MM PER METER
31007107001
Unavailable
8
FILLER CAP CPL. SMALL
49007008044
$23.65
9
% GASKET FOR FILLER CAP
49007009000
Unavailable
10
WASHER DIN0125-A 6,4
0125060003
$1.49
11
OVAL HEAD SCREW M6X15
58007044000
$4.35
13
FUEL TANK 9 LITER SX,SXC '98
58307013600
$271.04
14
SPECIAL NUT M8
58307014000
$6.26
16
HOSE ID 7,5 PER METER
54435024001
Unavailable
17
CLAMP YDNAC 10128 12MM
58031005000
$3.08
18
EJOT PT SCREW K60X20 WS=6
0017060203
$2.05
20
HH COLLAR SCREW M 6X20 WS=8
0014060203
$2.05
21
HH COLLAR SCREW M 6X10 WS=8
0014060103
$3.08
22
HH COLLAR SCREW M 6X15 WS=8
0014060153
$3.08
23
TANK BUSHING CPL. 12 X 34 X 25
58307113250
$10.20
24
HH COLLAR SCREW M 6X25 WS=8
0015060253
$3.08
28
SPOILER ORANGE L/S '98
5833502820004
Unavailable
40
*SEAT ORANGE/BLACK SXC '99
58307340600
Unavailable
41
*SEAT COVER ORANGE/BLACK '99
58307340650
Unavailable
42
WASHER 10,5 X 25 X 1,5
58307019000
$2.05
43
Pair of washers M6 NORDLOCK
50233041000
$4.11
44
HH COLLAR SCREW M 6X12 WS=8
0015060123
$3.08
45
QUICK RELEASE CPL. '96
58307040551
$24.21
46
BRACKET RUBBER
55011186000
Unavailable
48
clip nut M6
54603048100
$4.11
50
HEAT PROTECTOR
58308041050
$12.86
52
INSOLATE WASHER 12X28X3
51005067100
$2.05
67
WASHER DIN9021-A 8,4
0021080003
$1.49
68
Hexagon nut DIN934 M8
0934080003
$2.05
81
SIDE COVER SILVER L/S '99
5830804100089
$32.20
99
ORIGINAL EQUIPMENT TOOL KIT
58329099000
Unavailable
