FRAME

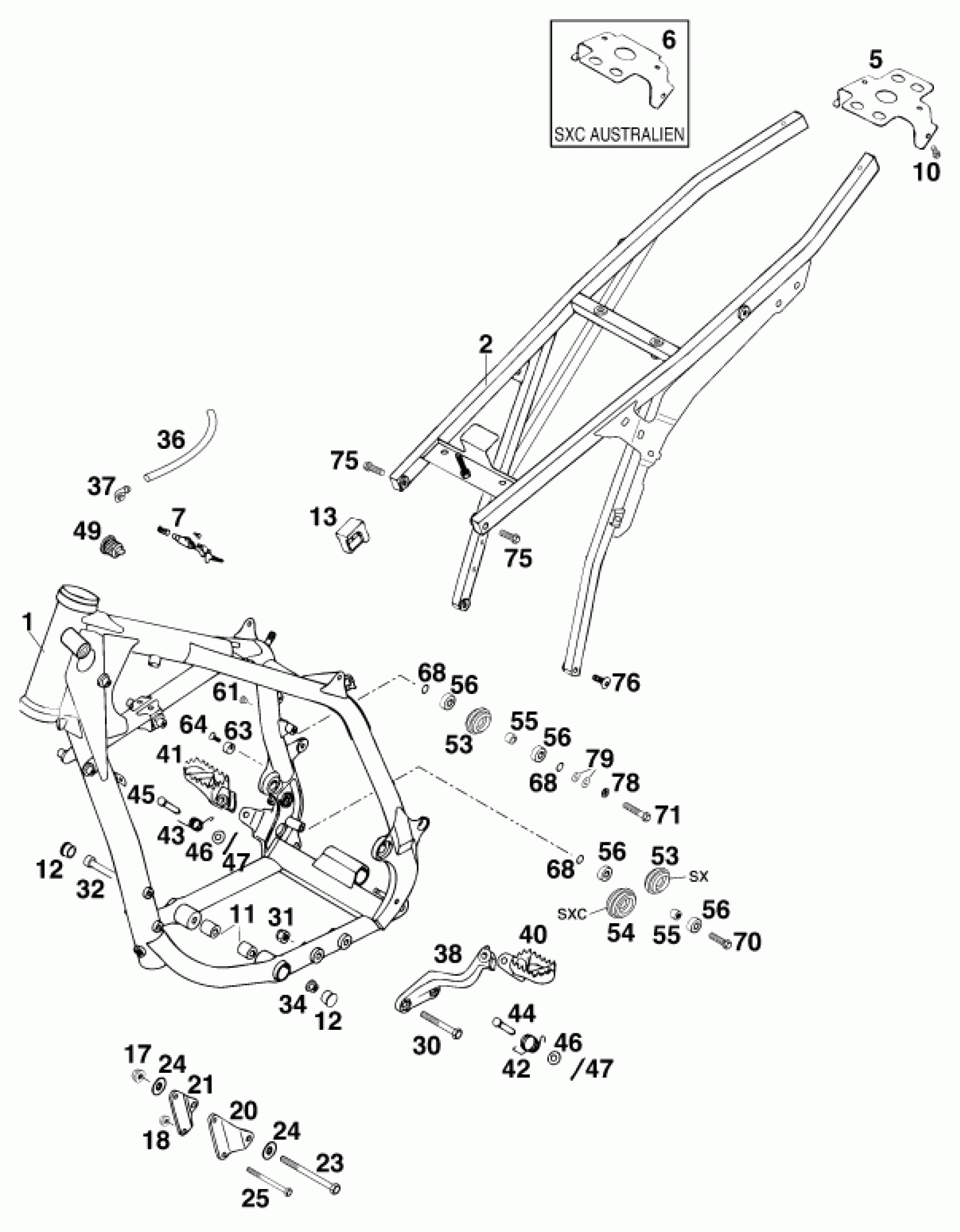

KTM 620 SX '99 <1999 FRAME Diagram
#
1
FRAME 400/540 SXC SILVER '99
5830300180090
Unavailable
2
% SUB FRAME CPL. ALU '
58303102400
Unavailable
5
BUSHING EXC-NUMBERPLATECARRIER
58303002045
Unavailable
6
BUSHING EGS-NUMBERPLATECARRIER
58303002145
Unavailable
7
STEERING HEAD LOCK CPL. ZADI
71003007000
Unavailable
10
HH COLLAR SCREW M 6X12 WS=8
0015060123
$3.08
11
SPACER ROLLER 10,3X20X22
58003012000
$8.53
12
PVC CAP D=22MM
71001012000
$3.08
13
TANK SUPPORT '93
58307015000
$5.47
17
flanged hex nut DIN 6927 M10 W
49009082000
$3.08
18
54310086000
Unavailable
20
ENGINE SUPPORT L/S STEEL '90
58003055500
Unavailable
21
ENGINE SUPPORT R/S STEEL '90
58003155500
Unavailable
23
HH SCREW DIN0931-M10X120
0931101203
Unavailable
24
WASHER 10,5 X 21 X 3
31004001100
$2.05
25
HH SCREW DIN0931-M 8X80
0931080803
$1.49
30
HH SCREW DIN0931-M10X60
0931100603
Unavailable
31
SELF LOCKING NUT DIN0985-M10
0985100003
$2.05
32
AH SCREW DIN0912-M10X160
0912101603
$6.72
34
COLLAR NUT M10 WS=13
54630044000
$1.49
36
PVC-HOSE 7X10 PER METER
55007016001
Unavailable
37
ANGLE PIECE '97
50303089000
$5.23
38
*FOOTREST BRACKET L/S SILVER99
5830303800090
Unavailable
40
FOOTREST L/S SILVER '99
5830304000090
$37.59
41
FOOT REST R/S SILVER '98
5460314000090
$34.59
42
FOOTREST SPRING L/S '93
58303041000
$5.48
43
FOOTREST SPRING L/S & R/S
54603041000
$5.23
44
BOLT FOR FOOTREST
58303044000
$6.36
45
BOLT FOR FOOTREST 9,8 X 50
54603044000
$12.43
46
washer DIN 125 A 10.5
0125100003
$2.05
47
PIN DIN0094-3,2X25 STEEL
0094032253
$1.49
49
PLASTIC CAP
42007049000
Unavailable
53
CHAIN ROLL D=30MM 125-380 '99
52303053000
$6.91
54
CHAIN ROLL D=35MM 125-380 '99
52303053100
$5.54
55
BUSHING 8.2 X 12 X 6
74003021000
$3.08
56
Grooved ball bearing 608 2RS C
0625006087
$21.40
61
PLASTIC CAP SFL10
54403135000
$2.05
63
BRAKE LEVER STOP '93
58303063000
$5.98
64
FLAT H.SCREW DIN7991-M6X20
0991060203
$2.05
68
LOCK WASHER 8MM
36003014000
Unavailable
70
HH COLLAR SCREW M 8X30 WS=10
0015080303
$3.08
71
HH COLLAR SCREW M 8X35 WS=10
0015080353
$4.11
75
HH COLLAR SCREW M 8X25 WS=10
0015080253
$2.05
76
SPROCKET SCREW-AH M 8X26
54510052000
Unavailable
78
TOOTHLOCK WASHER DIN6797-J 8,4
0797080003
Unavailable
79
washer DIN 125 A -8.4
0125080003
Unavailable
