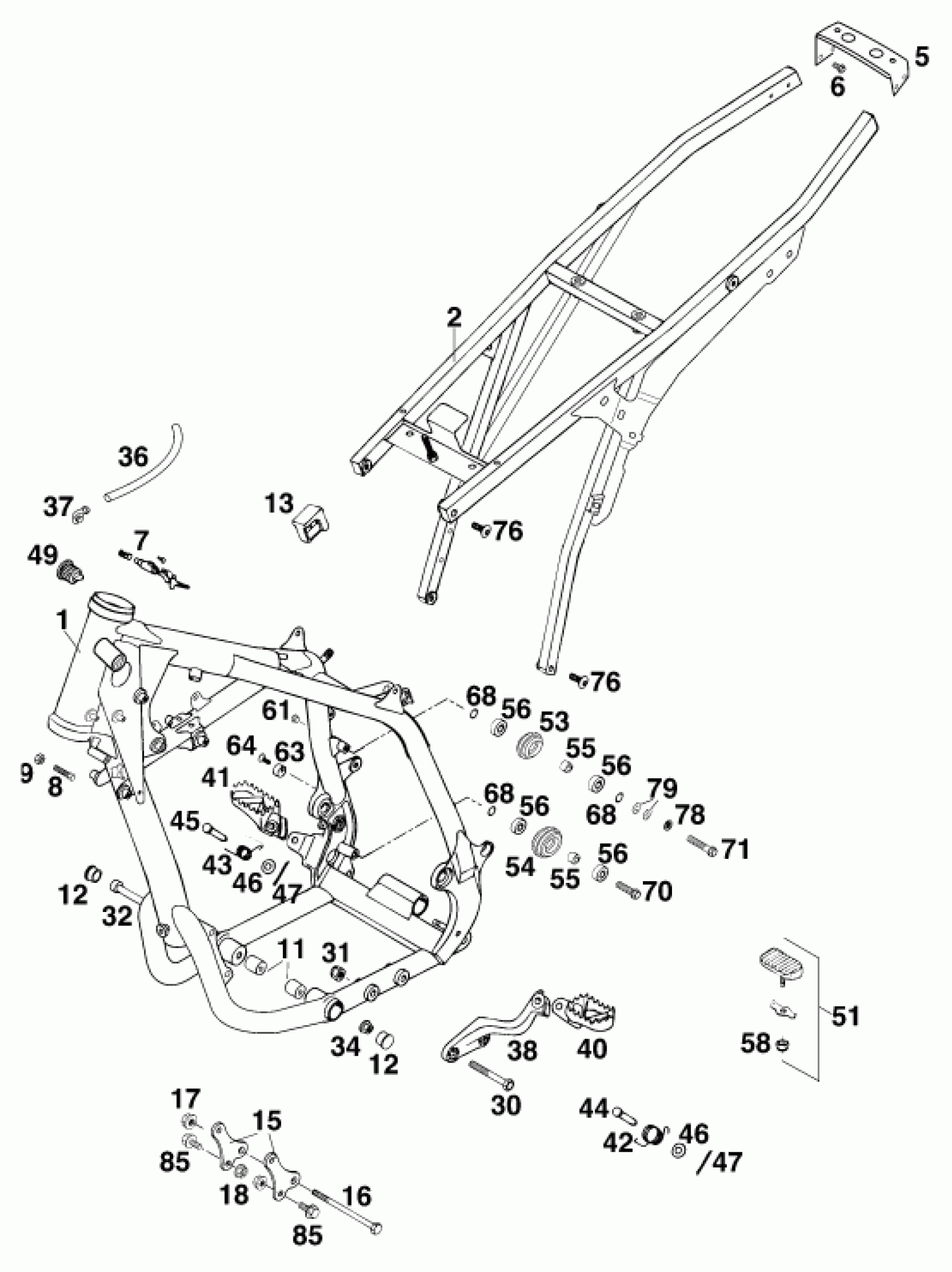

KTM 620 SC Super-moto 2000 FRAME Diagram

#

Description
Price

1

% FRAME 400/620 SC SILVER '99

58303101300

Unavailable

2

% SUB FRAME CPL. ALU SC '99

58303102500

Unavailable

5

OVERLAP METAL SHEET S.FRAME'99

58403002152

Unavailable

6

HH COLLAR SCREW M 6X10 WS=8

0015060103

$3.08

7

STEERING HEAD LOCK CPL. ZADI

71003007000

$32.06

8

SPECIAL SCREW M8X26 WS=10

59001037000

$3.08

9

Hexagon nut DIN934 M8

0934080003

$2.05

11

SPACER ROLLER 10,3X20X22

58003012000

$8.53

12

PVC CAP D=22MM

71001012100

$3.08

13

TANK SUPPORT '93

58307015000

$5.47

15

ENGINE SUPPORT AGW '94

58303055000

$10.46

16

HH SCREW DIN0931-M10X110

0931101103

$1.82

17

flanged hex nut DIN 6927 M10 W

49009082000

$3.08

18

Self locking nut M8 10.9

54310086200

$3.08

30

HH SCREW DIN0931-M10X60

0931100603

Unavailable

31

SELF LOCKING NUT DIN0985-M10

0985100003

$2.05

32

AH SCREW DIN0912-M10X160

0912101603

$6.72

34

COLLAR NUT M10 WS=13

54630044000

$1.49

36

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

37

ANGLE PIECE '97

50303089000

$5.23

38

*FOOTREST BRACKET L/S SILVER99

5830303800090

Unavailable

40

FOOTREST L/S SILVER '99

5830304000090

$37.59

41

FOOT REST R/S SILVER '98

5460314000090

$34.59

42

FOOTREST SPRING L/S '93

58303041000

$5.48

43

FOOTREST SPRING L/S & R/S

54603041000

$5.23

44

BOLT FOR FOOTREST

58303044000

$6.36

45

BOLT FOR FOOTREST 9,8 X 50

54603044000

$12.43

46

washer DIN 125 A 10.5

0125100003

$2.05

47

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

49

PLASTIC CAP

42007049000

Unavailable

51

FOOTREST RUBBER CPL. '94

58303045044

$18.04

53

CHAIN ROLL D=30MM 125-380 '99

52303053000

$6.91

54

CHAIN ROLL D=35MM 125-380 '99

52303053100

$5.54

55

BUSHING 8.2 X 12 X 6

74003021000

$3.08

56

Grooved ball bearing 608 2RS C

0625006087

$21.40

58

Self lock. nut DIN985-M6-A2

0985060003

$2.05

61

PLASTIC CAP SFL10

54403135000

$2.05

63

BRAKE LEVER STOP '93

58303063000

$5.98

64

FLAT H.SCREW DIN7991-M6X20

0991060203

$2.05

68

LOCK WASHER 8MM

36003014000

Unavailable

70

HH COLLAR SCREW M 8X30 WS=10

0015080303

$3.08

71

HH COLLAR SCREW M 8X35 WS=10

0015080353

$4.11

76

SPROCKET SCREW-AH M8X26 WS=6

54510052100

$3.08

78

TOOTHLOCK WASHER DIN6797-J 8,4

0797080003

Unavailable

79

washer DIN 125 A -8.4

0125080003

Unavailable

85

HH COLLAR SCREW M 8X16 WS=13

49109481052

$3.08
