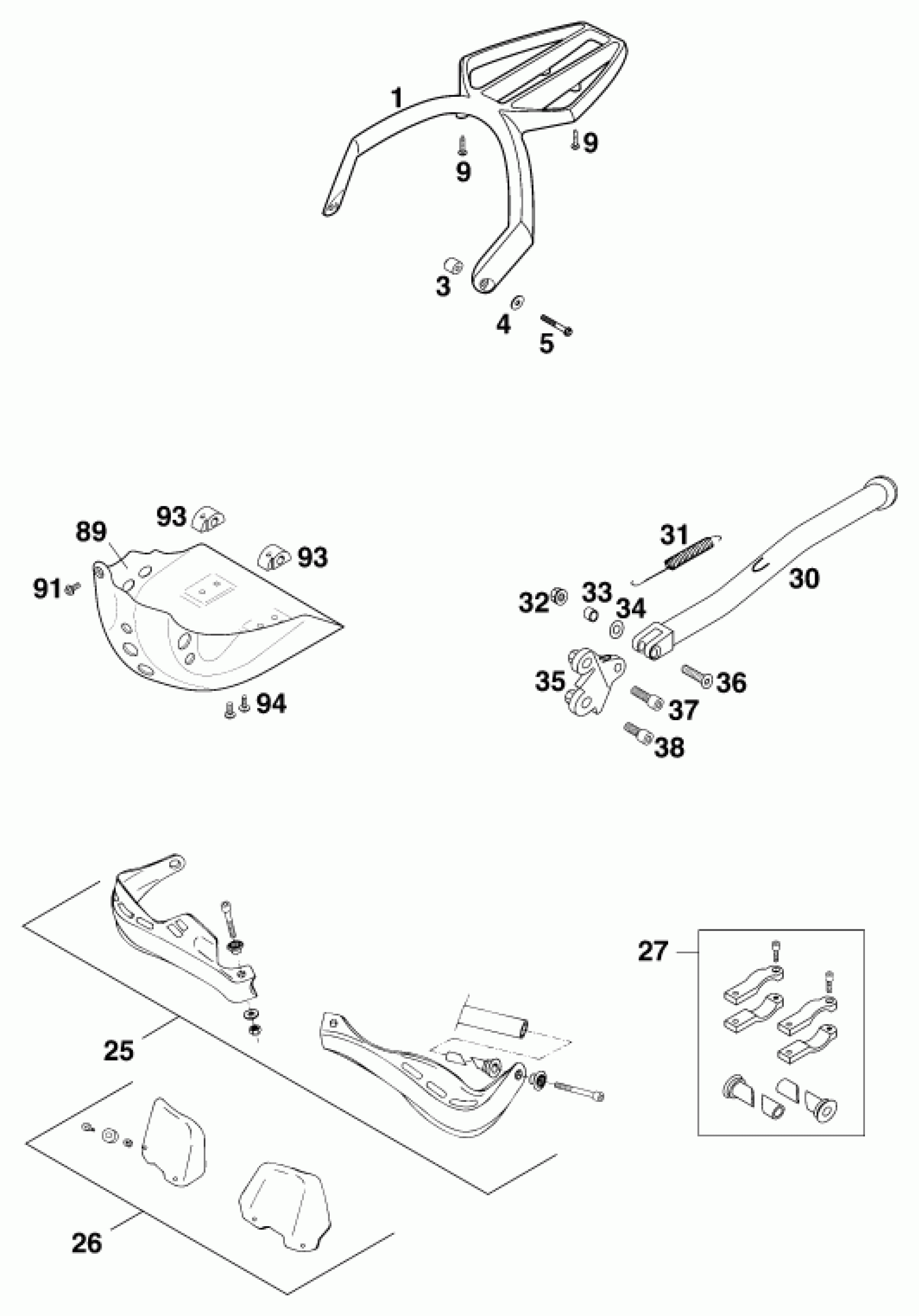

KTM 620 SC Super-moto 2000 ACCESSORIES Diagram

#

Description
Price

1

BAGGAGE CARRIER SILVER LC4 '

5841201010090

Unavailable

3

BUSH BAGGAGE CARRIER 6X16X17,5

58412011000

$5.05

4

WASHER 6,2X18X2

50232050000

$5.23

5

HH COLLAR SCREW M 6X35 WS=8

0015060353

$3.08

9

SPECIAL SCREW T60 6X30 WS=6

0017060303

$2.05

25

% HAND GUARD CPL.L+R/S BLACK

5020207904430

Unavailable

26

SCREEN CPL.L+R/S BLACK

5020207905030

Unavailable

27

FASTENING KIT HAND GUARDS CPL.

50202079051

Unavailable

30

SIDESTAND SILVER L=381MM '99

5830302320090

$86.73

31

SIDESTAND SPRING LONG

51003021000

$7.00

32

Self locking nut M8 10.9

54310086200

$3.08

33

BUSHING 8,2 X 12 X 10

57103225000

$4.11

34

WASHER 12,5 X 25 X 1,5

54603025000

$3.56

35

SIDE STAND BRACKET '97

58303026250

$73.70

36

FLAT HEAD SCREW DIN7991-M 8X35

0991080353

$2.61

37

AH SCREW DIN0912-M10X30

0912100303

$2.05

38

AH SCREW DIN0912-M10X25 10.9

0912100256

$4.11

89

58303005144

Unavailable

91

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

93

ENGINE PROTECTOR BRACKET '97

58003012200

$20.47

94

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08
