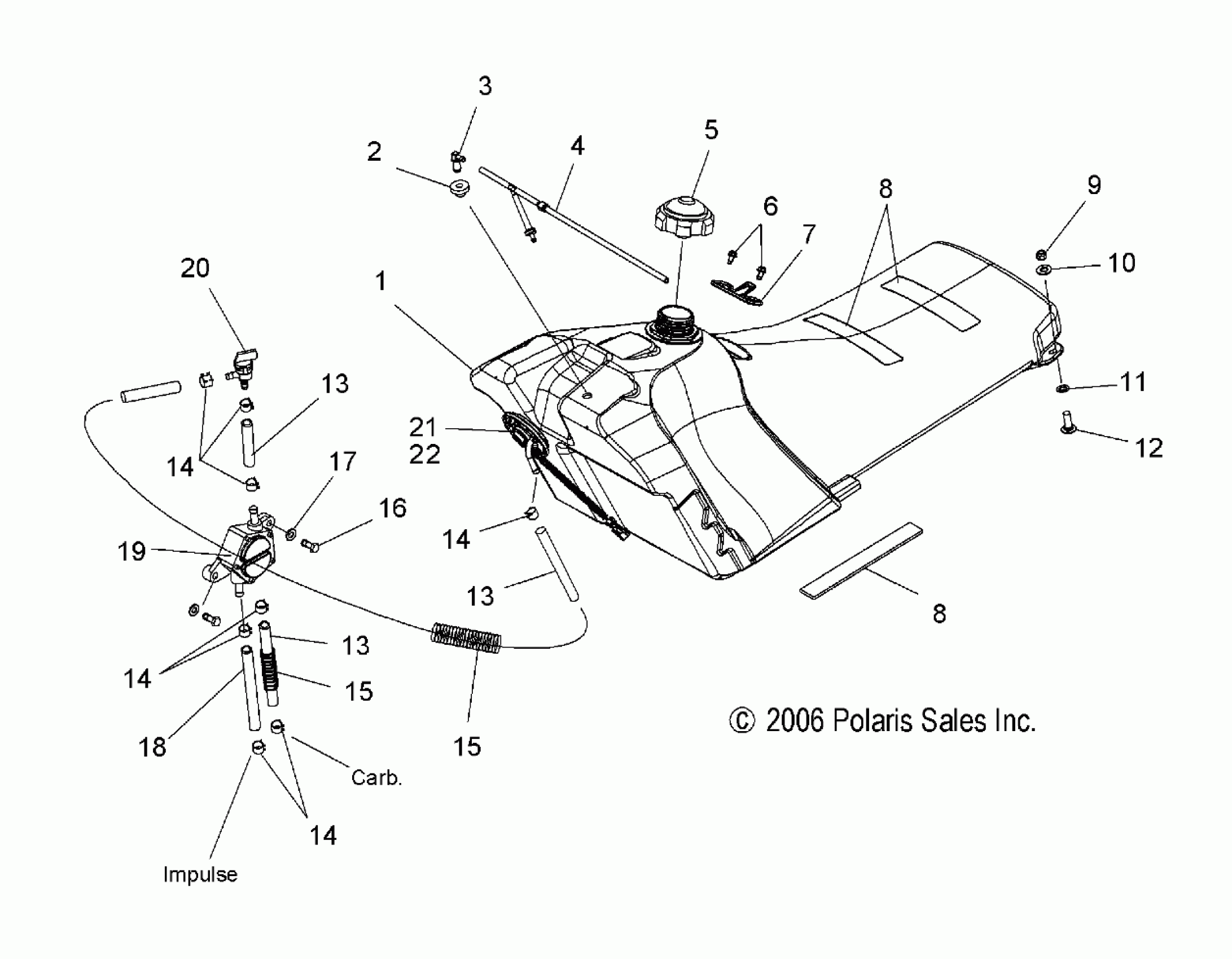

Polaris 600 HO SWITCHBACK F/O - S07PS6FS/FSA FUEL SYSTEM - S07PS6FS/FSA (49SNOW FUEL600SWTCH) Diagram

#

Description
Price

1

RING, COMPRESSION

7080768

$4.84

1

PICK-UP FUEL W/MESH

7052215

$49.99

1

Kit, Fuel Tank [Incl. 2,3,22]

2203555

$615.99

1

Tank, Fuel

2520637-070

Unavailable

2

Grommet, Flanged

7052362

$9.99

3

Fitting

7052380

Unavailable

4

Asm., Vent, Fuel Tank

2633187

$24.56

5

Cap, Gas w/Gauge

5435534

Unavailable

6

Screw

7512208

$3.99

7

BRACKET, SEAT MOUNT

5247431

$34.99

8

PAD-BATTERY

5810290

$7.27

8

PAD-BATTERY

5810290

$7.27

9

Nut, Nylok

7542122

$1.49

10

Washer, Flat

7555859

$1.49

11

RETAINER, BOLT

7670154

$1.49

12

BOLT

7515203

$3.99

13

Line, Fuel

8350017-160

Unavailable

13

Line, Fuel

8350017-160

Unavailable

13

Line, Fuel

8350017-160

Unavailable

14

HOSE CLAMP, RED

7080003

$1.49

14

HOSE CLAMP, RED

7080003

$1.49

14

HOSE CLAMP, RED

7080003

$1.49

14

HOSE CLAMP, RED

7080003

$1.49

15

TUBING, CONVOLUTED

8360052-305

Unavailable

15

TUBING, CONVOLUTED

8360052-305

Unavailable

16

Bolt

7512278

Unavailable

17

WASHER

7558302

$1.59

18

Line, Fuel

8450040-600

Unavailable

19

Pump, Fuel

2520694

Unavailable

20

Asm., Valve, Fuel

1253424

$44.99

21

Kit, HO Sending Unit [Incl. 22]

2203563

Unavailable

22

Kit, 600 IQ Tank Gasket [Incl. Gasket and Screws]

2203554

Unavailable
