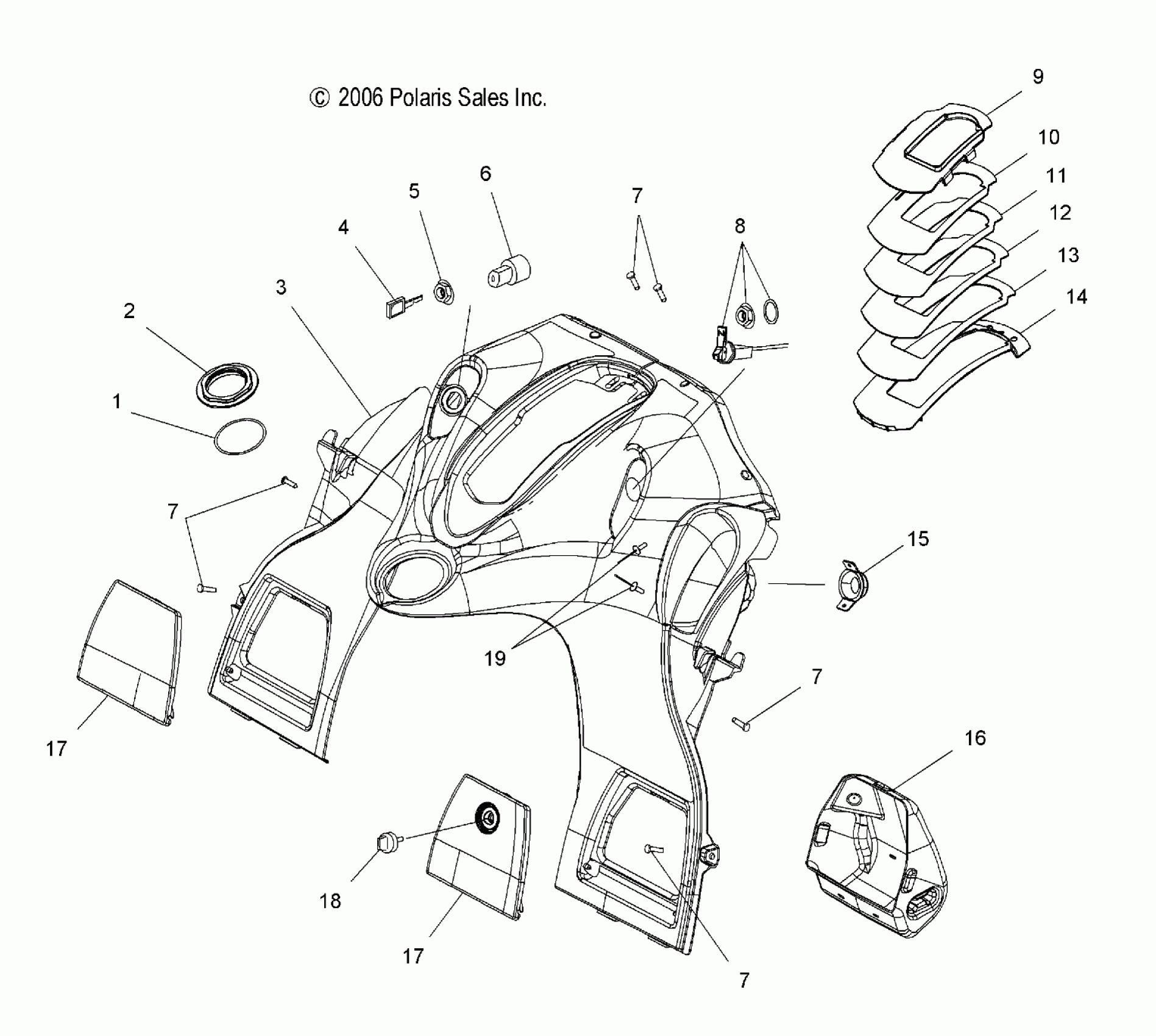

Polaris 600 HO SWITCHBACK F/O - S07PS6FS/FSA CONSOLE - S07PS6FS/FSA (49SNOWCONSOLE600SWTCH) Diagram

#

Description
Price

1

O-Ring

5411174

$1.60

2

Nut, Filler Neck

5435156

$4.79

3

Asm., Console, Black

2633082-070

$131.99

4

Cap w/Key NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on underside of switch body behind console. Key dot code found o

5410611

Unavailable

5

Nut, Ignition

7547035

$8.79

6

Kit, Ignition, Switch

2200358

$76.89

7

Screw

7517916

$6.39

7

Screw

7517916

$6.39

7

Screw

7517916

$6.39

7

Screw

7517916

$6.39

8

Nut, Choke

5432944

$8.79

8

Kit, Choke Lever Repair

2201439

$24.27

8

Washer

7556374

$1.49

8

Cable, Choke

7081354

$48.56

9

Cover, Adjustable Steering, Top

5436222

Unavailable

10

Plate, Adjustable Steering, 1

5436223

Unavailable

11

Plate, Adjustable Steering, 2

5436224

Unavailable

12

Plate, Adjustable Steering, 3

5436225

Unavailable

13

Plate, Adjustable Steering, 4

5436226

Unavailable

14

Cover, Adjustable Steering, Bottom

5436227

Unavailable

15

Bracket, Rope Guide

5248563

$34.99

16

Compartment, Storage, RH

5435944

$139.99

17

Asm., Door, Console, Black, RH

2632858-070

Unavailable

17

Door, Console, Black, LH

5435416-070

$40.46

17

Asm., Door, Console, Black, RH

2632858-070

Unavailable

17

Door, Console, Black, LH

5435416-070

$40.46

18

Key, Black

5435207-070

$12.99

19

Rivet

7621323

$1.49
