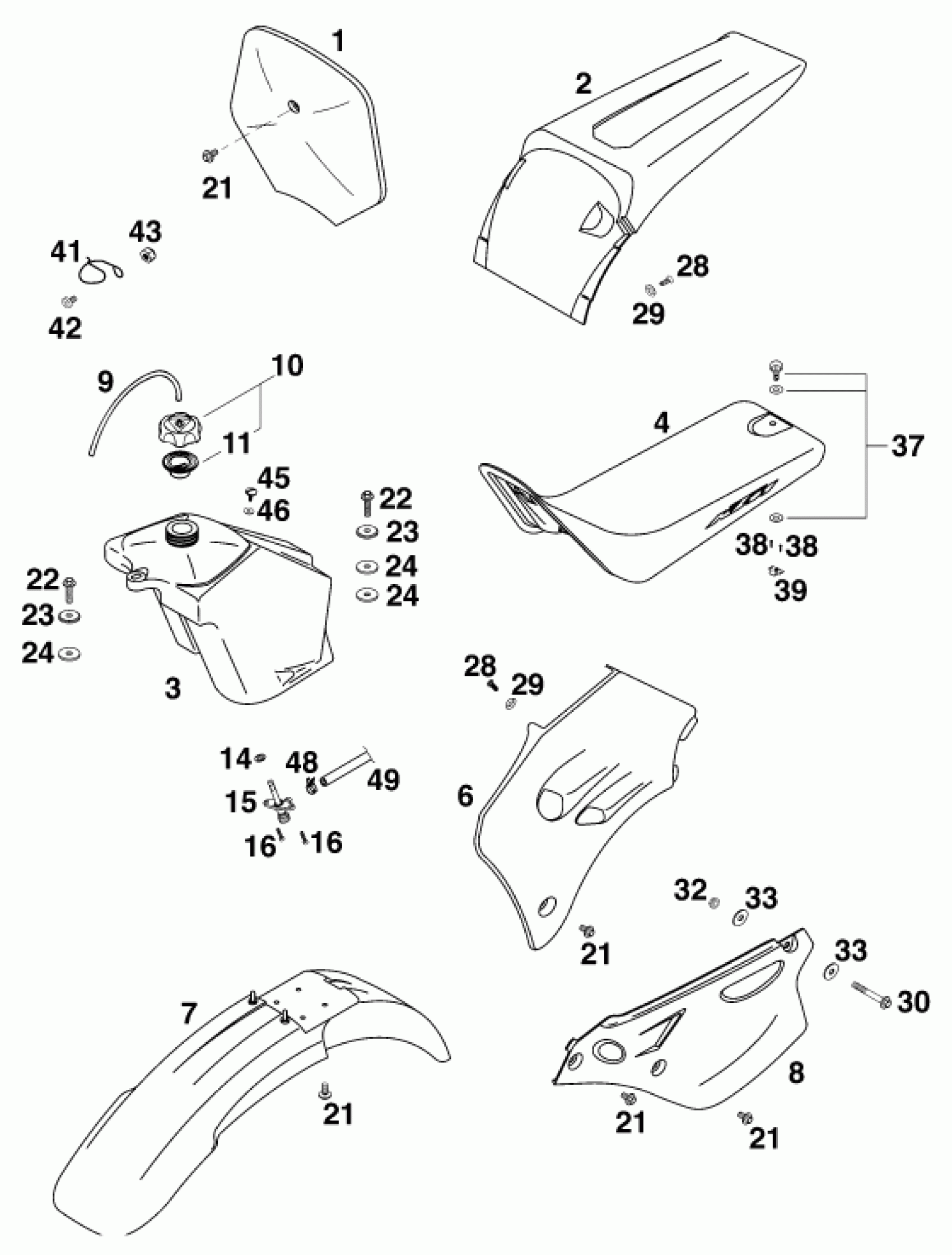

KTM 60 SX <1999> TANK, SEAT Diagram

#

Description
Price

0

SIDE COVER R/S SILVER 60/65

46008042000

$35.48

0

* SPOILER ORANGE R/S 60/65 '98

46008051000

Unavailable

1

START NUMBER PLATE 60/65 SX'98

46008007000

$18.92

2

* FENDER REAR SILVER 60/65

46008013000

Unavailable

3

FUEL TANK CPL. BLACK 60/65

46007013000

$129.98

4

SEAT BLACK/WHITE 60/65

46007040000

$71.26

6

SPOILER ORANGE L/S 60/65 '98

46008050000

$22.97

7

* FENDER FRONT ORANGE 60/65

46008010000

Unavailable

8

SIDE COVER L/S SILVER 60/65

46008041000

Unavailable

9

PVC-HOSE 6X9 MM PER METER

31007107001

Unavailable

10

FILLER CAP CPL. SMALL

49007008044

$23.65

11

% GASKET FOR FILLER CAP

49007009000

Unavailable

14

O-RING 11X1,8 NBR 70

55007006200

$2.05

15

FUEL COCK CPL. SM. RALLYE'96

58507003000

$26.55

16

SPECIAL SCREW Z 5X16

0016050153

$1.49

21

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

22

HH COLLAR SCREW M 6X25 WS=8

0014060253

$2.05

23

BUSHING 7,5X12X28X7,8 '96

54605069000

$6.07

24

INSOLATE WASHER 12X28X3

51005067100

$2.05

28

SPECIAL SCREW Z 5,5X16

0016055163

$1.49

29

WASHER 6MM

40006006000

$1.49

30

HH COLLAR SCREW M 6X45 WS=8

0015060453

$2.05

32

SELF LOCKING NUT M6

56509064000

Unavailable

33

Washer DIN9021-A 6.4

0021060003

$2.05

37

Quick lock

45007040051

$20.19

38

DUMMY RIVET 3,2X10 ALU

0011321000

$1.49

39

Past mount quick lock

45007040050

$4.11

41

GUIDE FOR BRAKE HOSE

58011008000

$3.88

42

OVAL HEAD SCR. DIN7985-M 5X10

0985050103

$1.49

43

Self locking nut DIN 985 M5

0985050003

$2.05

45

OVAL HEAD SCREW M6X15

58007044000

$4.35

46

WASHER DIN0125-A 6,4

0125060003

$1.49

48

CLAMP YDNAC 10128 12MM

58031005000

$3.08

49

FUEL HOSE VITON 7X2MM

58007016001

Unavailable
