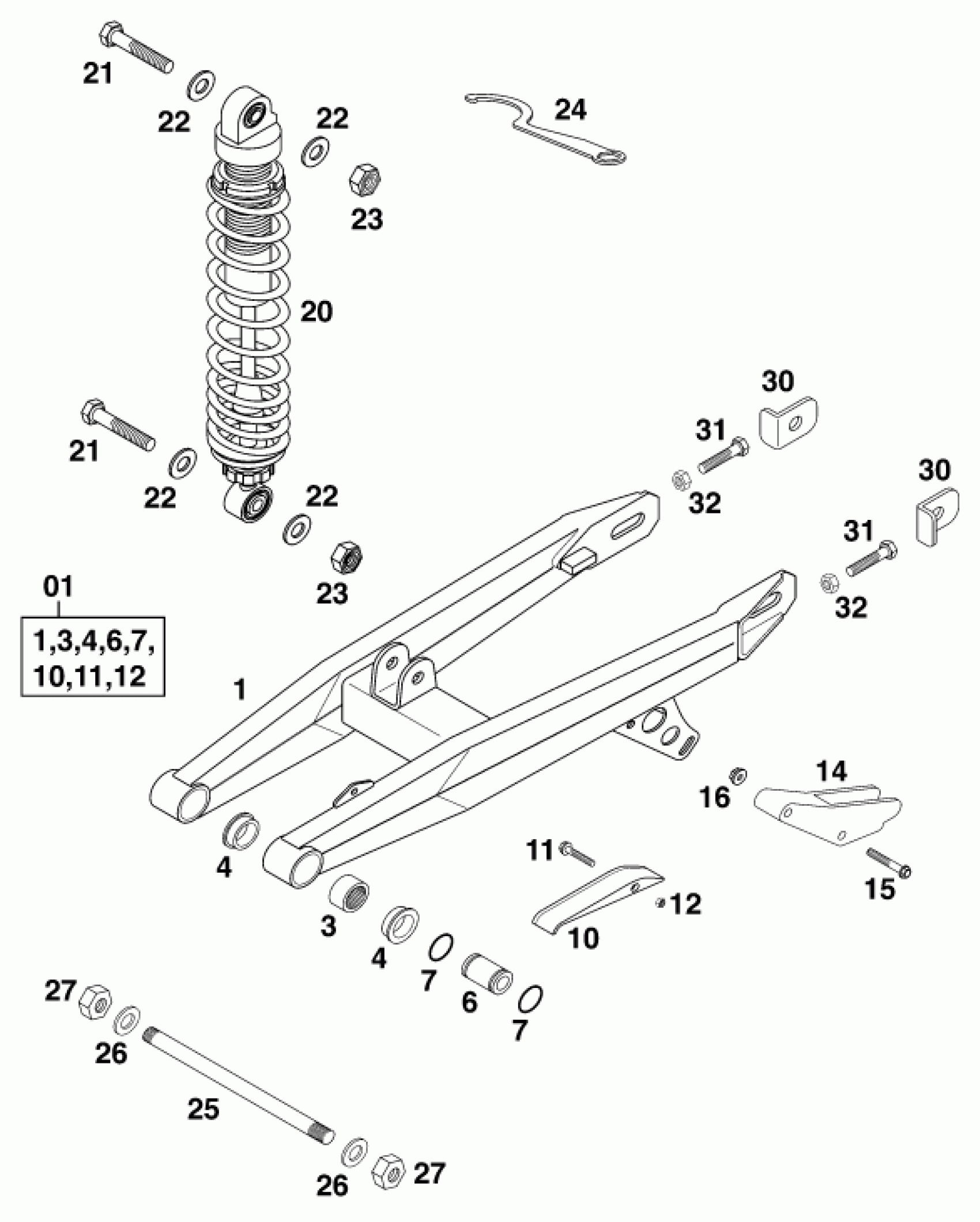

KTM 60 SX <1999> SWING ARM Diagram

#

Description
Price

1

% SWINGARM CPL. 60/65 CCM '

46004030044

Unavailable

3

Needle bushing HK 2016 / 20x26

54603097000

$15.04

4

Spacer bushing 20X26X30X9.7

46004030070

$3.08

6

Bearing bush 12x20x36.5

46004030071

$17.85

7

O-ring 16x2 Viton 75

0770160021

$3.08

10

CHAIN GUIDE FRONT

45004066000

$5.72

11

HH COLLAR SCREW M 5X30 WS=8

0015050303

$2.05

12

Self locking nut DIN 985 M5

0985050003

$2.05

14

CHAIN GUIDE REAR 60/65 '98

46007066000

$14.02

15

HH COLLAR SCREW M 6X40 WS=8

0015060403

$3.08

16

SELF LOCKING NUT M6

56509064000

Unavailable

20

MONOSHOCK PAIOLI MC48 60/65'

46004010000

Unavailable

21

HH SCREW DIN0931-M10X45

0931100453

$3.08

22

washer DIN 125 A 10.5

0125100003

$2.05

23

SELF LOCKING NUT DIN0985-M10

0985100003

$2.05

24

HOOK WRENCH FOR SHOCK ABSORBER

46012024000

$26.83

25

SWINGARM BOLT 201MM M12X1

46004037000

$23.39

26

FLAT WASHER DIN0125-A13

0125120003

$1.49

27

Nut M12x1 h10 WAF19 DIN 934

0934120103

$2.05

30

CHAIN ADJUSTER 60/65 '98

46010083000

$14.02

31

HH SCREW DIN0933-M 6X30

0933060303

$1.49

32

Hex. nut DIN 934 M6

0934060003

$1.49
