Description

Price

1

SHIFTING LEVER CPL. 60/65 CC

46034031000

Unavailable

2

SHIFT RAIL 10X83MM

46034020000

$9.50

3

SHIFT FORK COUNTERSHAFT

46034002000

$78.17

4

SHIFT RAIL 10X72MM

46034019000

$9.69

5

SHIFT FORK MAIN SHAFT

46034001000

$73.81

8

SHIFT SHAFT CPL.

46034005044

$89.55

9

SHIFT ROLLER CPL.W.DRUM LOCA

46034012100

Unavailable

10

SPACER WASHER 30X38 (SET)

46034091000

Unavailable

12

FLAT HEAD SCREW DIN7991-M 6X30

0991060303

$2.05

14

LOCKING LEVER SPRING

46034023000

Unavailable

15

LOCKING LEVER CPL.

46034024000

$36.24

16

* TAB WASHER DIN6799-RS10,0

0799100000

Unavailable

20

SHAFT SEAL RING 12X20X5 B

0760122050

$8.03

24

RETURN SPRING

46034014000

$5.23

25

PRESSURE SPRING SLIDER PLATE

46034009000

$3.08

26

AH SCREW DIN0912-M 6X20

0912060203

$2.05

27

TOOTH LOCK WASH. DIN6797-A 6,4

0797060003

$1.49

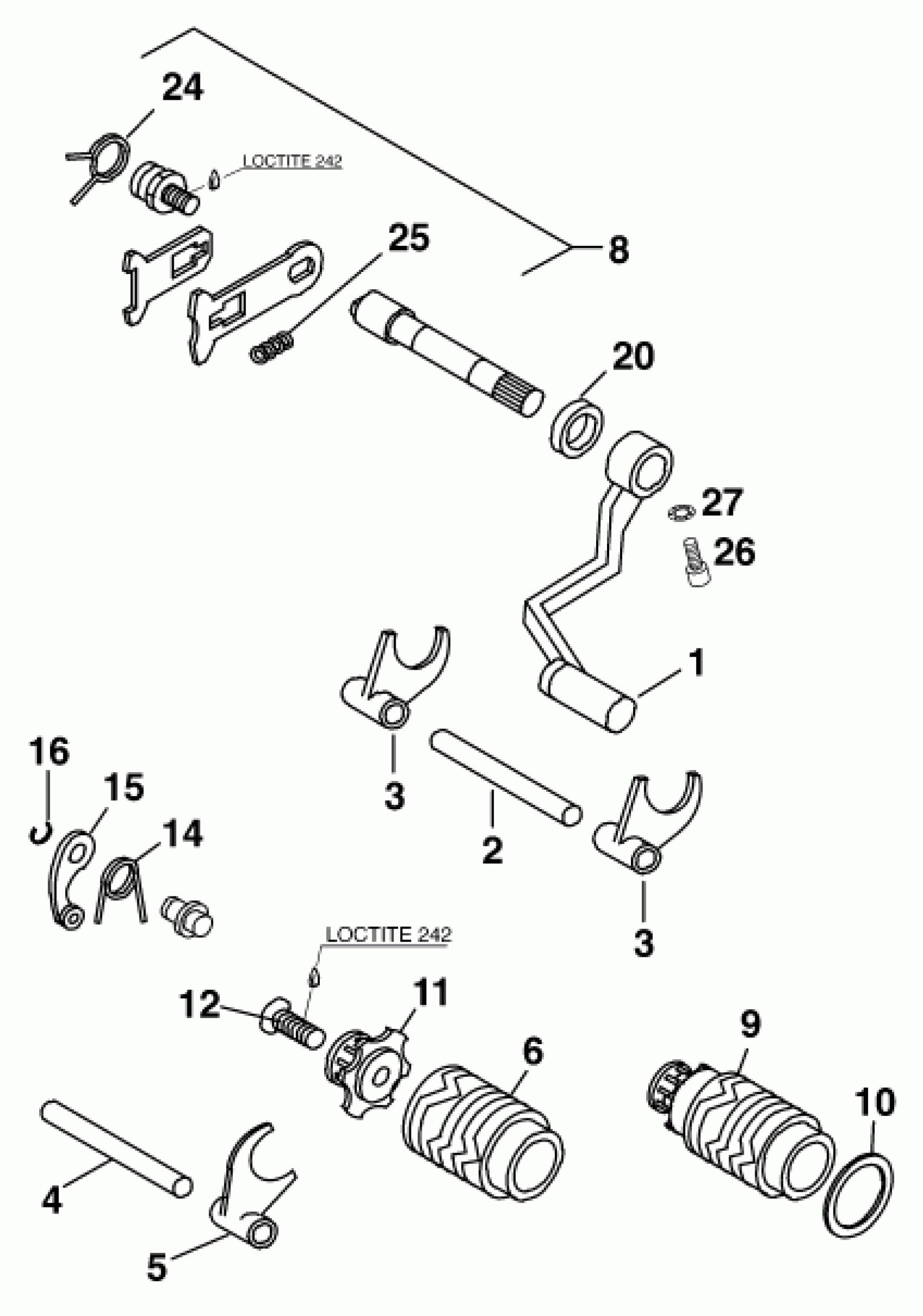

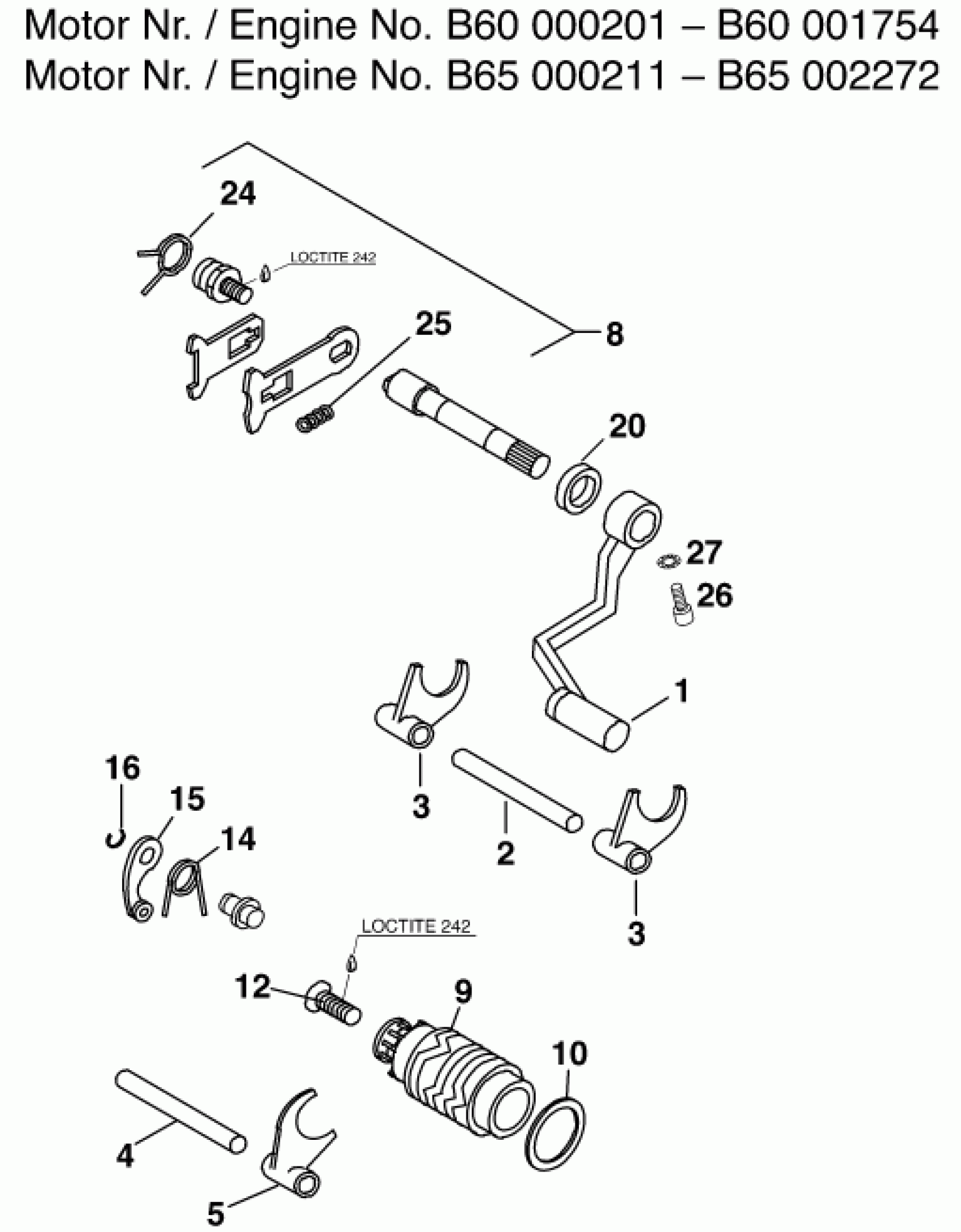

KTM 60 SX <1999 SHIFTING MECHANISM Diagram

SHIFTING LEVER CPL. 60/65 CC

SHIFT RAIL 10X83MM

SHIFT FORK COUNTERSHAFT

SHIFT RAIL 10X72MM

SHIFT FORK MAIN SHAFT

SHIFT SHAFT CPL.

SHIFT ROLLER CPL.W.DRUM LOCA

SPACER WASHER 30X38 (SET)

FLAT HEAD SCREW DIN7991-M 6X30

LOCKING LEVER SPRING

LOCKING LEVER CPL.

* TAB WASHER DIN6799-RS10,0

SHAFT SEAL RING 12X20X5 B

RETURN SPRING

PRESSURE SPRING SLIDER PLATE

AH SCREW DIN0912-M 6X20

TOOTH LOCK WASH. DIN6797-A 6,4
