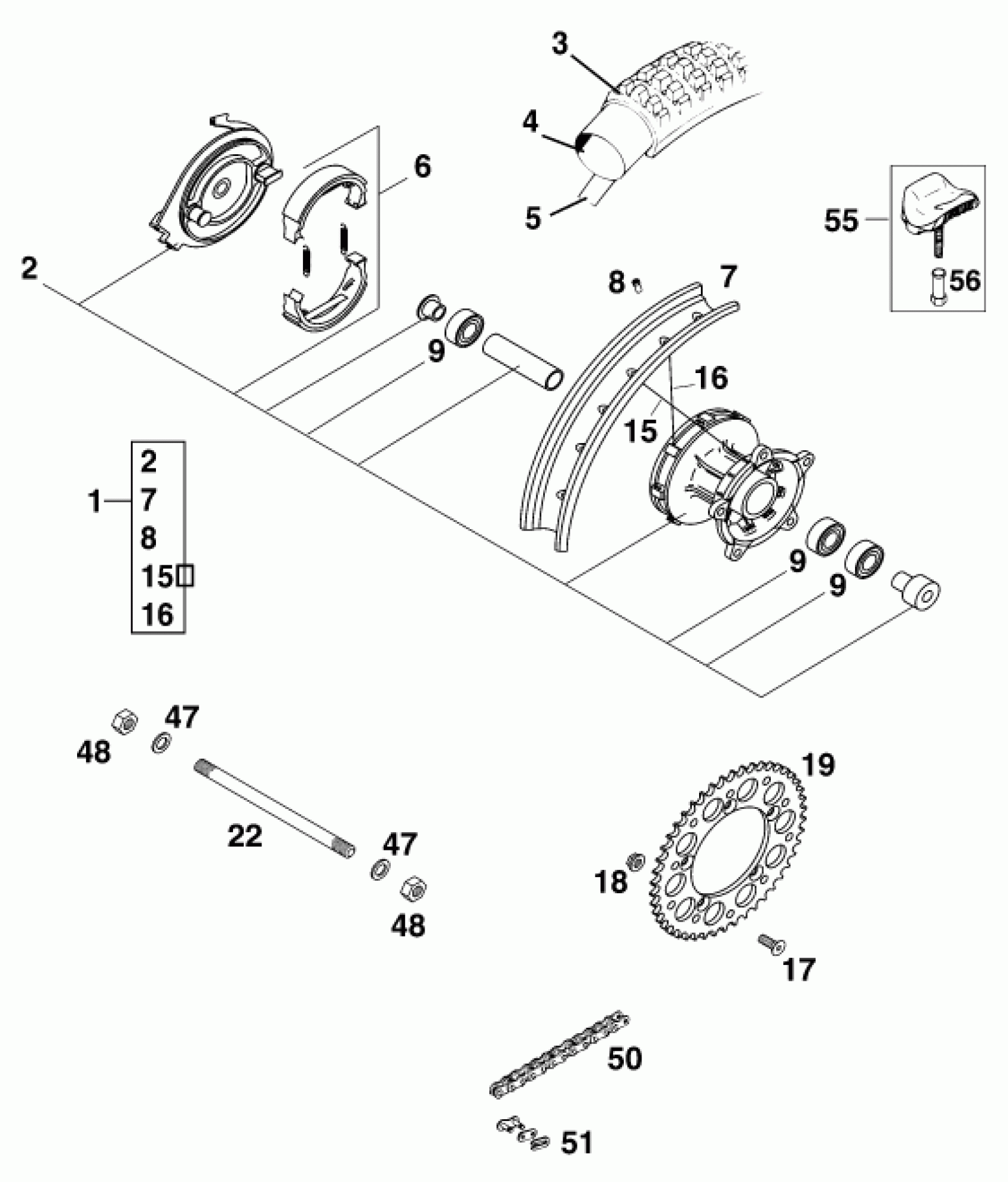

KTM 60 SX <1999 REAR WHEEL Diagram

REAR WHEEL CPL. 1,60X12" '98

46010001044

Unavailable

REAR WHEEL HUB CPL. SILVER '98

46010010044

$198.15

TYRE 80/100-12" 41M M40

46010074000

Unavailable

HOSE 3,00-12"

46010075000

Unavailable

RIM BAND 12''

46010073000

$5.05

BRAKE SHOES GARN. REAR

49010035000

$27.88

RIM REAR 1,6X12'' ALU

46010070000

$114.19

SPOKE NIPPLE M3,5

46009072000

Unavailable

GR.BALL BEAR. 6003-2RSH/C3HMTF

0625060037

$30.19

SPOKE M3,5X128-20G 12'' L/S

46010071000

$1.49

SPOKE M3,5X139-27G 12'' R/S

46010171000

Unavailable

FLAT HEAD SCREW DIN7991-M 8X25

0991080253

$3.08

54310086000

Unavailable

REAR SPROCKET 44-T

46010051044

Unavailable

REAR SPROCKET 46-T

46010051046

$62.64

AXLE 207MM M12X1

46010085000

$20.07

FLAT WASHER DIN0125-A13

0125120003

$1.49

Nut M12x1 h10 WAF19 DIN 934

0934120103

$2.05

CHAIN 1/2X1/4'' 108 ROLLEN

46010065108

Unavailable

CHAIN LOCK 1/2X1/4''

46010066000

$3.70

RIM LOCK VM1 (1,60'')

51009100100

$17.57

NUT FOR WHEEL HOLDER '96

50310090050

$5.23
