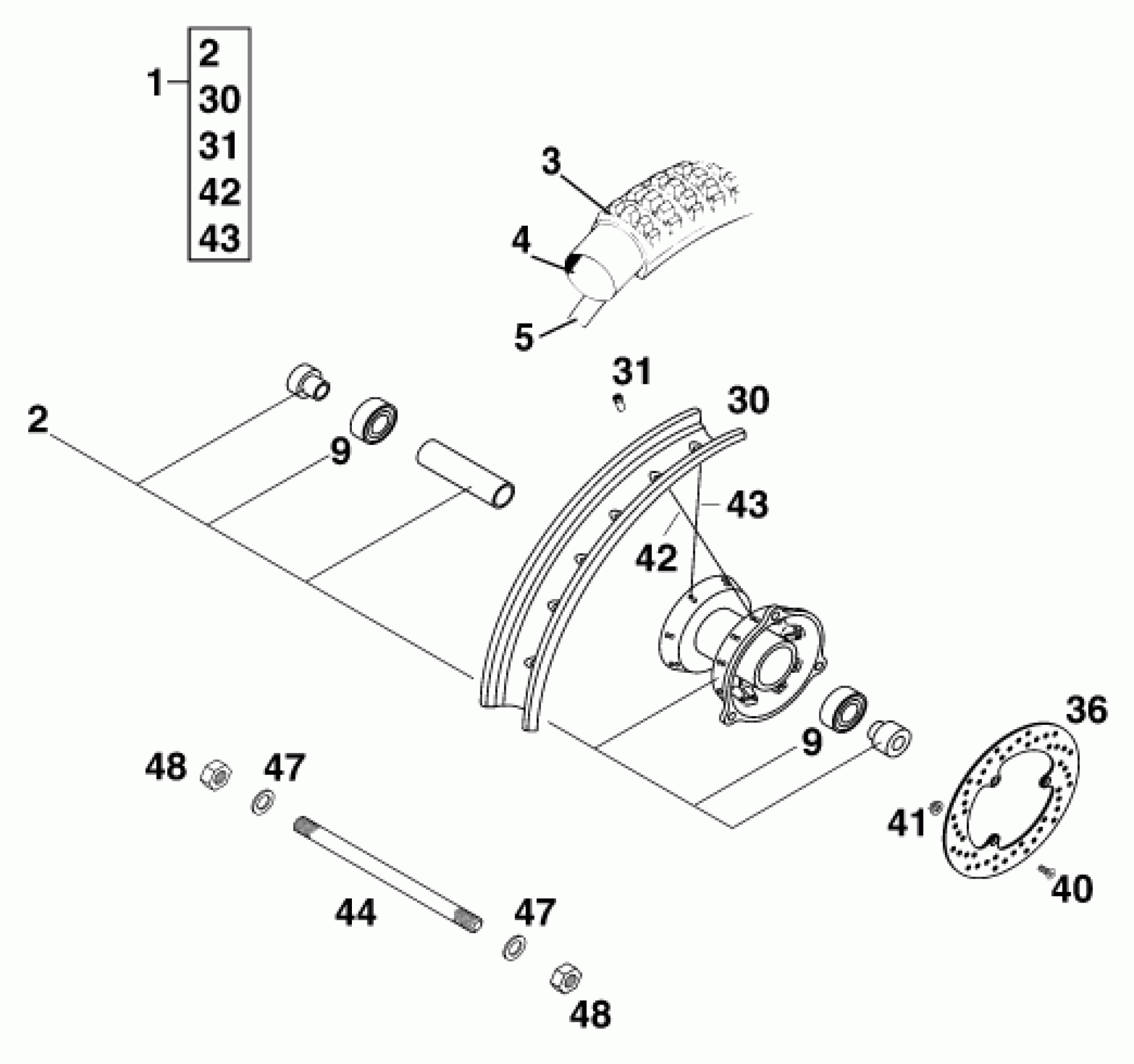

KTM 60 SX <1999> FRONT WHEEL Diagram

#

Description
Price

1

FRONT WHEEL CPL. 1,6X14'' '9

46009001044

Unavailable

2

FRT WHEEL HUB CPL. SILVER'98

46009010000

$180.96

3

TYRE 60/100-14" 30M M39

46009074000

Unavailable

4

HOSE 2,75X14''

46009075000

Unavailable

5

Rim band 14"

46009073000

$7.66

9

GR.BALL BEAR. 6003-2RSH/C3HMTF

0625060037

$30.19

30

RIM FRONT 1,6X14'' ALU

46009070000

$110.85

31

SPOKE NIPPLE M3,5

46009072000

Unavailable

36

BRAKE DISK FRONT 198MM '98

46009060000

$72.72

40

FLAT H.SCREW DIN7991-M6X20

0991060203

$2.05

41

SELF LOCKING NUT M6

56509064000

Unavailable

42

SPOKE M3,5X145MM

46009071000

$2.05

43

SPOKE M3,5X149MM

46009171000

$2.05

44

AXLE FRONT 194MM M12X1

46009081000

$25.58

47

FLAT WASHER DIN0125-A13

0125120003

$1.49

48

Nut M12x1 h10 WAF19 DIN 934

0934120103

$2.05
