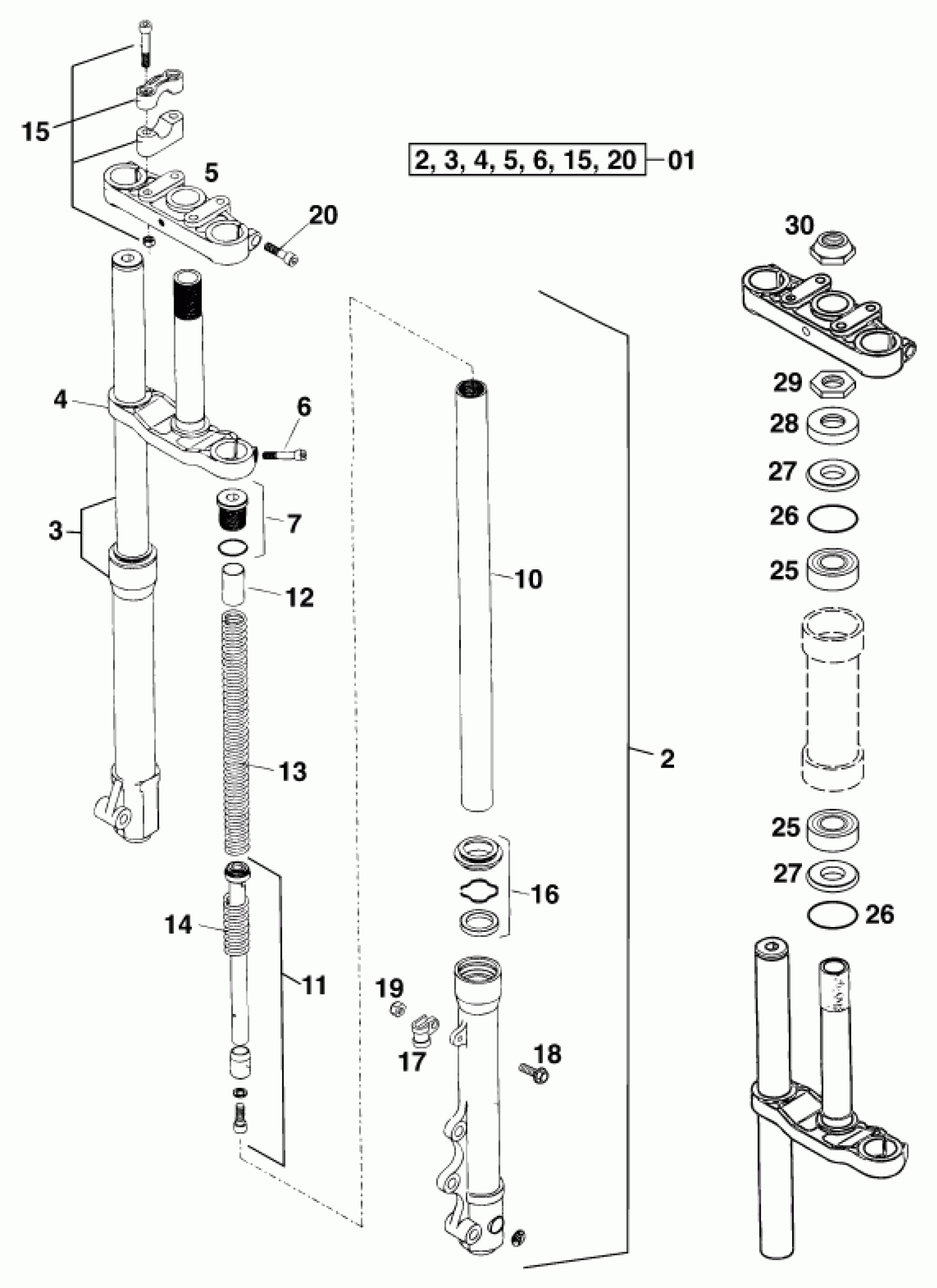

KTM 60 SX <1999> FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

% FORK CPL. D=32MM L=730MM '

46001000044

$397.16

2

FORK LEG L/S CPL.

46001001000

Unavailable

3

FORK LEG R/S CPL.

46001002000

Unavailable

4

BOT. TRIPLE CLAMP CPL. X=14M

46001032014

Unavailable

5

TOP TRIPLE CLAMP X=14MM

46001034014

Unavailable

6

AH SCREW DIN0912-M 8X25

0912080253

$2.05

7

* SCREW CAP CPL.

45001008000

Unavailable

10

FORK TUBE D=32MM

46001003000

$78.26

11

REP. SET CPL. FORK 60/65

46001010000

Unavailable

12

PRE LOAD BUSH L=115MM

46001022000

$5.80

13

* SPRING

45001021000

Unavailable

14

SPRING

45001050000

Unavailable

15

HANDLEBAR CLAMP CPL.

45001038044

$57.80

16

SEAL KIT

45001014000

$25.56

17

BRAKE CABLE CLAMP RSGU 9/12

45001070000

$5.23

18

HH COLLAR SCREW M 5X16 WS=8

0015050163

$2.05

19

Self locking nut DIN 985 M5

0985050003

$2.05

20

AH SCREW DIN0912-M 8X30

0912080303

$2.05

25

TAPERED ROLLER BEARING 32004X

49001081000

$42.16

26

O-RING 36,00X3,00 NBR

0770360030

$2.05

27

PROTECTION RING 20,1X39X5

46001086000

$8.59

28

COVERING CAP

49001086000

$6.72

29

STEERING HEAD NUT M20X1,5

46001043000

$7.56

30

CONE NUT M20X1,5

46001042000

$7.98
