Description

Price

1

ENGINE CASE CPL.W.TRAN.BEAR'98

46030000044

$461.94

2

CLUTCH COVER CPL. 60/65 '98

46030001000

$135.36

3

ENGINE CASE GASKET 60/65

46030039000

$7.28

4

CLUTCH COVER GASKET INSIDE

46030025000

$14.67

5

WATER PUMP COVER 60/65 '98

46035052000

$97.42

6

PLUG M 24X3

58030020000

$5.23

7

ANGLE PIECE 90 DEGREE M10X1

51030022000

$5.23

15

O-RING

46035053000

Unavailable

16

OIL DRAIN PLUG M10 WS=14

46030021000

Unavailable

17

INSPECTION LENS TRANSM. OIL

46030095000

Unavailable

18

FLAT H.SCREW DIN7991-M6X20

0991060203

$2.05

22

SUPPORT FOR CLUTCH CABLE

46032059000

Unavailable

23

O-RING 16,00X3,00 NBR 70

0770160030

$2.05

26

DOWEL 17X15

46030023100

$8.36

27

DOWEL 12X14,5

46030023000

$7.31

28

DOWEL 9X15

46030024000

$17.76

29

CU-SEAL RING DIN7603-10X16X1

42013226000

$2.05

33

PLUG M6X7

46035061000

$4.44

34

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

40

PVC-HOSE 5 X 8 MM

31007007001

Unavailable

41

AH SCREW DIN0912-M 6X16

0912060163

$1.49

42

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

50

GASKET SET CPL. 60/65 CCM

46030099000

$119.44

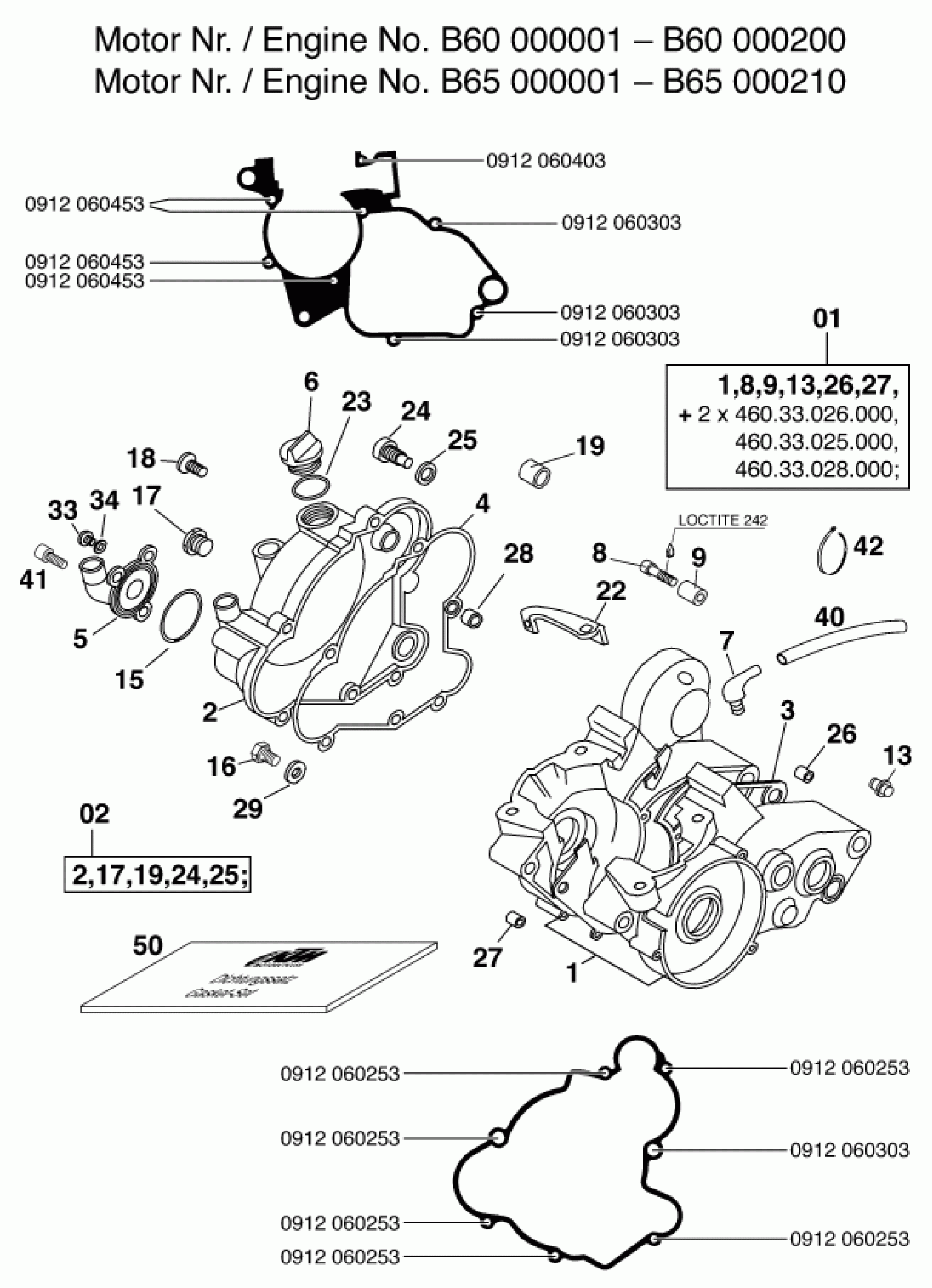

KTM 60 SX <1999 ENGINE CASE Diagram

ENGINE CASE CPL.W.TRAN.BEAR'98

CLUTCH COVER CPL. 60/65 '98

ENGINE CASE GASKET 60/65

CLUTCH COVER GASKET INSIDE

WATER PUMP COVER 60/65 '98

PLUG M 24X3

ANGLE PIECE 90 DEGREE M10X1

O-RING

OIL DRAIN PLUG M10 WS=14

INSPECTION LENS TRANSM. OIL

FLAT H.SCREW DIN7991-M6X20

SUPPORT FOR CLUTCH CABLE

O-RING 16,00X3,00 NBR 70

DOWEL 17X15

DOWEL 12X14,5

DOWEL 9X15

CU-SEAL RING DIN7603-10X16X1

PLUG M6X7

CU-SEAL RING DIN7603-6X10X1

PVC-HOSE 5 X 8 MM

AH SCREW DIN0912-M 6X16

CABLE TIE 100/2,5MM BLACK

GASKET SET CPL. 60/65 CCM
