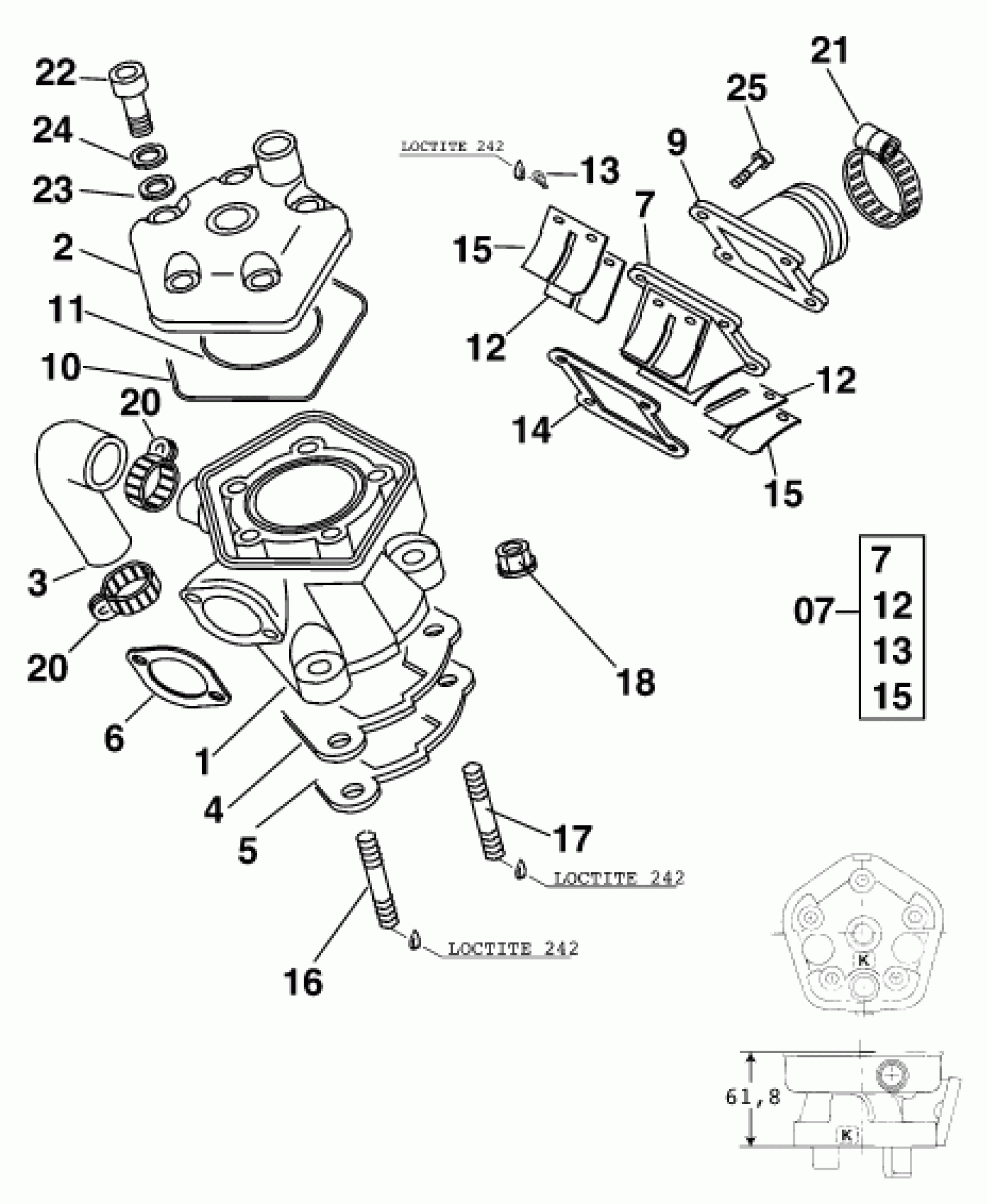

KTM 60 SX <1999> CYLINDER Diagram

#

Description
Price

1

CYLINDER W.PISTON 43,5MM ''K''

46030005000

Unavailable

1

CYLINDER W.PISTON 45MM ''K''

46030005500

Unavailable

2

CYLINDERHEAD ''K'' 60CCM '99

46030006100

$189.59

2

CYLINDERHEAD ''K'' 65CCM '99

46030006600

$176.53

3

PRE-FORM.HOSE CYL.-CLUTCH COV.

46035027000

$8.13

4

CYLINDER BASE GASKET 0,5 MM

46030035050

Unavailable

5

CYLINDER BASE GASKET 0,2 MM

46030035020

Unavailable

6

EXHAUST GASKET 60/65 CCM

46030046000

$7.28

7

MEMBRANE HOUSING CPL.60/65 CCM

46030051044

$81.28

9

INTAKE FLANGE

46030050000

$68.65

10

O-RING 94,97X1,78

46030037000

$7.16

11

O-RING 53,7X1,78 VITON

46030036000

$9.06

12

MEMBRANE LOOSE 60/65 CCM

46030052000

$16.24

13

FLAT HEAD SCREW DIN7985-M 3X6

0985030063

$1.49

14

INTAKE VALVE GASKET

46030049000

$2.27

16

STUD M8X41

46030043000

$5.79

17

STUD M8X44

46030043100

$4.87

18

HH COLLAR NUT M 8 WS=12

50330045000

$2.05

20

HOSE CLAMP GEMI 18-29

10001020000

$2.05

21

HOSE CLAMP 32-52MM D5

31001027000

$5.83

22

AH BOLT M 7X34,5 8,8

49030079000

$2.40

23

CU-SEAL RING 7,3 X 12 X 0,5

50230032010

$1.49

24

WASHER DIN0125-A 7,4

0125070003

$1.49

25

AH SCREW DIN0912-M 6X20

0912060203

$2.05
