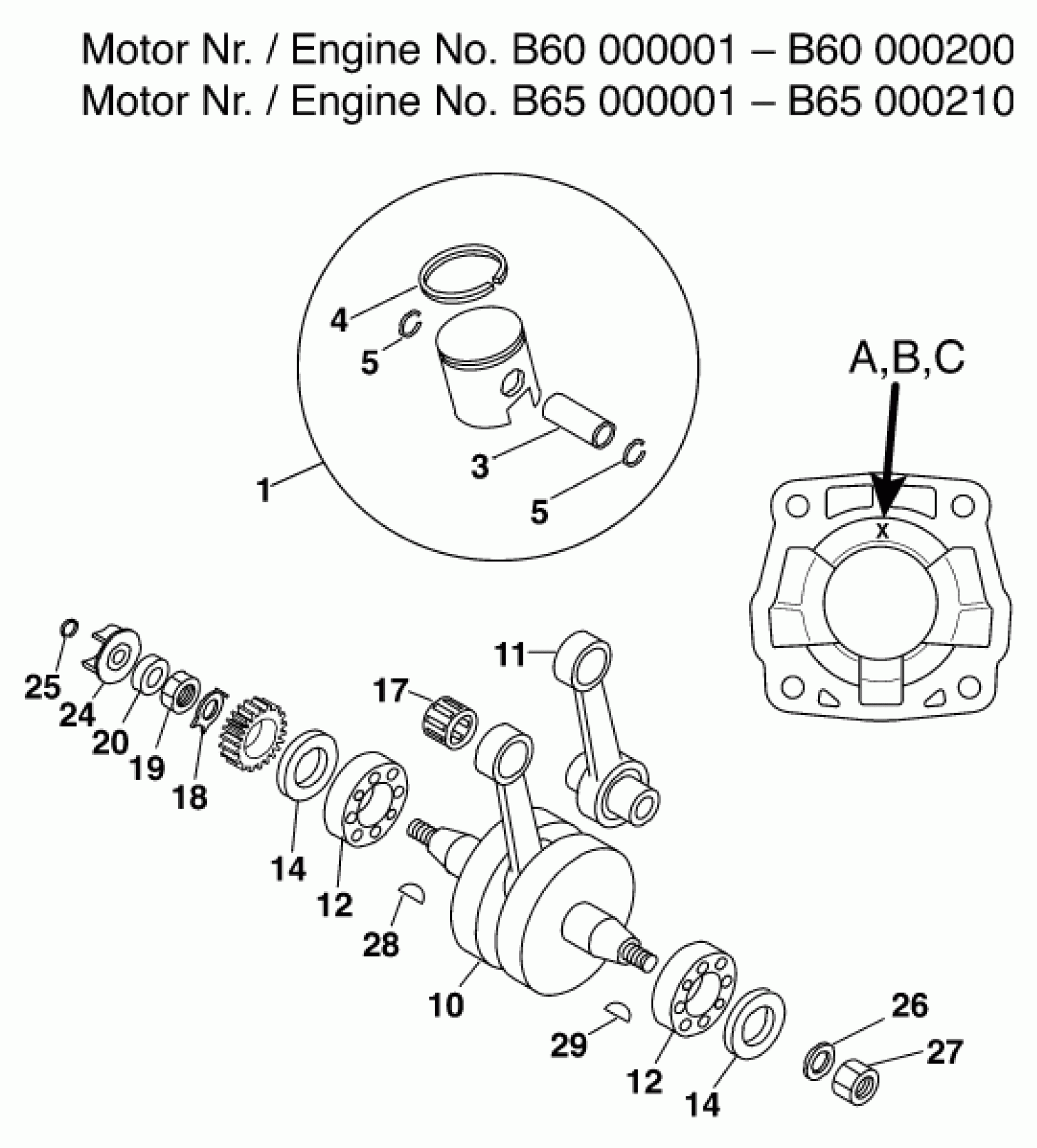

KTM 60 SX <1999 CRANKSHAFT, PISTON Diagram

#

Description
Price

1

PISTON CPL. 43,5MM ''A'' 60'

46030007000 A

Unavailable

1

PISTON CPL. 43,5MM ''B'' 60'

46030007000 B

Unavailable

1

PISTON CPL. 43,5MM ''C'' 60'98

46030007000 C

Unavailable

1

PISTON CPL. 45MM ''A/B'' 65'

46030007500 A

Unavailable

1

PISTON CPL. 45MM ''B'' 65'

46030007500 B

Unavailable

1

PISTON CPL. 45MM ''C/D'' 65'

46030007500 C

Unavailable

3

PISTON PIN 12X38

46030033000

$14.11

4

PISTON RING 43,5MM 60CCM

46030030000

Unavailable

4

PISTON RING 45MM 65CCM

46030030500

$47.58

5

CIRCLIP 12X1

46030074000

Unavailable

10

CRANKSHAFT CPL. STR 40MM'98

46030018000

$331.68

11

CONN. ROD REPAIR SET 60/65 CCM

46030015000

$220.60

12

GROOVED BALL BEARING 20X52X1

46030082000

Unavailable

14

SHAFT SEAL RING 20X35X6

46030077000

Unavailable

17

NEEDLE BEAR.PISTONPIN 12X15X17

46030034000

$13.55

18

LOCKING PLATE D=14MM

46030078000

$4.11

19

HH NUT 14X1,25X7 WS=22

46030029000

$9.72

20

SHAFT SEAL RING 10X22X7

46035056000

$6.38

24

WATER PUMP WHEEL 60/65 CCM

46035055000

$8.21

25

CIRCLIP DIN0471- 9X1

0471090010

$2.05

26

SPRING RING DIN0127-B10

0127100003

$1.49

27

HH NUT M10X1,25X17 WS=15

46030028000

$12.99

28

WOODRUFF KEY DIN6888-3X5X13

0888030050

$2.05

29

WOODRUFF KEY 3X3,7X9,7

46030075000

$3.08
