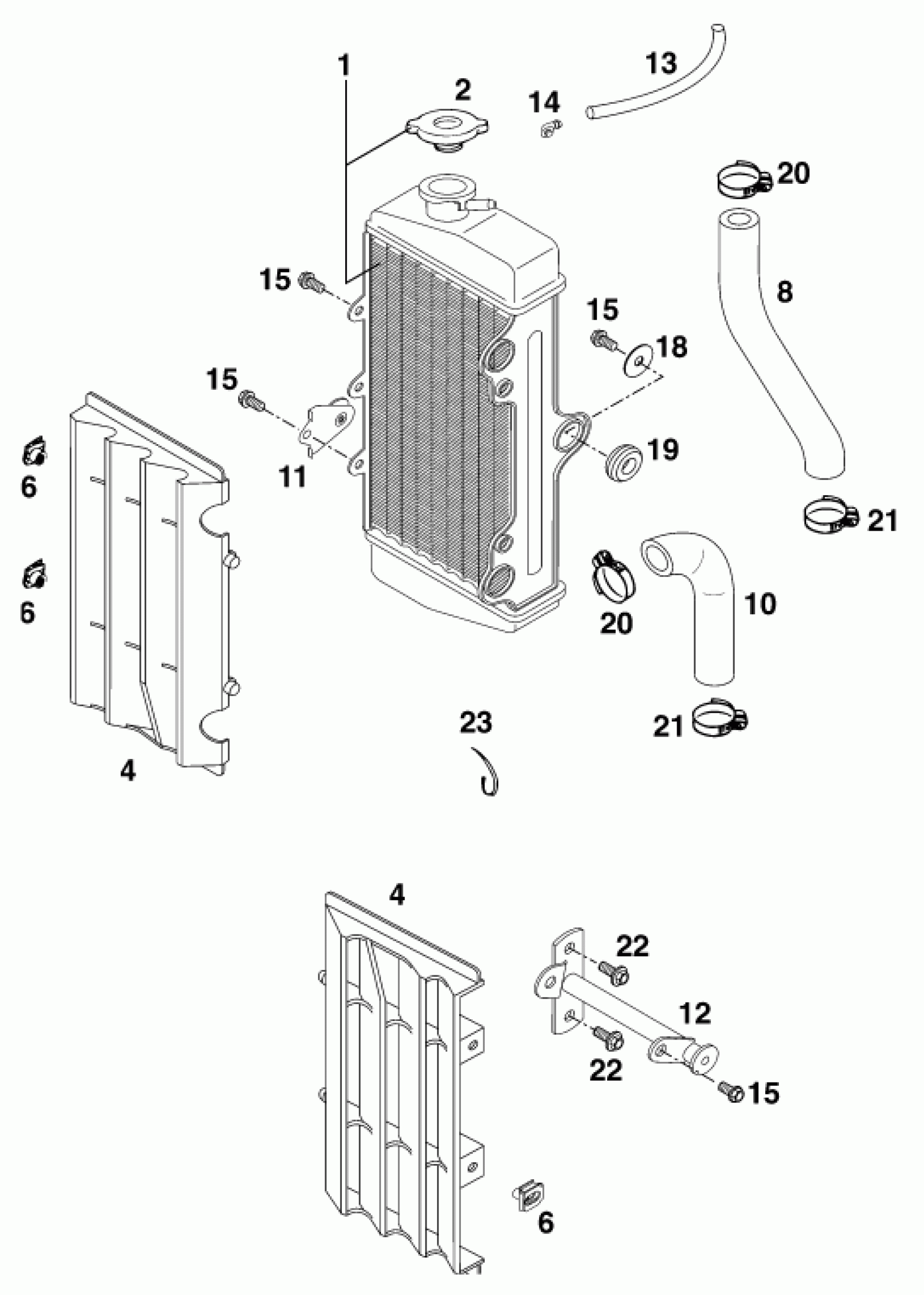

KTM 60 SX <1999> COOLING SYSTEM Diagram

#

Description
Price

0

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

1

RADIATOR R/S (45301) 60/65CCM

46035008000

$202.30

2

RADIATOR CAP SMALL 20,3 PSI

58035016000

$25.70

4

RADIATOR PROTECTOR L/S 60165

54535034000

$11.36

6

SNAP-NUT HOLDER M6 KP142

50235033300

$4.11

8

PREFORMED HOSE 18X25 LONG

46035025000

$5.16

10

PREFORMED HOSE 18X25 SHORT

46035026000

$13.19

11

BRACKET FOR SPOILER R/S

46008153000

$14.04

12

BRACKET FOR SPOILER L/S

46008053000

$18.17

13

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

14

ANGLE PIECE '97

50303089000

$5.23

15

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

18

Washer DIN9021-A 6.4

0021060003

$2.05

19

RUBBER SLEEVE D=12MM

41001052000

$4.11

20

HOSE CLAMP GEMI 18-29

10001020000

$2.05

21

HOSE CLAMP GEMI 12/22

10001020100

Unavailable

22

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

23

Cable tie 200/4.6mm black

44011076200

Unavailable
