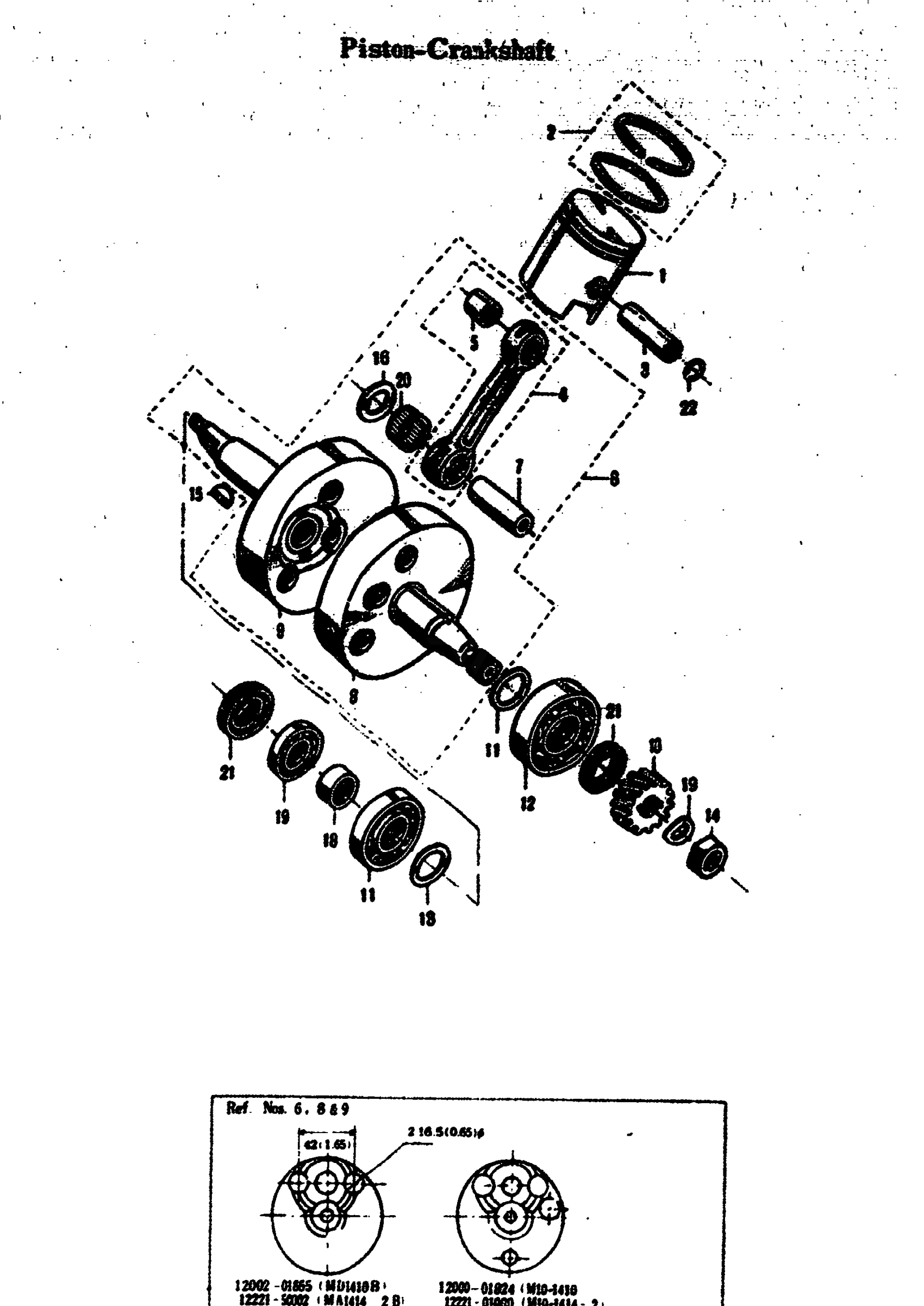

Find the part on the Piston-Crankshaft diagram for your 1968 Suzuki 50M12, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1968 Suzuki 50M12 Piston-Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PISTON | M12MARK2,M15D,M12 FOR KTYPE RING

12110-01601

—
Out of stock

1

NO DESCRIPTION AVAILABLE | M12MARK2,M15D,M12 OVER0.02) FOR KEY-STONE TYP This part replaces 12110-01721.

12110-01601-050

—
Out of stock

1

PISTON | M12MARK2,M15D,M12 OVER0.04) FOR KEY-STONE TYP

12110-01740

—
Out of stock

2

PISTON RING SET | M12MARK2 KEY-STONE TYPE This part replaces 12140-01600.

12140-05100

1
Out of stock

2

PISTON RING SET | STANDARD SQUAR-FACED TYE.NO.M10-425199

12140-01010

—
Out of stock

2

PISTON RING SET | M12MARK2 OVER SIZE 0.5(-STONE TYPE

12140-01760

1
Out of stock

2

NO DESCRIPTION AVAILABLE | OVER SIZE 0.5(0.02) SQ TYPE This part replaces 12140-01700.

12140-01010-050

—
Out of stock

2

NO DESCRIPTION AVAILABLE | M12MARK2 OVER SIZE 1.0(-STONE TYPE This part replaces 12140-01770.

12140-01600-100

1
Out of stock

2

PISTON RING SET | OVER SIZE 1.0(0.04) SQU TYPE

12140-09829

—
Out of stock

3

PIN, PISTON | M12MARK2,M15D,M12 O.D.=L=34(1.34) This part replaces 12151-02000.

12151-04700

1
Out of stock

4

CONNECTING ROD COMP | M12MARK2,M15D,M12

12160-01003

—
Out of stock

5

CONNECTING ROD SMALL END BUSH | M12MARK2,M15D,M12 O.D.=I.D.=12(0.47) W=12(0.47)

12162-50001

1
Out of stock

5

CONNECTING ROD SMALL END BUSH | O.D.=17(0.67) I.D.=12(0.0.47)

09300-12002

—
Out of stock

6

CRANKSHAFT ASS'Y | M12MARK2,M12

12000-01824

—
Out of stock

6

CRANKSHAFT ASS'Y | E.NO.M10-283012

12002-01865

—
Out of stock

7

CRANK PIN | M12MARK2,M15D,M12 OD=16(0(1.57)

12211-01001

—
Out of stock

8

RIGHT CRANKSHAFT | M12MARK2,M15D,M12

12221-01000

—
Out of stock

8

RIGHT CRANKSHAFT | UP TO E.NO.M10-283012

12221-50002

—
Out of stock

9

LEFT CRANKSHAFT | M12MARK2,M12 L=101.5(4.0

12261-01000

—
Out of stock

9

LEFT CRANKSHAFT | .5(4.00) UP TO E.NO.M10-

12261-50162

—
Out of stock

10

PRIMARY PINION | M12MARK2,M15D,M12 NI=15

21111-01001

—
Out of stock

11

BEARING, DRIVE SHAFT RH This part replaces 08113-62030.

09262-17023

1
Out of stock

12

BALL BEARING

08113-63030

1
Out of stock

13

WASHER (17X24X0.5) This part replaces 08221-17245.

09181-17130

1
Out of stock

14

NUT This part replaces 08311-11108.

08310-00107

1
Out of stock

15

KEY

08341-31039

1
Out of stock

16

CONNECTING ROD THRUST WASHER | M12MARK2,M15D,M12 OD=32(6(0.63) T=1.0(0.04) CHRO

09160-16011

2
Out of stock

17

PRIMARY PINION SPRING WASHER | M12MARK2,M15D,M12

09164-11001

—
Out of stock

18

LEFT CRANKSHAFT SPACER | M12MARK2,M15D,M12 OD=21.D=17(0.67) L=10(0.39)

09180-17010

—
Out of stock

19

BALL BEARING | M12MARK2,M15D,M12

09262-17009

—
Out of stock

20

BEARING, 16X22X11.8 | M12MARK2,M15D,M12 This part replaces 09263-16002.

09263-16034

1
Out of stock

21

CRANKSHAFT OIL SEAL | M12MARK2,M15D,M12 OD=29(=16(0.63) W=7(0.28)

09283-17001

2
Out of stock
