1968 Suzuki 50M12 Kick Starter Diagram

← All diagrams

Find the part on the Kick Starter diagram for your 1968 Suzuki 50M12, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

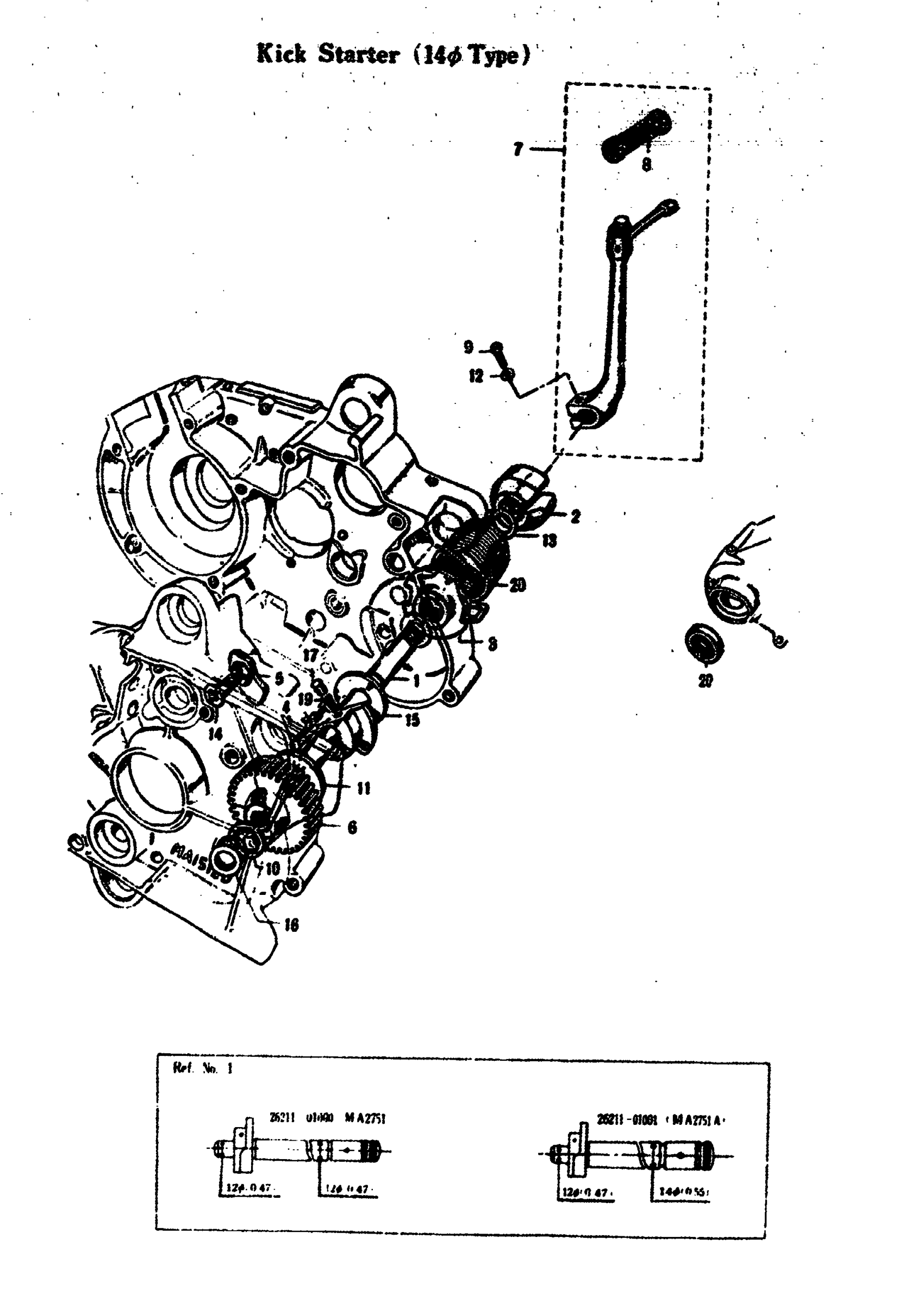

1968 Suzuki 50M12 Kick Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

KICK STARTER SHAFT | M12MARK2,M15D,M12

26211-01001

—
Out of stock

2

GUIDE, RETURN SPRING | M12MARK2,M15D,M12M12MARK2,M15D,M12 This part replaces 26221-01001.

26221-01030

1
Out of stock

3

KICK STARTER SHAFT RETURN SPR | M12MARK2,M15D,M12M12MARK2,M15D,M12

26222-01001

1
Out of stock

4

KICK STARTER SHAFT PAWL | M12MARK2,M15D,M12

26231-01000

1
Out of stock

5

KICK STARTER STOPPER | M12MARK2,M15D,M12

26232-01000

1
Out of stock

6

KICK STARTER PINION | M12MARK2,M15D,M12 NT=34

26241-01000

—
Out of stock

7

LEVER ASSY,KICK | M15D This part replaces 26300-03002.

26300-35553

1
Out of stock

8

RUBBER,KICK STA | M12MARK2,M15D,M12 This part replaces 26352-01000.

26352-01020

1
Out of stock

9

BOLT This part replaces 01112-06258.

01500-06257

1
Out of stock

10

SHIM (12X20X1) This part replaces 08211-12201.

09181-12167

1
Out of stock

11

KICK STARTER SHAFT INSER THRU

08211-12302

1
Out of stock

12

LOCK WASHER This part replaces 08321-21058.

08321-0105A

1
Out of stock

13

CIRCLIP, SHIFT SHAFT This part replaces 08331-11149.

08331-3114A

1
Out of stock

14

KICK STARTER STOPPER SCREW | M12MARK2,M15D,M12

09139-06002

1
Out of stock

15

WASHER (14X29X1.5) | M12MARK2,M15D,M12 OD=29=14(0.55) T=1.5((0.06) This part replaces 09160-14005.

09160-14046-XC0

1
Out of stock

16

KICK STARTER PINION ADJUSTING | M12MARK2,M15D,M12 OD=20=12(0.47) T=0.3((0.01)

09181-12001

—
Out of stock

17

KICK STARTER SHAFT PAWL ROLLE | M12MARK2,M15D,M12 OD=5((0.31)

09202-05003

1
Out of stock

18

OIL SEAL (14X24X6) | M12MARK2,M15D,M12 OD=24=14(0.55) W=6(0.24) This part replaces 09285-14001.

09285-14002

1
Out of stock

19

KICK STARTER SHAFT PAWL SPRIN | M12MARK2,M15D,M12

09440-04003

1
Out of stock

20

KICK STARTER SHAFT RETURN SPR | M12MARK2,M15D,M12

09448-38001

—
Out of stock
