1968 Suzuki 50M12 Kick Starter Diagram

← All diagrams

Find the part on the Kick Starter diagram for your 1968 Suzuki 50M12, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

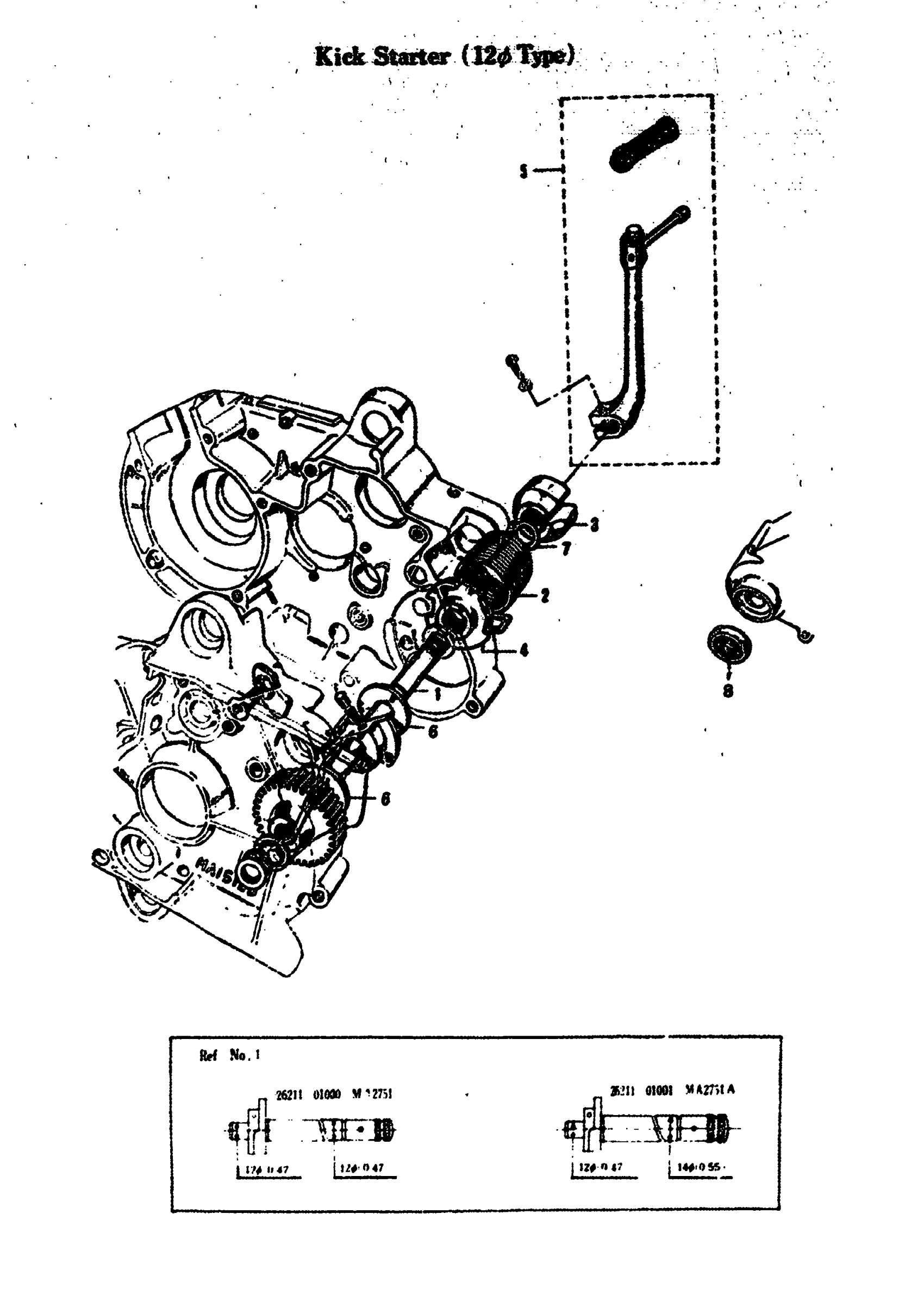

1968 Suzuki 50M12 Kick Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

KICK STARTER SHAFT

26211-01000

—
Out of stock

2

SPRING This part replaces 26218-01000.

09448-38002

1
Out of stock

3

KICK STARTER SHAFT RETURN SPR

26221-01000

—
Out of stock

4

KICK STARTER SHAFT RETURN SPR

26222-01000

—
Out of stock

5

KICK STARTER LEVER ASS'Y

26300-03001

1
Out of stock

6

KICK STARTER SHAFT THRUST WAS

08211-12302

2
Out of stock

7

CIRCLIP This part replaces 08331-11129.

08331-3112A

1
Out of stock

8

OIL SEAL (12X22X9) | OD=22(0.87) ID=12(0.47) This part replaces 09285-12001.

09285-12006

1
Out of stock
← Cylinder-AIR Cleaner-Carburetor-Muffler-Kick Starter Lever Kick Starter →

More Engine diagrams
