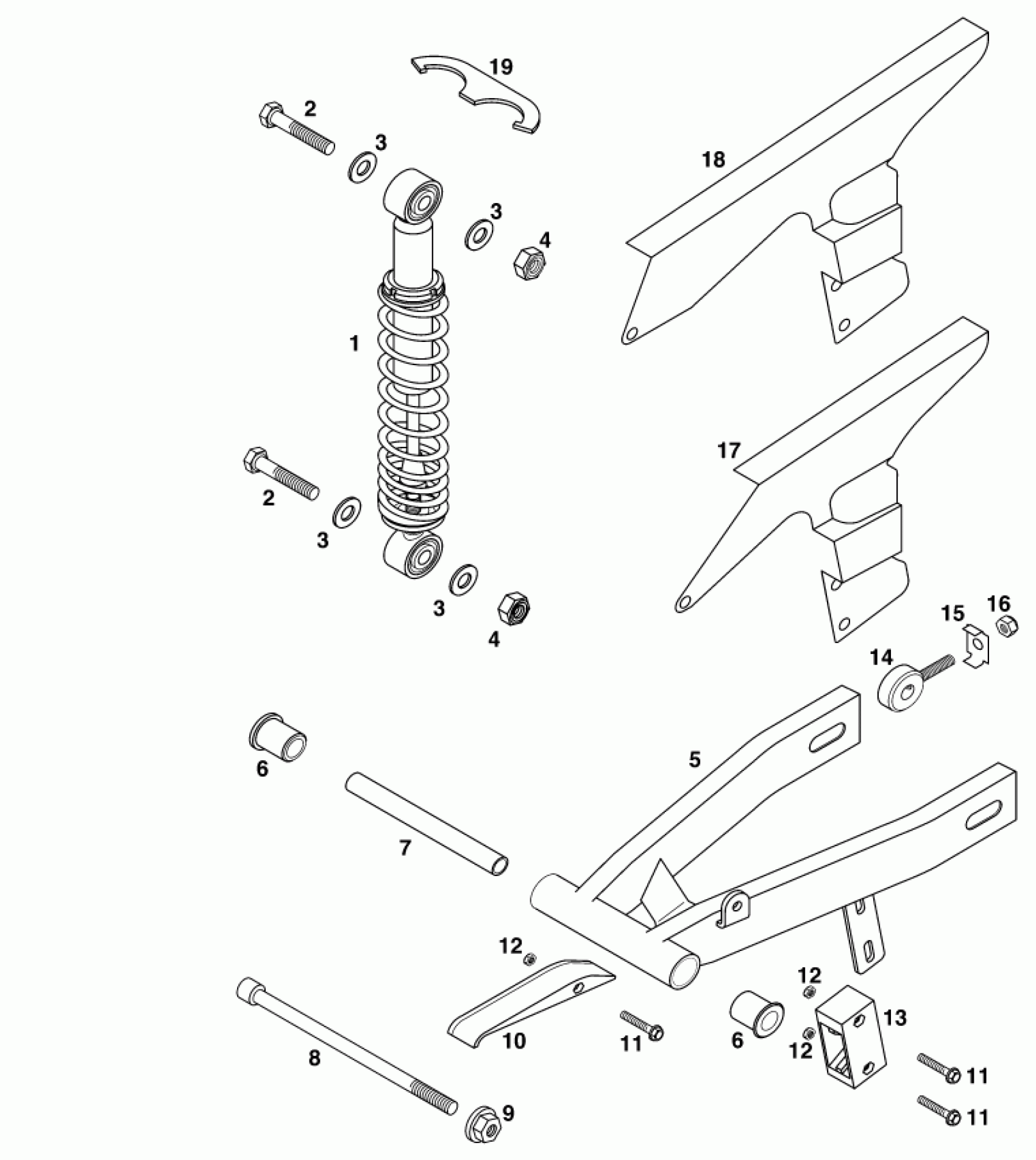

KTM 50 SX SENIOR 2000 SWING ARM Diagram

#

Description
Price

1

SHOCK ABSOR. ADV. MC24 L=248

45004010500

Unavailable

1

SHOCK AB. SX SEN. L=275MM 2000

45004010600

Unavailable

2

HH SCREW DIN0931-M10X45

0931100453

$3.08

3

washer DIN 125 A 10.5

0125100003

$2.05

4

SELF LOCKING NUT DIN0985-M10

0985100003

$2.05

5

SWINGARM ADV./PRO JUNIOR '98

45004030100

Unavailable

5

SWINGARM 50SXR PRO SENIOR '

45004030300

Unavailable

6

BUSHING BOX L=30 MM

45004031000

$5.23

7

SPACING TUBE 10X13X140 MM

45004039000

$4.74

8

AH SCREW DIN0912-M10X160

0912101603

$6.72

9

COLLAR NUT M10 WS=13

54630044000

$1.49

10

CHAIN GUIDE FRONT

45004066000

$5.72

11

HH COLLAR SCREW M 5X30 WS=8

0015050303

$2.05

12

Self locking nut DIN 985 M5

0985050003

$2.05

13

CHAIN GUIDE REAR

45004070000

$10.37

14

CHAIN ADJUSTER

45010083000

$14.11

15

SUPPORTING BRACKET

45010083060

$6.63

16

SELF LOCKING NUT DIN0985-M 8

0985080003

$2.05

17

CHAINGUARD 50 SXR ADV./JUN.

45007060000

Unavailable

18

CHAINGUARD 50 SXR PRO SEN.

45007060100

Unavailable

19

HOOK WRENCH 50 SXR

45004010090

$6.27
