MASK, FENDERS

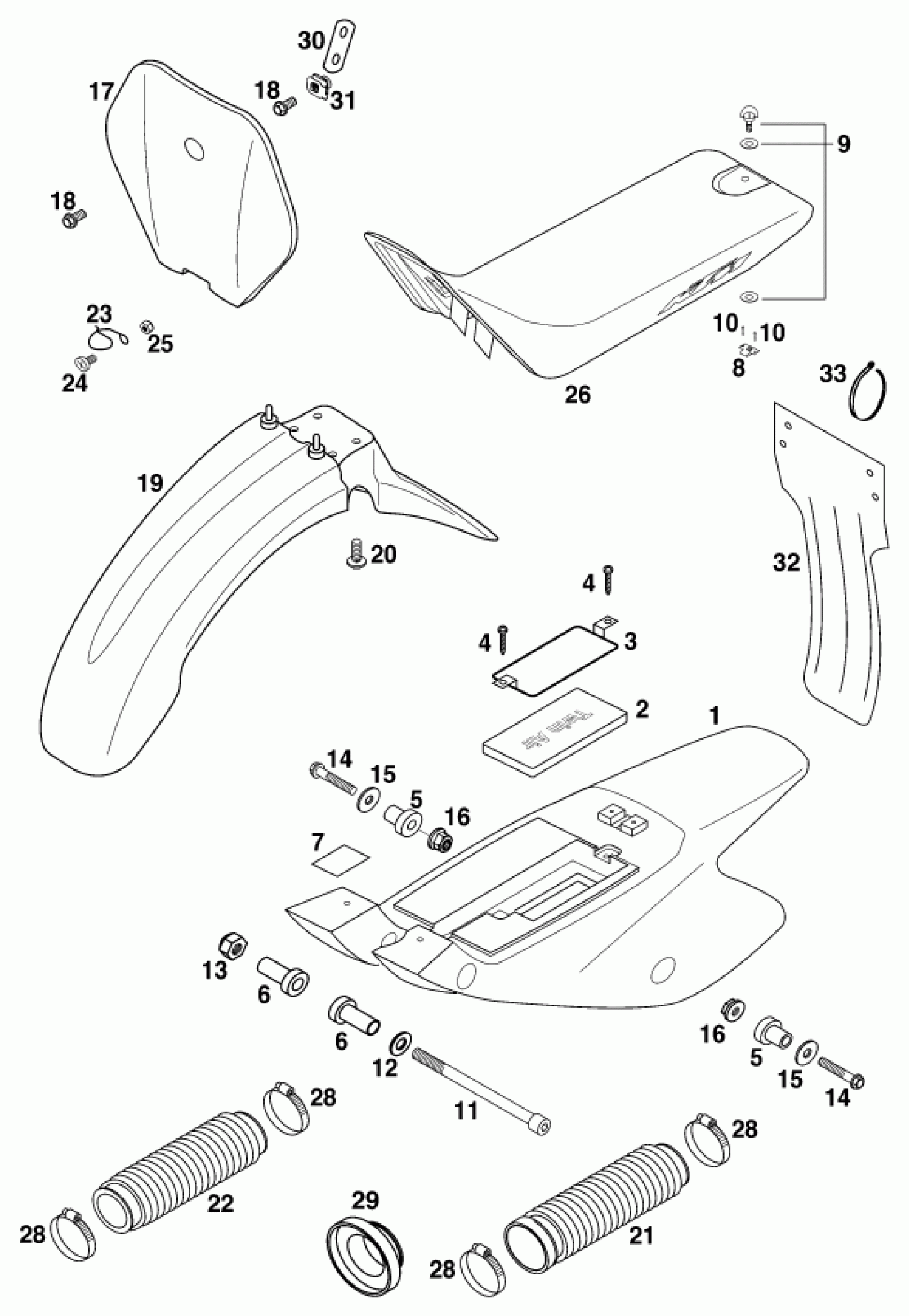

KTM 50 SX SENIOR 2000 MASK, FENDERS Diagram
#
Description
Price
1
FENDER/FRAME END REAR '98
4500801310004
$130.77
2
AIRFILTER 122X59X15 MM
45006015000
$6.71
3
FILTER FRAME
45006016000
$8.87
4
SPECIAL SCREW Z 5X16
0016050153
$1.49
5
COLLAR BUSH L=21 MM
45007013050
Unavailable
6
COLLAR BUSH L=38,5 MM
45007013051
Unavailable
7
RUBBER STRIP 85X25X3 MM
54601097000
$1.49
8
Past mount quick lock
45007040050
$4.11
9
Quick lock
45007040051
$20.19
10
SHEET MET.SCR.DIN7981- 3,5X16
0981350163
$1.49
11
AH SCREW DIN0912-M 8X120
0912081203
Unavailable
12
washer DIN 125 A -8.4
0125080003
$1.49
13
Hexagon nut DIN934 M8
0934080003
$2.05
14
HH COLLAR SCREW M 6X35 WS=8
0015060353
$3.08
15
Washer DIN9021-A 6.4
0021060003
$2.05
16
Self locking nut M6 - 10
56509064100
$2.05
17
NUMBER PLATE 50 SXR '98
4500800700004
$13.50
18
HH COLLAR SCREW M 6X12 WS=8
0015060123
$3.08
19
FENDER FRONT 50 SXR '98
4500801000004
$14.15
20
HH COLLAR SCREW M 6X10 WS=8
0014060103
$3.08
21
AIRFILT.BOOT-DELL ORTO 40/35MM
45006026000
$6.80
22
* AIRFILTER BOOT-MIKUNI 32/35
45006026100
Unavailable
23
GUIDE FOR BRAKE HOSE
58011008000
$3.88
24
OVAL HEAD SCR. DIN7985-M 5X10
0985050103
$1.49
25
Self locking nut DIN 985 M5
0985050003
$2.05
26
SEAT BLACK 50 MINI 2000
45007040200
$69.21
28
Hose clamp 25-40 SGT 4
10001120000
Unavailable
28
HOSE CLAMP 32-50MM W=5MM
45007027000
Unavailable
28
HOSE CLAMP 30-45 SGT
54305058000
Unavailable
29
* REDUCTION RING PVC 59/40 MM
49106826000
Unavailable
30
RETAINING PLATE
45008007050
Unavailable
31
SNAP-NUT HOLDER M6 KP142
50235033300
$4.11
32
SPLASH PROTECTOR 50 SXR
45006010000
$21.31
33
CABLE TIE 300/4,8MM BLACK
44011076305
$2.05
