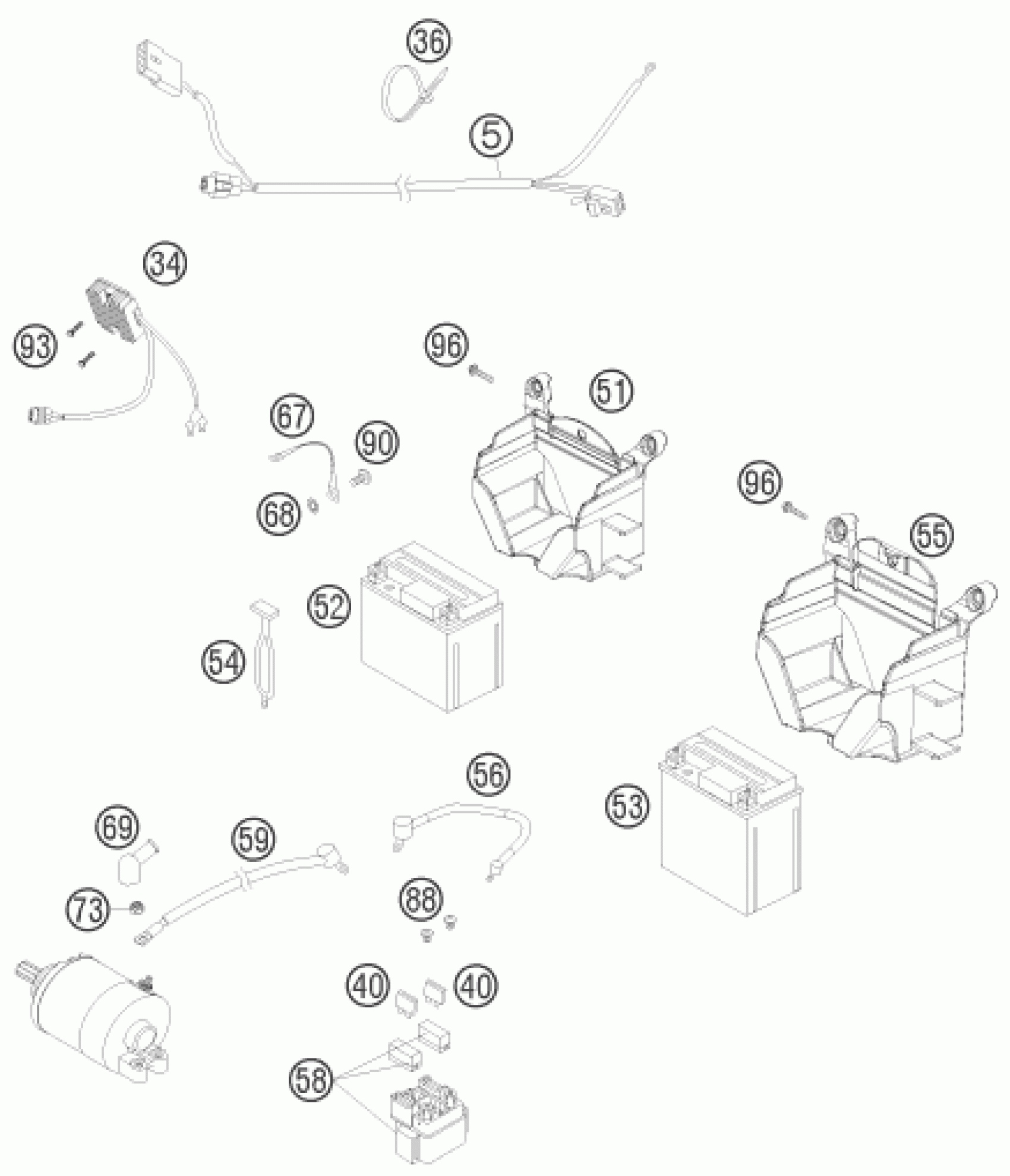

KTM 450 SMR 2008 WIRING HARNESS Diagram

Cable tie 200/4.6mm black

44011076200

Unavailable

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

Plug-in fuse, big 10A

58011109110

$2.05

BATTERY 12V 4AH YTX5L-BS

58511053000

$112.10

RUBBER L=145MM

50303018000

$6.44

BATTERY CASE EXC 08

78011055000

$4.03

WIRING HARNESS BATTERY DUKE'99

58711086000

$15.42

Starter reley 12V 99

58211058000

$72.64

STARTERCABLE 700 MM '97

58411059100

$23.65

GROUND CABLE D=6MM L=140MM '97

58411097100

$8.97

CONTACT WASHER M6 VSV-K6

58411098100

$2.05

PROTECTION CAP F. STARTER ENG.

58440099000

$5.23

Self lock. nut DIN985-M6-A2

0985060003

$2.05

Oval head screw ISO 7380 M 6X8

0902060083

$1.49

SPECIAL SCREW M 5,0X10

0009050103

$2.05

HH collar screw M6x20 TX30

0024060206

$3.08

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

BATTERY 12V 3AH YTX4L-BS

77311053000

$166.05

BATTERY CASING

77311055000

$8.03

MAIN WIRING HARNESS 450 SX-F

77311075000

$20.90

VOLTAGE REGULATOR ''RS2759'' 0

77311034000

$188.39
