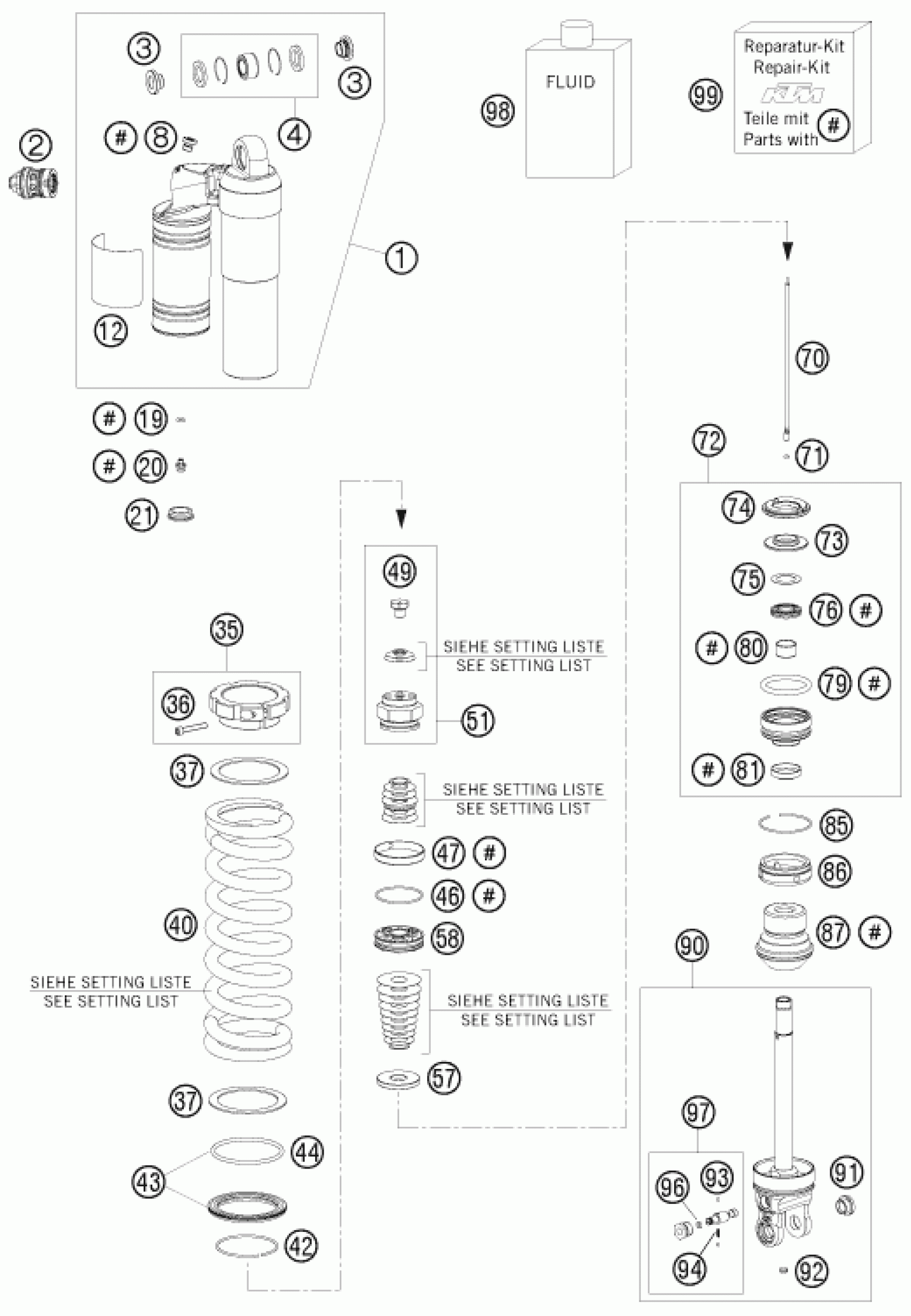

KTM 450 SMR 2008 SHOCK ABSORBER DISASSEMBLED Diagram

#

Description
Price

1

TOP PART CPL. M57,5X1 H30,5 08

50180597S3

Unavailable

2

50180213S4

Unavailable

3

Distance bush 12x15/18/24,5x10

46180007

$17.76

4

Ball joint bearing kit top 12m

R12012

$35.71

8

HS cylinder-head screw R1/8 l8

50180095

$2.42

12

WP CAUTION (PDS KTM) 58X83

52000041

$16.73

19

O-ring 5,28x1,78 NBR70 black

46810893

$1.49

20

HS lock screw M5x6

36120151

$1.86

21

Rubber cap do not open 22x5,5

46811208

$3.08

35

SPRING RETAINER M57,5X1+SCREW

50180520S

$78.51

36

HS cylinder-head screw M5x30

50180327

$4.11

37

Intermediate washer spring 61,

50180114

$3.08

42

Round-wire snap ring 58,5x2

50180273

$2.05

43

SPRING RET. D=80 W. O-RING 05

50180463S

$29.21

44

O-ring 66,27x1,78 Viton70

50180352

$3.08

46

O-ring 44x,17x1,78 Viton70

50180099

$2.05

47

Piston ring 47,95x49,95x8

50180135

$17.76

49

HH screw ventilation M6 l5,5

46180056

$9.75

51

PISTON ROD NUT M16X1 CPL.

50180616S

Unavailable

57

REBOUND DISC D=34, H=8

50180196

$61.08

58

Piston 16,05x49,6x13,5 4,5/7

50180197

$45.62

70

NEEDLE L=171

50180513

$11.59

71

O-ring 2,2x1,6 Viton75 green

46811265

$1.49

72

Sealholder 50x28 cpl.

50180603S

$74.88

73

Washer 18,5x43,7x6

50180113

$25.80

74

Rubber pad rebound 27x48x8 NBR

50180107

$4.11

75

Shim 29.75x19x0.4

50180604

$2.05

76

Seal ring cpl. 18x30x5

50180605S

$22.06

79

O-ring 41x5 NBR70

50180103

$1.49

80

Guide bushing 18x20x12

46180119

$6.35

81

Dirt scarper NOK 18mm black

50180606

$7.85

85

Round-wire snap ring 53x1,75

50180126

$1.49

86

COVER D=50 07

50180511

$28.96

87

Rubber pad 17x58x59

50180480

$20.37

90

MONOSHOCK LOWER PART CPL. 07

50180512S1

$530.20

91

Threaded bush M12 d20

50180105

$15.51

92

Rubber plug 8x3,5 NBR50

50180297

$2.48

93

Steel ball d3

40540603

$1.49

94

Spring (1,7) l7,9

48600028

$3.08

96

O-ring 4x1,5 NBR70

50180222

$1.49

97

ADJUSTING SCREW REBOUND TRAVEL

50180434S

$28.14

98

SHOCK ABSORBER FLUID 5 LT '03

50180342S1

$149.59

99

REPAIR KIT 5018 PDS 06

R12014

$145.41

40

SPRING 250 76N/MM

91210070S

Unavailable

40

SPRING 250 80 N/MM

91210072S

Unavailable

40

SPRING 250 84 N/MM

91210073S

Unavailable
