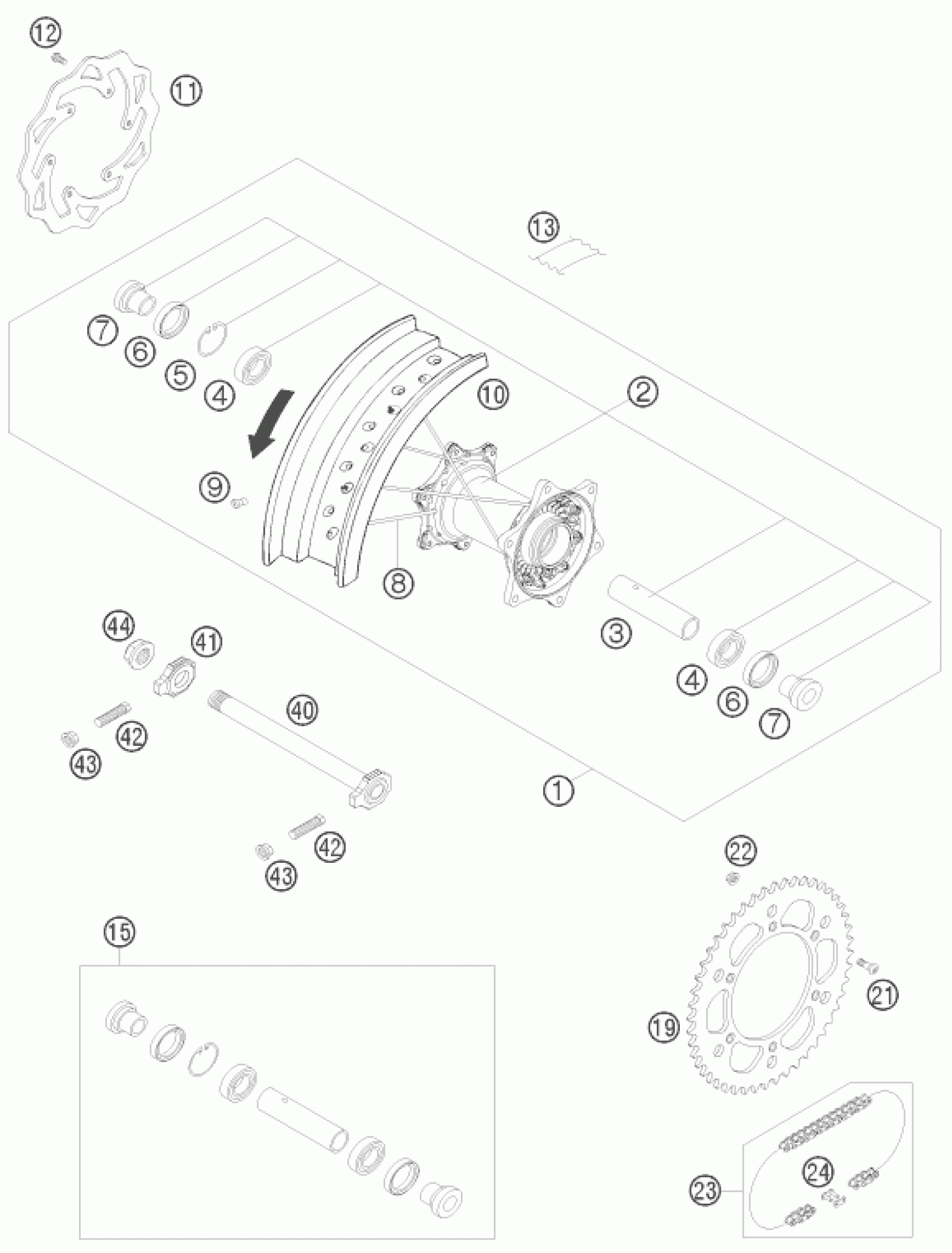

KTM 450 SMR 2008 REAR WHEEL Diagram

#

Description
Price

1

REAR WHEEL CPL. 5X17 SMR 08

7731020104430

Unavailable

2

REAR HUB CPL. 08

78010010044

$313.68

3

BUSH. SPACER TUBE 121,5MM 01

59010011000

$22.34

4

Grooved ball bear.6005 DDU2CG2

0625060058

$18.32

9

SPOKE NIPPLE M5-TA (8X21MM)

58309072000

$2.05

8

SPOKE M5X174-13,5G 17''

58309071100

$4.11

10

REAR RIM 5,0X17''

5941007000030

$235.30

11

BRAKE DISC REAR 220

77310060000

$127.62

12

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

13

rim tape 17"

58309073000

$15.04

15

REAR WHEEL REP. KIT

78010015000

Unavailable

19

REAR SPROCKET 38-T

58310051038

Unavailable

19

REAR SPROCKET 40-T

58310151040

Unavailable

19

REAR SPROCKET 42-T

58310051042

Unavailable

19

REAR SPROCKET 45-T

58310151045

Unavailable

19

REAR SPROCKET 48-T

58310151048

Unavailable

19

REAR SPROCKET 49-T

58310151049

Unavailable

19

REAR SPROCKET 50-T

58310151050

Unavailable

19

REAR SPROCKET 51-T

58310151051

Unavailable

19

REAR SPROCKET 52-T

58310151052

Unavailable

21

COUNTER-SUNK SCREW ISA45 M8X26

0019080266S

$3.08

22

Hex. nut DIN EN 1661 M8 WS13

06923080003

$2.05

23

CHAIN 5/8X1/4'' MX

50310165118

$84.14

23

CHAIN Z-RING 5/8X1/4''

50310800118

Unavailable

24

Connecting link for 5031016511

50310166000

$6.79

5

CIRCLIP DIN0472-47X1,75

0472047175

$3.08

6

Radial shaft seal 32X47X7 BSL

0760324771

$13.36

7

BUSHING FOR HUB 08

78010016000

$32.90

44

Hexagon nut M20x1.5

50310099000

$11.30

41

Chain tension adjuster, right

50310084000

$20.66

42

screw M10x1.25x50 WS10

50304040100

$5.23

43

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

40

Thru axle rear wheel cmpl. 07

77310085044

$78.91

24

CONNECTING LINK F. 50310800118

50310366000

$9.34

24

MASTER LINK FOR 50310800118

50310866000

$6.79
