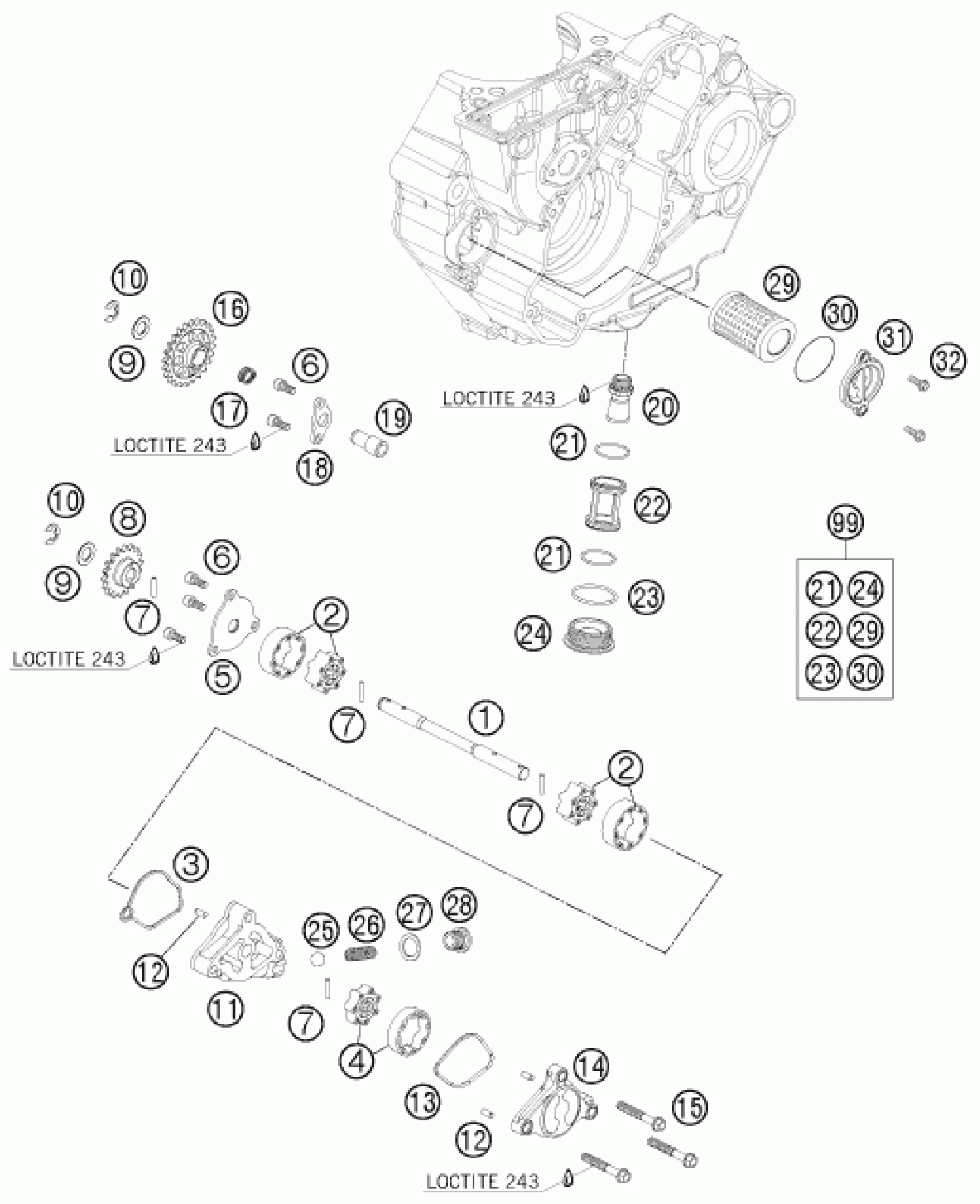

KTM 450 SMR 2008 LUBRICATING SYSTEM Diagram

#

Description
Price

1

OIL PUMP SHAFT

77338002000

$23.74

2

SUCTION PUMP

77338107000

$23.17

3

GASKET PRESSURE PUMP CASE

77338012000

$7.56

4

PRESSURE PUMP PEEK D=9MM

77338207100

$42.08

5

PUMP COVER 07

77338004100

$7.66

6

AH SCREW DIN0912-M 5X12

0912050123

$2.05

7

NEEDLE ROLLER DIN5402 3X15,8

0402031580

$1.49

8

OIL PUMP GEAR 18-T

77338001100

$6.72

9

WASHER 10,2X18X1

77338023000

$2.05

10

retaining washer DIN 6799 - 8

0799080000

$1.49

11

PRESSURE PUMP CASE

77338010100

$31.22

17

NEEDLE BEARING K 10X13X10 02

0405101310

$6.63

12

Needle roll.DIN5402 NRB 4X9.8

0402040980

$3.08

13

GASKET PRESSURE PUMP COVER

77338112000

$7.56

14

PRESSURE PUMP COVER

77338013100

$25.42

15

HH COLLAR SCREW M 6X40 WS=8

0015060403

$3.08

16

OILPUMP IDLER GEAR 24-T.

77338000150

$8.03

18

LOCK WASHER BEARING BOLT

77338061050

$4.11

19

BEARING BOLT

77338061000

$10.65

20

OIL INTAKE SNORKEL

77338022000

$11.49

21

O-RING 23,00X1,50 NBR 70

0770023015

$1.49

22

OIL SCREEN CPL.

77338016100

$12.99

23

O-RING 30X2,0 FPM

0770300020

$3.08

24

PLUG SCREW

77338019100

$28.42

25

BALL D=10 DIN 5401

0401100000

$1.49

26

COIL SPRING

77338026100

$3.08

27

CU-SEAL RING 14X20X1,5 LC8 02

0603142016

$3.08

28

PLUG SCREW M14X1,5 ALU AH

60038033050

$11.12

29

Oil Filter 07

77338005100

$9.34

30

O-RING 34X1,5 VITON

0770034015

$3.08

31

OIL FILTER COVER

77338041100

Unavailable

32

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

99

OILFILTER SERVICE KIT 450 SMR

00050000084

Unavailable
