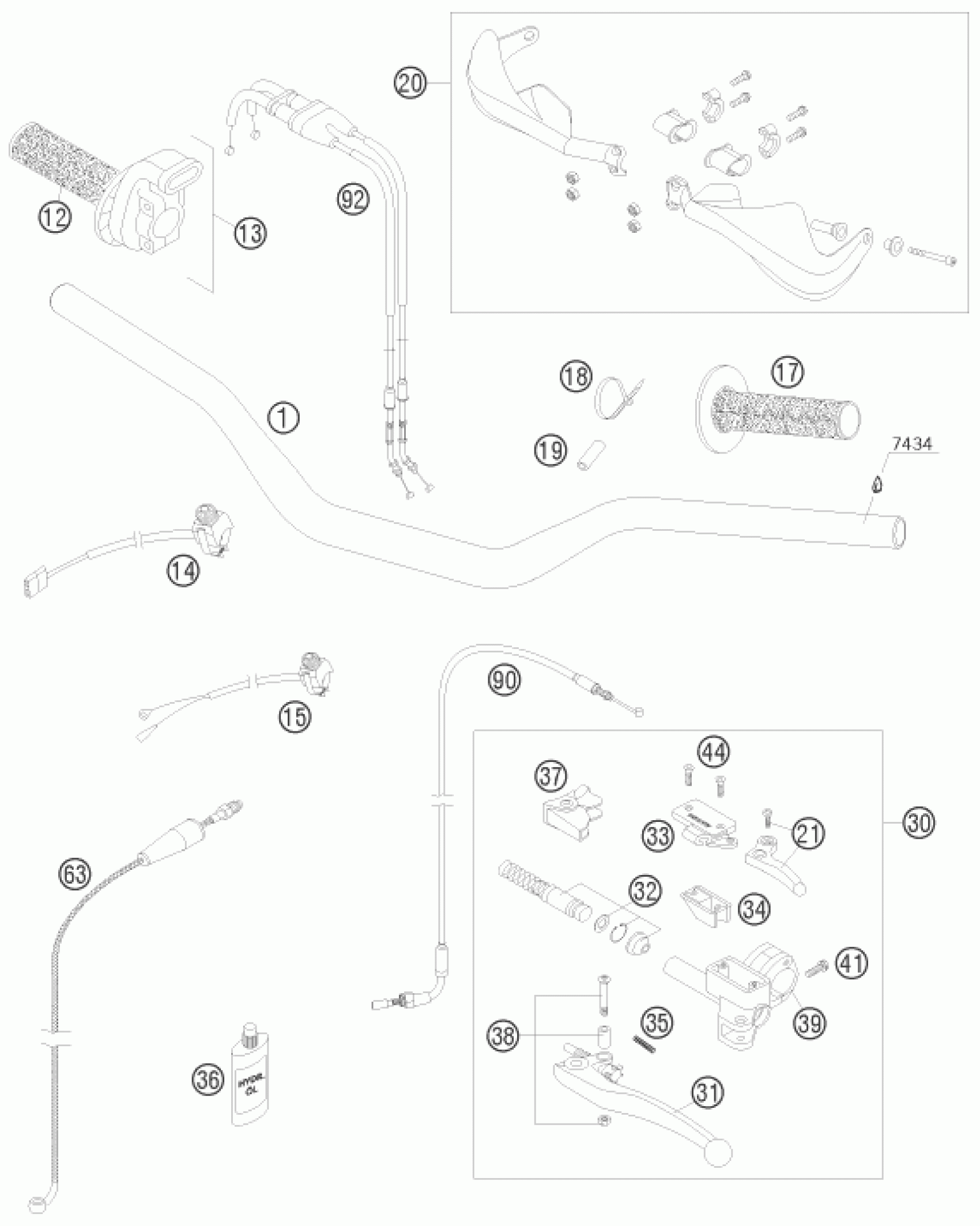

KTM 450 SMR 2008 HANDLEBAR, CONTROLS Diagram

#

Description
Price

32

REP.KIT PISTON 9,5MM RAC. 2000

59002032000

Unavailable

1

HANDLEBAR D=28 MM RENTHAL796

5480200120017

Unavailable

12

TWIST GRIP COVER RENTHAL 04

54802013000

Unavailable

13

THROTTLE GRIP CPL. RAC. 04

59402010000

Unavailable

15

Kill switch

50311089200

Unavailable

17

FIXED GRIP RENTHAL 04

54802039000

Unavailable

18

Cable tie 200/4.6mm black

44011076200

Unavailable

18

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

20

HANDGUARD L/S+R/S CPL.BLCK

6000207910030

Unavailable

21

HOT START LEVER CPL. 05

59002047100

Unavailable

30

MASTER CYLINDER CPL. SXC/SM 03

58602030000

Unavailable

31

CLUTCH LEVER LONG CPL. 2003

59002031000

Unavailable

31

CLUTCH LEVER SHORT CPL. 2003

54602031000

Unavailable

33

COVER HYD.CLUTCH RACING 2000

59002033000

Unavailable

34

RUBBER FOR RESERVOIR '98

50302034000

Unavailable

35

SPRING FOR CLUTCH LEVER 03

59002035000

Unavailable

36

OIL FOR HYD. CLUTCH 100 ML

50302036200

Unavailable

37

PROTECT.CAP FOR LEVER PERCH'98

50302037000

Unavailable

38

LEVER SCREW CPL. 125-200 '98

50302038000

Unavailable

39

CLAMP WITH PIN 2000

50302030150

Unavailable

41

HH collar screw M6x20 TX30

0025060206

Unavailable

44

FLAT HEAD SCREW DIN0965-M 4X12

0965040123

Unavailable

63

CLUTCH PIPE RACING 2003

59032063100

Unavailable

90

HOT START CABLE 05

77002096000

Unavailable

92

THROTTLE CABLE 250 SXF 2005

77002091000

Unavailable

14

STARTER BUTTON 06

63011074000

Unavailable

19

HOSE 7X11,5X15

78011016015

Unavailable
