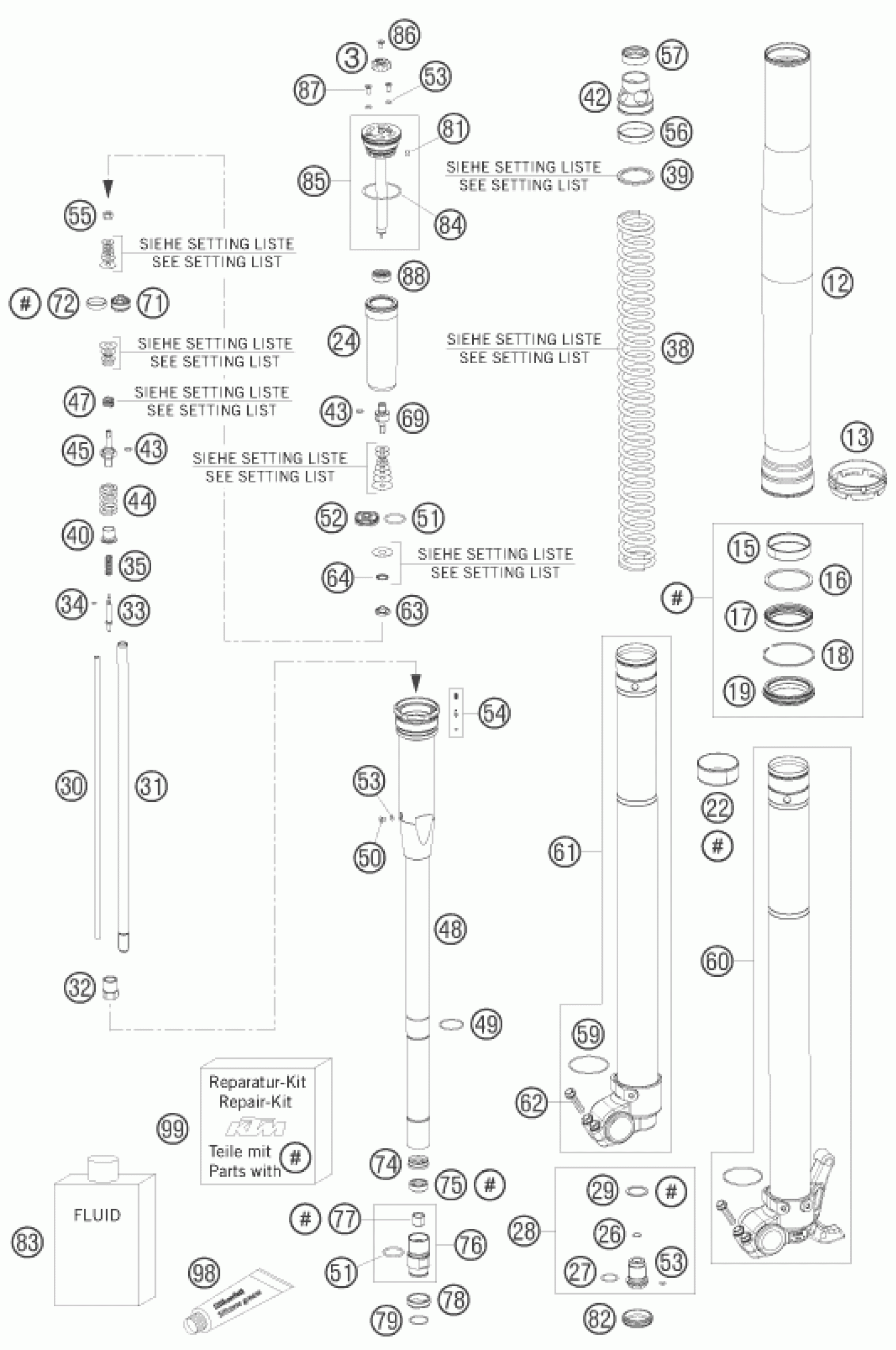

KTM 450 SMR 2008 FRONT FORK DISASSEMBLED Diagram

DUST CAP D=48 58,4X11,8

48600400

$12.80

DU-BUSH D47XD49X20DDL02

48600428

$12.05

Membrane 11,2x37x112

48600281

$9.90

O-ring 9,5x1,5 NBR70 yellow

48600301

$1.49

O-ring 17x2 70 Sh NBR black

46810811

$1.49

SCREW BUSH M20X1 L=33 CPL.

48600280S

$60.39

Fork protection ring 62,1mm

48600698

$9.34

DU-BUSH D48XD52X12DDL02

48600429

$12.05

Supportwasher 50x57,6x1,5

48600013

$3.08

OIL SEAL RING 48X57,8X9,5 03

48600347

$13.64

Snap ring SB58x1,5 acc drawing

48600070

$2.05

Washer 35x43x1,5 plastic

48600458

Unavailable

Spring retainer 12,3x19x1,25 r

48600525

$2.05

Spring support ring 27,08x42x4

48600520

$66.94

O-ring 6x1,2 NBR70

48600299

$1.49

Spring (11,7) 1,5-8 valve

35480377

$2.05

reed holder incl. PIN SET

48600519S3

$288.57

Round-wire snap ring 28,5x1,5

48600512

$5.04

HS countersunk head screw M4x6

48600542

$3.08

O-ring 21x2 NBR70

46811499

$1.49

Piston 6x27,8x9 compression

48600047

$9.81

O-ring 4x1,5 NBR70

50180222

$1.49

OUTER TUBE L577 D54/60MM 2L BL

48600693

$342.59

Washer 35x43x2,5 plastic

48600456

Unavailable

Preload bush 35x43x3,5

48600457

Unavailable

SPRING 4,8 N/MM SET D=5,25MM

91410054S

Unavailable

SPRING D43.2 L465 5N/MM SET

91410058S

Unavailable

SETTING KNOB

48600569

$4.11

GUIDE RING 44,2 X39,3

48600294

$54.11

Spring (13,9) 37-32 rebound

48600578

$2.05

Tap 6x46 rebound

48600576

$9.72

Spring (11,4) 0,4-8 valve

48600382

$2.05

PIN KIT

48600977S

$20.19

Nut M6x0,5 h6,5 WAF10 rebound

40540486

$4.11

Spring guide ring 27,08x32x9,5

48600577

$5.51

O-ring 46x2 NBR70 siliconized

48600048

$3.08

AXLE-CL. MA AXIAL BR.+INN.TUBE

48600697S1

Unavailable

AXLE CLAMP R/S + TUBE CPL. 08

48600691S1

Unavailable

HH collar screw M8x25

0025080256

$2.05

Nut valve M6x0,5 h6,5 WAF17

48600163

$3.08

Spring (8,5) l6,5 valve

48600202

$2.05

Tap 6x38 compression

48600509

$10.37

Piston 6,07x22,7x13

48600575

$14.76

Piston ring 21x23x5

48600455

$4.50

RING D=23,45X2,65

48600296

$10.01

PISTON ROD SEALING

48600471

$6.07

SCREW SLEEVE M24,5X1 CPL.

48600546S

$68.23

Guide bushing 12x14x10

48600430

$6.44

Check valve locking R4

48600709

$18.04

Round-wire snap ring 24x2

48600446

$2.05

Silicon plug 60Sh

15080017

$5.23

Rubber cap 26,4x11

48600692

$3.08

FORK OIL SAE5 5L 2005

48600401S1

$149.59

O-ring 43x2 NBR70 siliconized

40140024

$4.11

screw cap M41x1 cmpl.

48600516S1

$107.70

HS countersunk head screw M4x1

48600527

$2.05

Cross flat head screw M4x10

48600526

$2.05

Clamping ring bladder 11,31x22

48600514

$27.57

Copper disc 20,5x26x1

48600275

$2.05

adjusting tube 6x351

48600726

$17.38

48600723

Unavailable

Lock nut M12x1 h23 WAF17

48600459

$9.90

Needle 4,5x43,6

48600277

$5.51

O-ring 2x1,5 NBR70

48600298

$1.49

Spring (5,4) 4-23 rebound

48600444

$3.08

SILICONE GREASE F. DUST STRI

T511

$34.59

REPAIR-KIT GASKET 48MM 0

R14014

$106.21
