Description

Price

1

E-STARTER ENGINE CPL. 07

77340001000

$260.03

2

NEEDLE BUSH HK 0810 DIN 618

0618081210

$5.23

9

DRIVE WHEEL AGZR 505 07

77330955160

$198.49

10

COLLAR NUT M27X1

77330029000

$10.84

11

FREE WHEEL CLUTCH MECHANISM 97

H25015301

$198.87

12

NEEDLE BEAR. K25X32X16

0405253216

$13.64

13

STARTING GEAR Z=52

77340015100

$577.36

14

TORQUE LIMITER CPL. 07

77340016000

$480.30

15

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

16

O-RING 25,00X3,00 NBR 70

0770250030

$3.08

17

INTERMEDIATE STARTING GEAR

77340022100

$43.84

18

BEARING BOLT

77340028000

$11.77

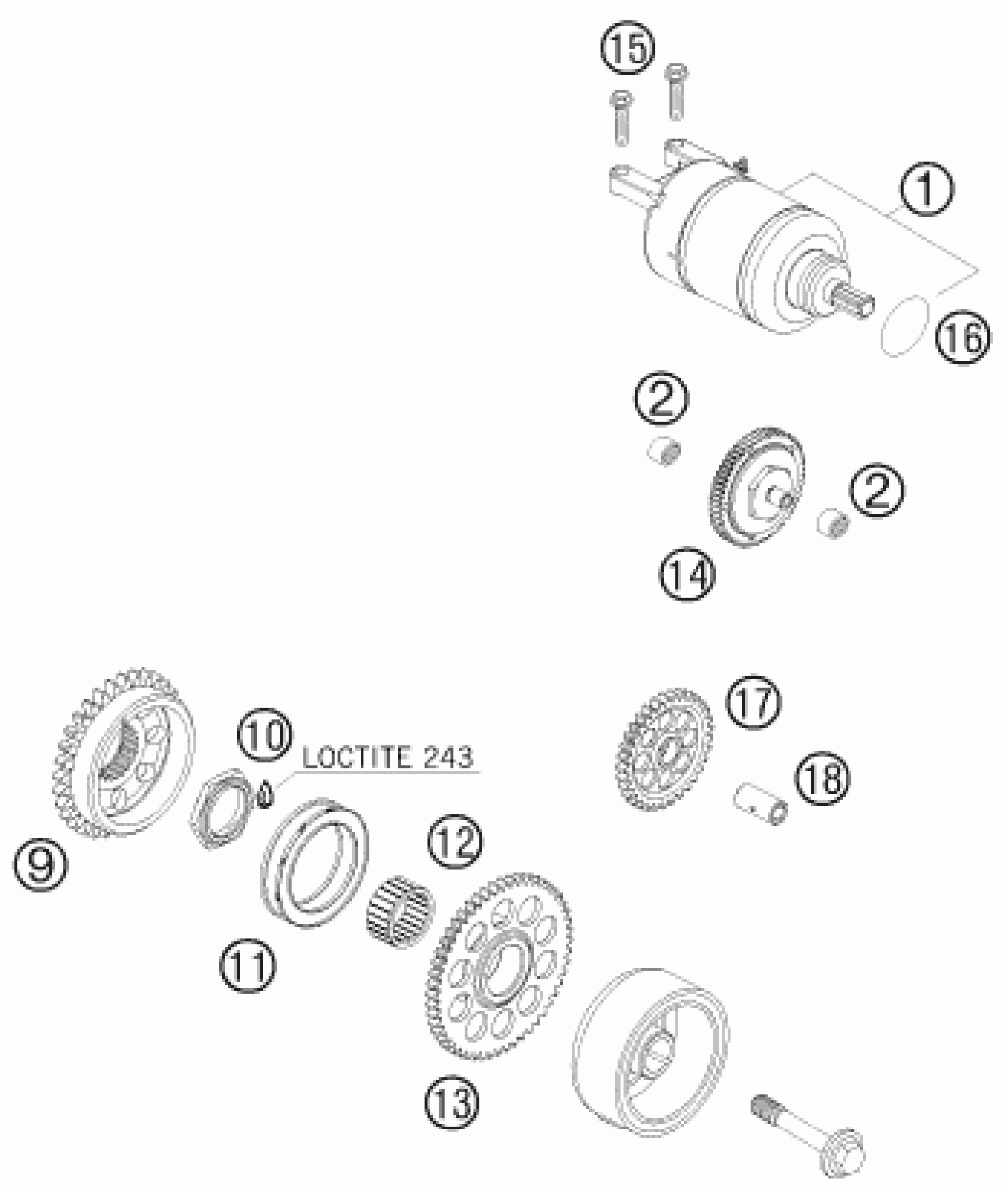

KTM 450 SMR 2008 ELECTRIC STARTER Diagram
