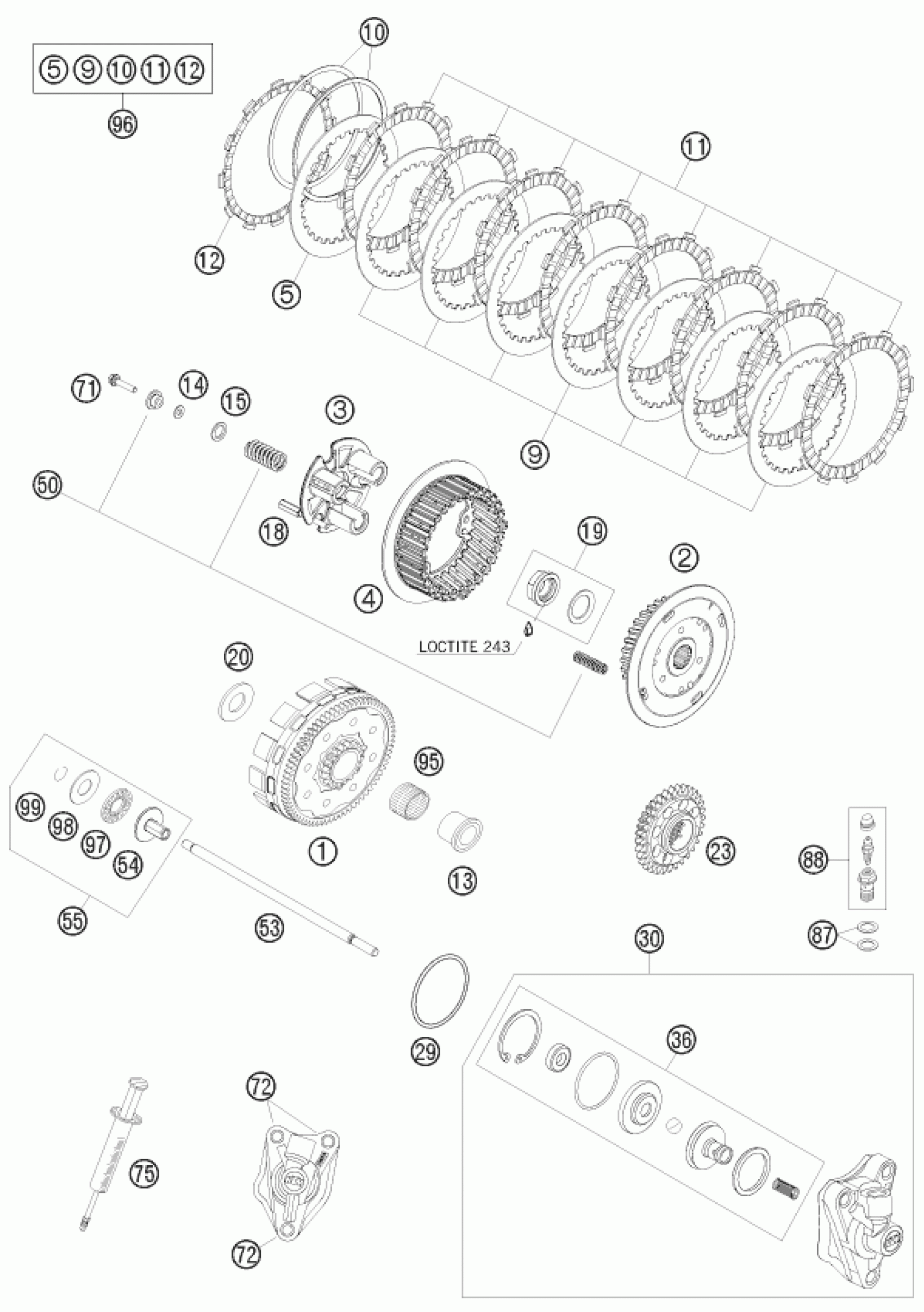

KTM 450 SMR 2008 CLUTCH Diagram

#

Description
Price

1

OUTER CLUTCH CPL. 08

77332001244

Unavailable

2

INNER HUB

77332032010

Unavailable

3

PRESSURE CAP

77332032090

Unavailable

9

INTERMEDI. DISC STEEL

77332010000

Unavailable

11

LINING DISC 2,7MM

77332011000

Unavailable

13

INNER RING

77332015100

Unavailable

18

SAFETY SCREW APTC 2004

59032007100

Unavailable

19

SPECIAL NUT M18X1.5

77332032044

Unavailable

20

WASHER 21,7X38X4 07

77332017100

Unavailable

23

PRIMARY GEAR CPL. 07

77332023177

Unavailable

29

O-RING 38,00X2,00 NBR 70 SH

0770380020

Unavailable

30

OUTPUT CYLINDER CPL.

77332061044

Unavailable

36

PISTON CPL.

77332066000

Unavailable

50

CLUTCH SPRING KIT APTC

77332033044

Unavailable

53

PUSH ROD 07

77332054100

Unavailable

54

PRESSURE PIECE

77332057100

Unavailable

55

PRESSURE PIECE CPL.

77332057144

Unavailable

71

HH COLLAR SCREW M 5X25 WS=8

0015050253

Unavailable

75

VENT INJEKTION HYDR. CLUTCH

50329050000

Unavailable

87

CU-SEAL RING DIN7603-10X16X1

42013226000

Unavailable

88

BLEEDER HOLLOW SCREW M10X1

54813020000

Unavailable

95

NEEDLE BEARING K26X30X22ZW.KSE

56532095000

Unavailable

97

AXIAL NEEDLE BEARING AXK 1226

54637097200

Unavailable

98

AXIAL WASHER AS1226 12X26X1

54637098200

Unavailable

99

CIRCLIP DIN7993-RW12

0993012000

Unavailable

4

OUTER HUB

77332032020

Unavailable

5

STEEL DISC NITRIDE

77332032080

Unavailable

10

AJ SYSTEM CPL.

77332032070

Unavailable

12

TURNED LINING DISC

77332032060

Unavailable

14

WASHER SMALL 5,5X12X1

77332036003

Unavailable

15

WASHER LARGE 13X18X1

77332036001

Unavailable

15

WASHER LARGE 13X18X1,5

77332036002

Unavailable

72

HH COLLAR SCREW M 6X25 WS=8

0015060253

Unavailable

96

CLUTCH-KIT 450 SMR 08-12

77332011110

Unavailable
