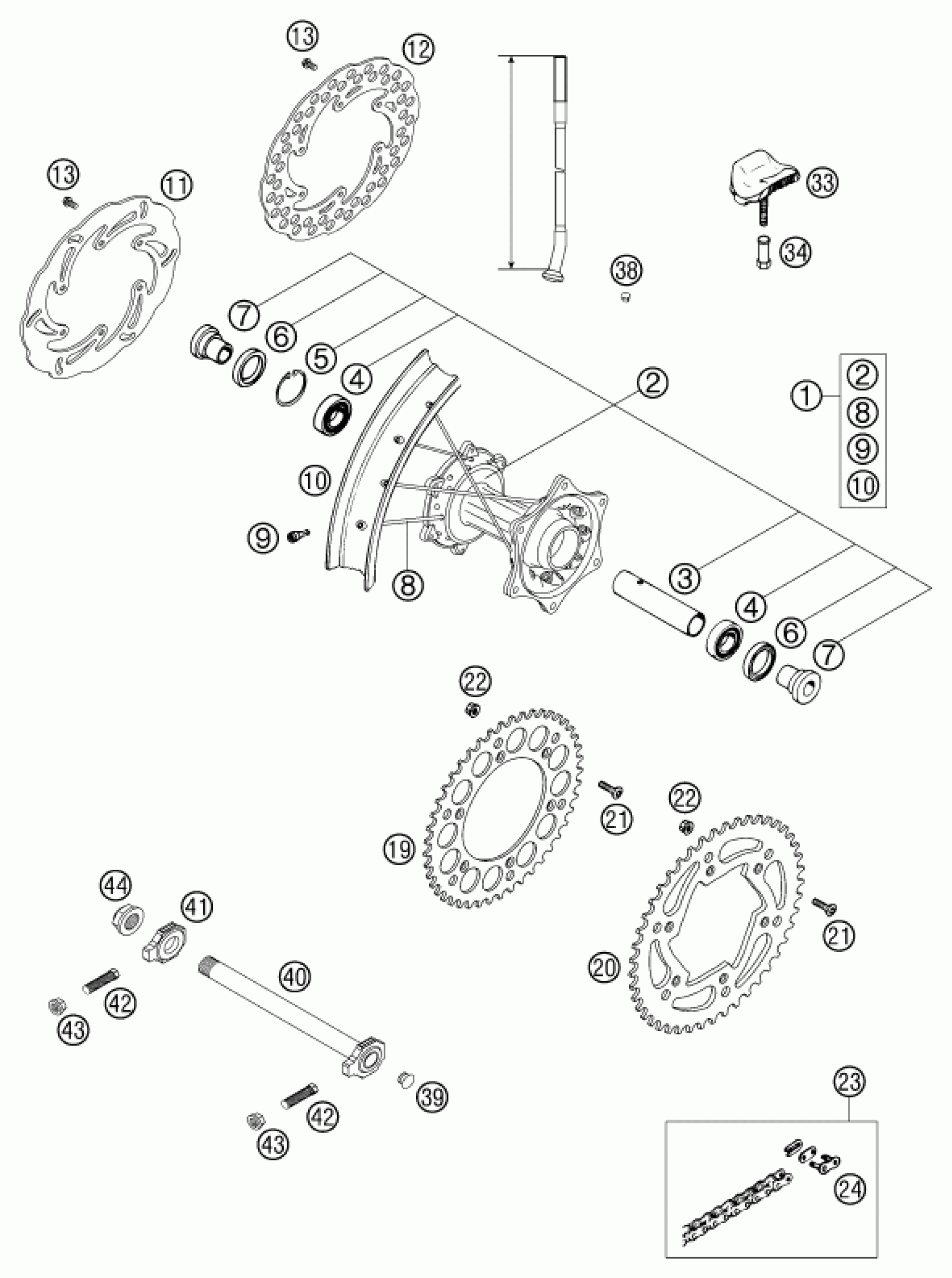

KTM 450 MXC-G RACING 2003 REAR WHEEL Diagram

#

Description
Price

1

REAR WHEEL CPL. 2,15X19'' 03

54810001144

$386.12

1

REAR WHEEL CPL.2,15X18'' DID03

54810001244

$854.77

2

REAR HUB CPL. GOLD 03

5481001004496

$313.68

3

BUSH. SPACER TUBE 121,5MM 01

59010011000

$22.34

4

Grooved ball bear.6005 DDU2CG2

0625060058

$18.32

5

CIRCLIP DIN0472-47X1,75

0472047175

$3.08

6

Radial shaft seal 32X47X7 BSL

0760324771

$13.36

7

BUSHING FOR HUB

54610016000

$32.90

8

SPOKE M5X207-10G 19'' DDE

50310072207

$4.11

8

SPOKE M5X197-10G 18'' DDE

50310072197

$4.11

9

SPOKE NIPPLE M5-TA (8X21MM)

58309072000

$2.05

10

REAR RIM 2,15X19'' EXCEL AL4

54610070100

$252.81

39

Plug SFL16

50210086000

$3.08

40

WH. SPINDLE RE. CPL.265MM 00

50310085044

$78.91

41

Chain tension adjuster, right

50310084000

$20.66

10

REAR RIM 2,15X18'' DID

54610070300

$198.44

11

BRAKE DISC REAR D=220MM 2000

50310060000

$135.01

12

BRAKE DISC REAR D=220MM 03

54810060000

$141.27

13

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

19

REAR SPROCKET 38-T

58310051038

Unavailable

19

REAR SPROCKET 40-T

58310151040

$63.10

19

REAR SPROCKET 42-T

58310051042

Unavailable

19

REAR SPROCKET 45-T

58310151045

$50.58

20

REAR SPROCKET 48-T

58310151048

$50.58

20

REAR SPROCKET 50-T

58310151050

$56.00

20

REAR SPROCKET 52-T

58310151052

$50.58

21

SPROCKET SCREW-AH M8X26 WS=6

54510052100

$3.08

22

Self locking nut M8 10.9

54310086200

$3.08

23

CHAIN 5/8X1/4'' MX

50310165118

$84.14

23

% X-RING CHAIN 5/8X1/4" +M.LIN

50310265114

Unavailable

23

% X-RING CHAIN 5/8X1/4" +M.LIN

50310265118

Unavailable

33

RIM LOCK VM3 (2.15'')

54010100100

Unavailable

34

NUT FOR WHEEL HOLDER '96

50310090050

Unavailable

38

PLUG FOR RIM

55003135000

Unavailable

24

Connecting link for 5031016511

50310166000

$6.79

24

CONNECTING LINK

50310266000

$5.80

42

SPEC. SCREW M10X1,25X40 WS=10

50304040000

$5.23

43

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

44

Hexagon nut M20x1.5

50310099000

$11.30
