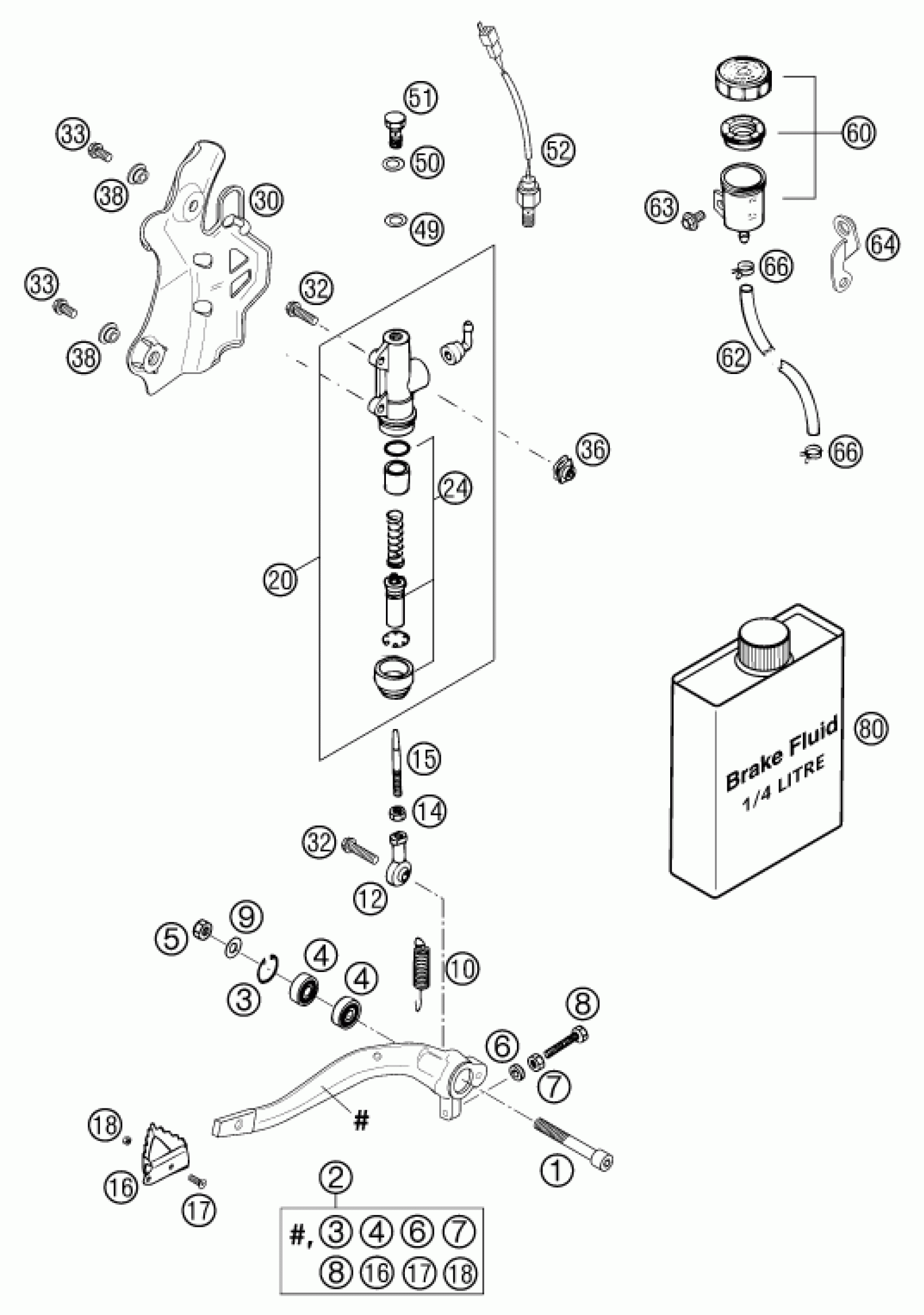

KTM 450 MXC-G RACING 2003 REAR BRAKE CONTROL Diagram

#

Description
Price

20

FOOTBRAKECYL. 13MM NATURE 2001

50313060100

$87.30

1

AH SCREW DIN0912-M 8X60

0912080603

$2.61

2

REAR FOOT BRAKE LEVER CPL.2000

59003060044

$68.72

3

CIRCLIP DIN0472-22X1

0472022100

$2.05

4

Grooved ball bearing 608 2RS C

0625006087

$21.40

5

SELF LOCKING NUT DIN0985-M 8

0985080003

$2.05

6

WASHER 6 X 12 X 3

12011016000

$1.49

7

Hex. nut DIN 934 M6

0934060003

$1.49

8

HH SCREW DIN0933-M 6X35

0933060353

$1.49

9

washer DIN 125 A -8.4

0125080003

$1.49

10

RETURN SPRING FOR BRAKELEVER

54603062000

$6.54

12

SWIVEL HEAD M6 FOOT BRAKE LEV.

54603069000

$37.20

14

Hex. nut DIN 934 M6

0934060003

$1.49

15

PRESSURE ROD ALU 250 '90

54603068000

$6.35

16

STEP PLATE FOR BRAKE LEVER

54603060150

$13.92

17

OVAL HEAD SCREW DIN0966-M 5X20

0966050203

$1.49

18

Self locking nut DIN 985 M5

0985050003

$2.05

24

REPAIR KIT PISTON 13MM

54513150000

$46.46

30

BRAKECYL.PROTECTOR RACING 2000

59003093000

$5.64

32

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

33

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

36

SNAP-NUT HOLDER M6 KP142

50235033300

$4.11

38

BUSH FOR SPOILER 6X11X16X5 MM

50308052000

$1.96

49

CU-SEAL RING DIN7603-10X16X1,5

42013026000

$2.05

50

CU-SEAL RING DIN7603-10X16X1

42013226000

$2.05

51

HOLLOW SCREW M10X1X19

50213025000

$6.54

52

BRAKE LIGHT SWITCH REAR '98

50311051100

$36.92

60

BRAKE FLUID RESERVOIR '89

54513030044

$20.56

62

HOSE FOR RESERVOIR 6X1,5

58007016101

Unavailable

63

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

64

BRACKET BRAKE FLUID RESERVOIR

59013068000

$7.05

66

YDNAC-clamp 10101 (10.4MM)

58007017000

$3.08

80

BRAKE FLUID DOT 4.0

306054

Unavailable
