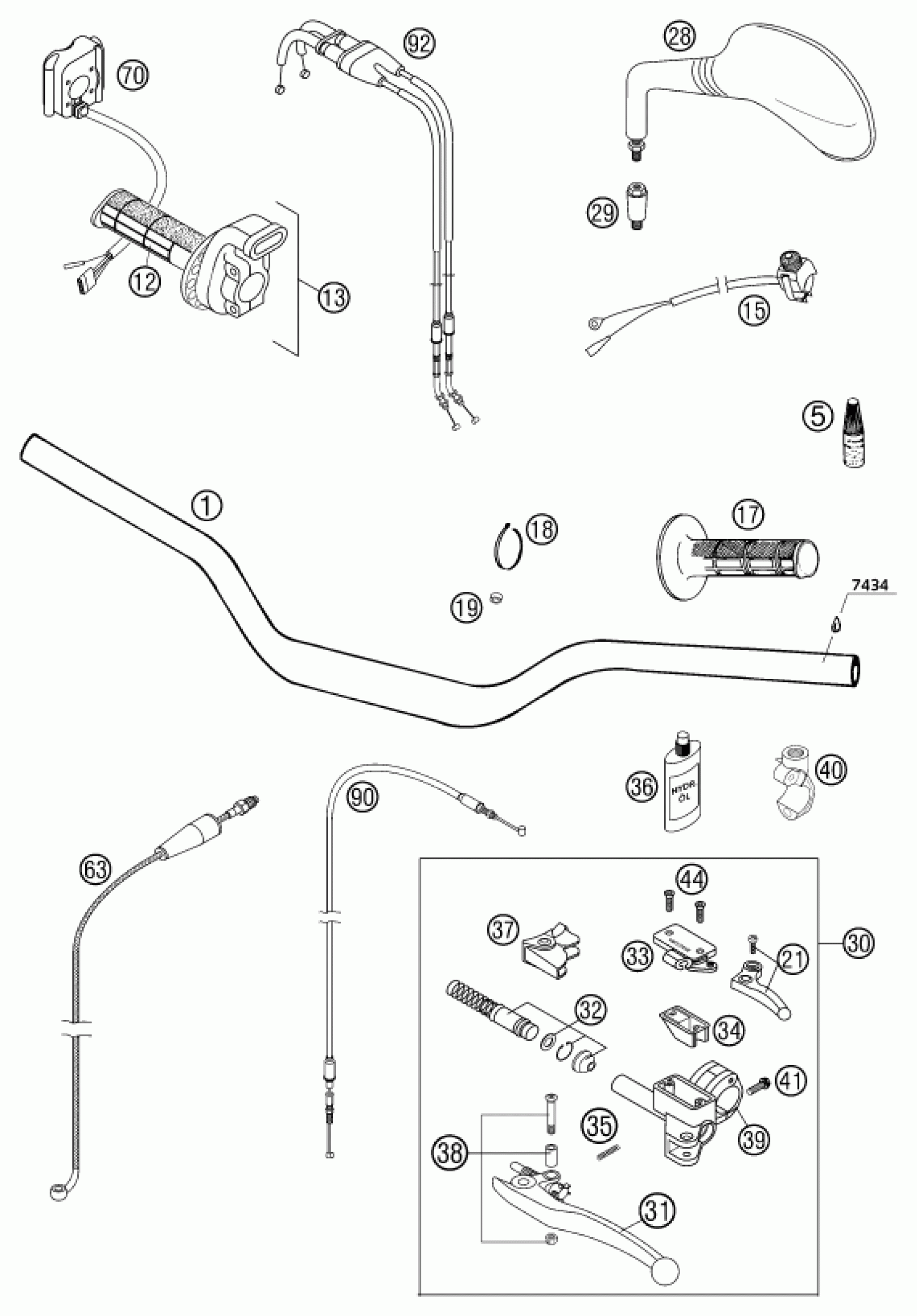

KTM 450 MXC-G RACING 2003 HANDLEBAR, CONTROLS Diagram

#

Description
Price

1

HANDLEBAR D=28MM LOW 03

54802001000

$151.84

1

HANDLEBAR 28MM HIGH 2000

59002001000

$175.68

5

GRIP GLUE

6899792

Unavailable

12

TWIST GRIP COVER DOMINO BLACK

50202003000

$26.17

13

THROTTLE GRIP CPL.RACING2000

59002010200

$44.59

15

Kill switch

50311089200

$37.58

17

FfIXED GRIP DOMINO BLACK '95

50202052000

$26.17

18

Cable tie 200/4.6mm black

44011076200

Unavailable

18

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

19

SPACER BUSHING 6X10X5

50301089000

$2.05

21

LEVER CPL. RACING 2000

59002047000

$23.00

28

MIRROR L/S 98

58412040000

$36.92

0

MIRROR R/S 98

58412041000

$36.92

29

SUPPORT FOR MIRROR LC4 '98

58412040050

$20.19

30

MASTER CYLINDER CPL. RACING 03

59002030100

$278.41

31

CLUTCH LEVER LONG CPL. 2003

59002031000

$40.10

31

CLUTCH LEVER SHORT CPL. 2003

54602031000

Unavailable

32

REP.KIT PISTON 9,5MM RAC. 2000

59002032000

$62.71

33

COVER HYD.CLUTCH RACING 2000

59002033000

$41.51

34

RUBBER FOR RESERVOIR '98

50302034000

$18.97

35

SPRING FOR CLUTCH LEVER 03

59002035000

$4.11

36

OIL FOR HYD.CLUTCH 50ML

50302036000

Unavailable

37

PROTECT.CAP FOR LEVER PERCH'98

50302037000

$19.07

38

LEVER SCREW CPL. 125-200 '98

50302038000

$23.46

39

CLAMP WITH PIN 2000

50302030150

$33.18

40

CLAMP MIRROR WITH PIN

59002044000

Unavailable

41

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

44

FLAT HEAD SCREW DIN0965-M 4X12

0965040123

$1.49

63

CLUTCH PIPE RACING 2003

59032063100

$103.03

70

START-STOP TIP SWITCH CPL

59011074000

$62.54

70

START-STOP TIP SWITCH 2001

59011074200

$57.87

90

DECOMPR. CABLE RACING 2000

59002094000

$88.82

92

THR.CABLE''OPEN-CLOSE''KEIHIN

59002091300

$76.76
