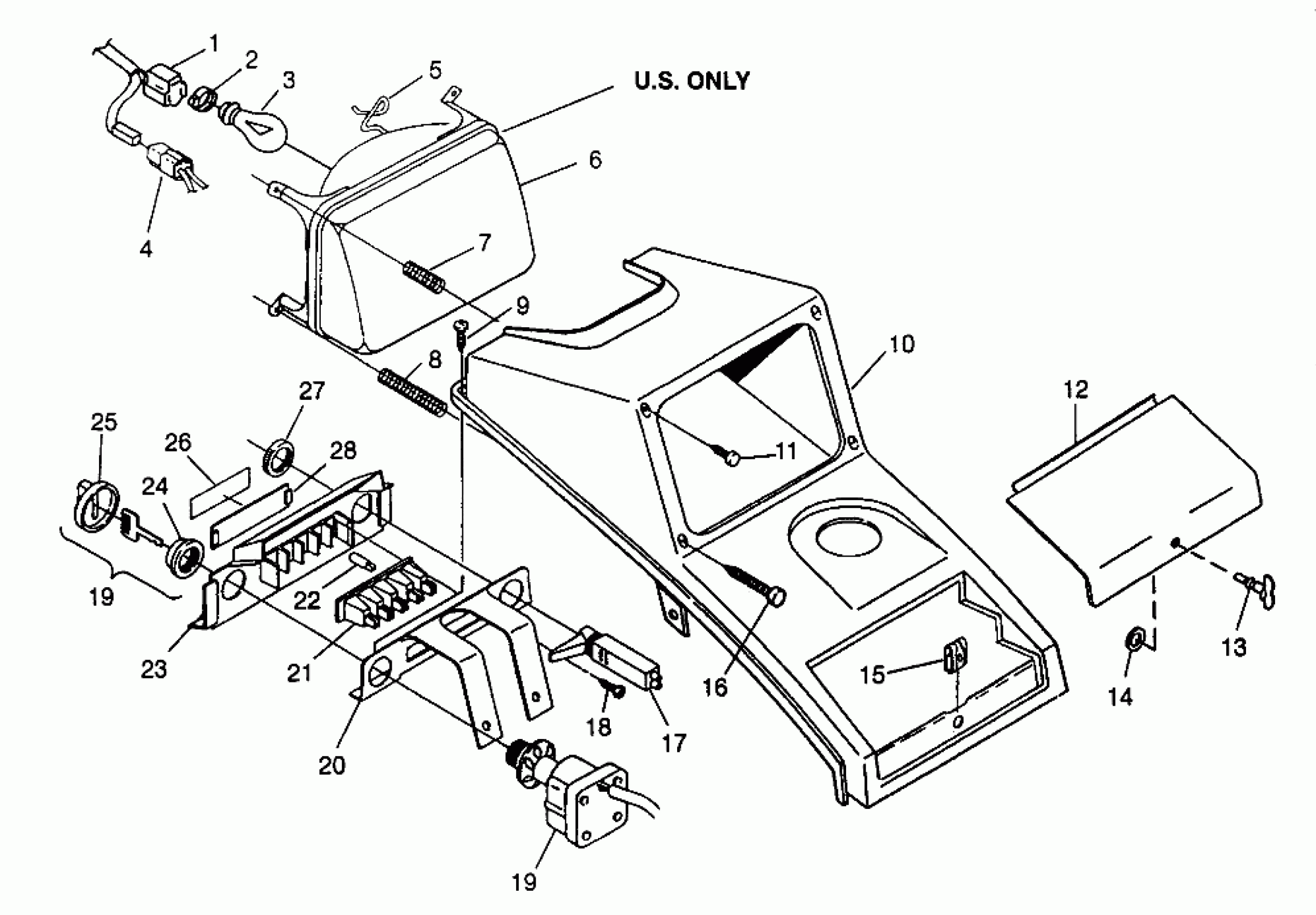

Polaris 400L 6X6 - W968740 HEADLIGHT 6X6 400L - W968740 and 6X6 400L Norwegian - N968740 (4935963596B001) Diagram

#

Description
Price

1

HARNESS, HEADLIGHT

2460424

Unavailable

2

COVER,SOCKET,H/L.

4032066

Unavailable

3

BULB, H/L

4030028

Unavailable

4

HSG,DUAL,FEMALE

4040024

$3.97

5

RETAINER,H/L BULB

4032063

Unavailable

6

H/L ASM,W/BULBSEAL

4032065

Unavailable

7

SPRING-ADJ

4032002

Unavailable

8

SPRING,ADJ.

4032041

Unavailable

9

SCREW(10)

7512017

$4.76

10

COVER,H/L,BURN.BRN.

5431202-218

Unavailable

11

SCREW, ADJ.(10)

4032003

$5.99

12

DOOR,ACCESS,BURN.BRN. (Burnish Brown)

5431201-218

Unavailable

13

FASTENER, 1/4 TURN(10)

7670064

$6.19

14

RING,SPLIT RETAINER(10)

7670065

$1.98

15

RECEPTACLE,CLIP-ON(10)

7670066

$3.81

16

SCREW,ADJUST,(ATV)(10)

4032042

Unavailable

17

KIT-CHOKE CONTROL

2200188

$28.32

17

CABLE, CHOKE

7080371

$97.13

18

SCREW, SEM(10)

7511862

Unavailable

19

SWITCH, IGNITION (See Footnote Below)

4110194

Unavailable

19

SWITCH, IGNITION (See Footnote Below)

4110194

Unavailable

20

BRKT, IGN. PANEL

5220965-067

Unavailable

21

STRIP, SOCKET

4032037

$26.98

22

BULB

4030042

$8.08

23

PANEL, IGNITION

5430995

Unavailable

24

NUT,IGN.SWITCH

5432090

Unavailable

25

COVER, KEY Substituted by 5433534

5431964

$13.75

26

DECAL, PANEL [No Longer Available]

7072528

Unavailable

27

Nut

7080229

$19.84

28

LENS ASM,PILOT LIGHT (Incl. 26) Note: Ignition key may be ordered by using the 4 digit number on the key.

2652049

Unavailable
