Partiron

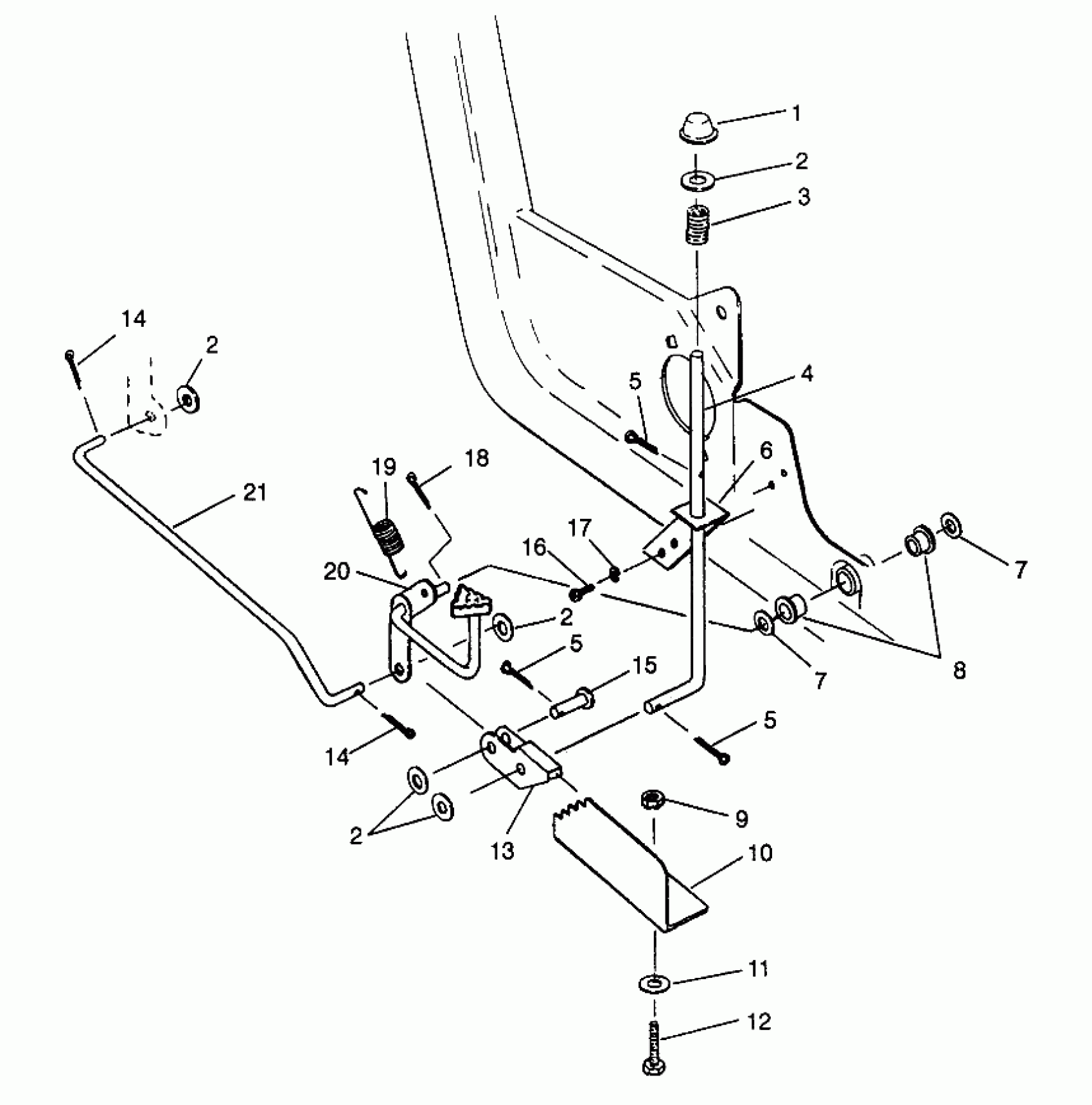

Polaris 400L 6X6 - W968740 FOOT PEDAL and PARKING BRAKE 6X6 400L NORWEGIAN N968740 (4935963596C001) Diagram

#

Description
Price

1

PIN COTTER(10)

7661203

$1.49

2

WASHER, FLAT(10)

7558201

$5.79

2

WASHER, FLAT(10)

7558201

$5.79

2

WASHER, FLAT(10)

7558201

$5.79

2

WASHER, FLAT(10)

7558201

$5.79

3

ROD, BRAKE

5224531

$51.99

4

FOOTBRAKE,BLK.

1910144-067

Unavailable

5

SPRING-EXHAUST(10)

7042029

$4.84

5

SPRING-EXHAUST(10)

7042029

$4.84

5

SPRING-EXHAUST(10)

7042029

$4.84

6

COTTER PIN(10)

7661401

$1.49

7

SCREW,(10)

7512024

$4.79

7

SCREW,(10)

7512024

$4.79

8

WASHER(10)

7555806

$1.49

9

PIN, COTTER(10)

7661010

$1.49

10

PUSHNUT, RED(10)

7670063

Unavailable

10

DESC NOT_AVAILABLE (Incl. 2, 7, 9-13, 16, 20)

1940154

Unavailable

11

SPRING

7041365

Unavailable

12

ROD,BRAKELOCK

5224548

Unavailable

13

STAND OFF

5240525

Unavailable

14

WASHER(10)

7555919

$4.99

14

WASHER(10)

7555919

$4.99

15

BUSHING-PEDAL PIVOT

5431107

$8.79

16

NUT(10)

7542124

Unavailable

17

CATCH

5240526

Unavailable

18

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

19

BOLT(10) Substituted by 7512269

7515101

Unavailable

20

FLIPPER

5240524

Unavailable

21

PIN, CLEVIS(10)

7661640

Unavailable
