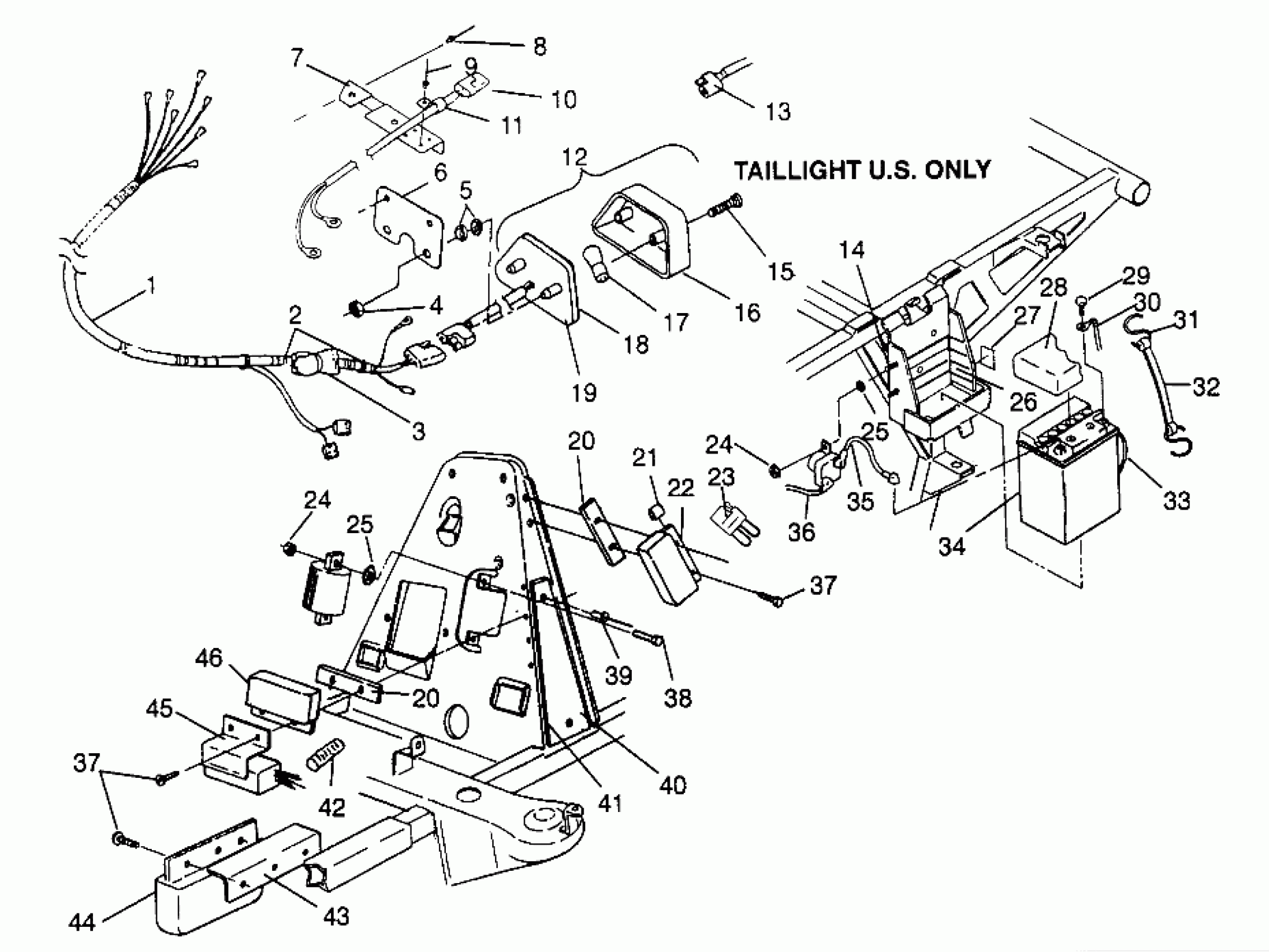

Polaris 400L 6X6 - W968740 ELECTRICAL/TAILLIGHT 6X6 400L - W968740 and 6X6 400L Norwegian - N968740 (4935963596D003) Diagram

#

Description
Price

1

HARNESS,MAIN WIRE(400 6X6)

2460563

Unavailable

2

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

3

CKT.BREAKER,20 AMP.

2434012

$38.89

4

SPEED NUT-WASHER, HEAD-1/4 (US Only)

7670054

$1.49

5

WASHER,NYLON(10) (US Only)

7555916

$1.59

6

ISOLATOR,TAILLIGHT (US Only)

5211391-067

$13.39

7

BRACKET,T/L MOUNT (US Only)

5240244-067

Unavailable

8

RIVET(50)

7621470

$3.17

10

POWERPLUG ASM,12V.

2410023

$28.95

11

CLAMP,BLK,5/16 PLASTIC(10)

7080524

Unavailable

12

TAIL LIGHT ASM. (US Only)

2432034

$55.99

13

PIGTAIL, POWER (Pigtail Power)

2460442

$12.39

14

SCREW(10)

7512027

$1.49

15

Screw, Taillight

4032029

$4.79

16

LENS,TAILLIGHT

4032046

$32.37

17

BULB,TAILLIGHT (US Only)

4030043

$6.46

18

GASKET,TAILLIGHT (US Only)

4032045

$4.03

19

BACKING,TAILLIGHT (US Only)

4032064

$83.99

20

HEAT SINK (2)

5210650

Unavailable

20

HEAT SINK (2)

5210650

Unavailable

21

TRIM,EDGE,6FT,BLACK [No Longer Available] (NOR)

5521131

$40.46

22

LIMITER,650 HZ,(RPM),(NOR) (LR-81) (NOR)

4060127

$99.19

23

HARNESS-JUMPER,LIMITER (NOR)

2460509

Unavailable

24

NUT(10)

7541925

$1.49

24

NUT(10)

7541925

$1.49

25

WASHER(10)

7571602

$4.79

25

WASHER(10)

7571602

$4.79

26

PAD-BATTERY

5810290

$7.27

27

DECAL, BATTERY [No Longer Available]

7072606

Unavailable

28

COVER,BATTERY

5431769

$14.39

29

BOLT,BATT,KIT(SHORT) (Short)

2200361

$3.99

30

CABLE,BATT/ENG.,BLK.

4010095

Unavailable

31

HOOK-BATT.H/D(10)

7010032

$1.59

32

STRAP,BATTERY HOLDDOWN

5410424

Unavailable

33

TUBE,BATTERY VENT

5432077

$8.08

34

Battery

4140006

$99.99

35

CABLE,BATT/SOLENOID,RED

4010094

Unavailable

36

CABLE,SOLENOID/STARTER

4010064

Unavailable

37

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

37

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

38

SCREW(10)

7512007

$3.99

39

RIVET, POP(50)

7621322

$0.56

40

BOARD,TERMINAL

4040056

Unavailable

41

SHIELD,TERM.BOARD

5431152

Unavailable

42

TUBING,CONVOLUTED,3/4"

8360011-15

Unavailable

43

HEATSINK RECT.

5131036

Unavailable

44

RECTIFIER,LR-37

4060133

Unavailable

45

BRKT,CDI(ATV 400)

5240428

Unavailable

46

LIMITER,RPM,350HZ. Substituted by 4060203

4060112

Unavailable
